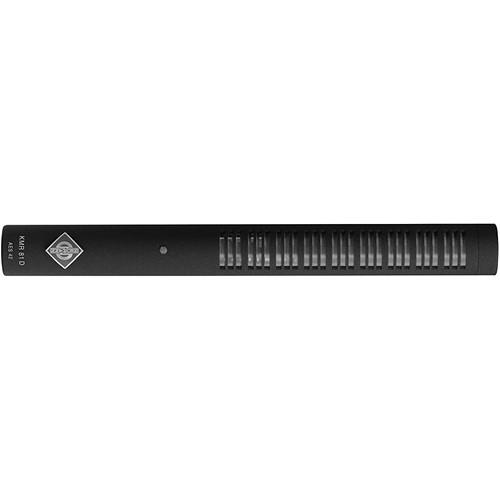

User Manual for Neumann KMR 81 D Digital Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KMR 81 D Digital Shotgun
- Product category: Shotgun Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Shotgun Microphones
|
User manual for the Neumann KMR 81 D Digital Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The KMR 81 D Digital Shotgun Microphone from Neumann is a digital version of the coveted Neumann KMR 81 i shotgun microphone. This digital counterpart to the KMR 81 i exhibits all the benefits of its lobe/supercardioid polar pattern with professional grade A/D conversion and an internal compressor / limiter to avoid digital peak clipping. The capsule features a combination of a pressure gradient transducer and an interference tube.If the wavelength of the frequency is longer than the tube length, the microphones work as pressure gradient transducers. At higher frequencies they operate as interference transducers for lateral sound. As a result all off-axis sound sources are attenuated without coloration. The KMR 81 D is well suited to record individual instruments, vocals and speech within highly ambient environment and much more. Note: This is a digital microphone and requires a converter kit (not included) for operation. - Interference tube microphone with shotgun directional characteristic
- Interference/pressure-gradient transducer
- High lateral and back attenuation
- Extensive accessories for outdoor use
- Light weight: 3.17oz (90g)
- The legendary Neumann sound in the digital realm. Pure Neumann capsule sound
- The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system
- The guarantee of having one of the best A/D converters available
- Anti-clipping processing ensures handling safety, and reduces stress
- Reduced time requirements and personnel costs, particularly due to faster post production processing
- Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van)
UPC: 615104086487 In the Box Neumann KMR 81 D Digital Shotgun Microphone WS 81 Windscreen Twist Pack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KMR 81 D Digital Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KMR 81 D Specs | | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 73 dB CCIR
85 dB A-Weighted | | Equivalent Noise Level | 21 dB CCIR
9 dB A-Weighted | | Maximum SPL | 123 dB SPL | | Pad | -6 dB
-12 dB
-18 dB | | Low-Cut Filter | @ 40 Hz
@ 80 Hz
@ 160 Hz | | Dynamic Range | 114 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 150 mA | | Operating Voltage | 7 to 10.5 V | | Length | 8.35" / 212 mm | | Diameter | 1.65" / 42 mm | | Weight | 3.17 oz / 90 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 2.7" |
