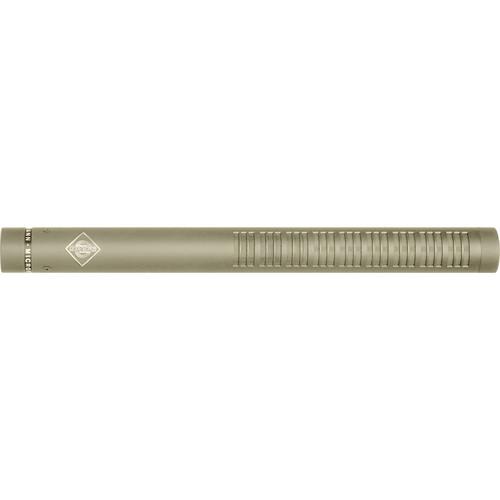

User Manual for Neumann KMR 81 i Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KMR 81 i Shotgun Microphone
- Product category: Shotgun Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Shotgun Microphones
|
User manual for the Neumann KMR 81 i Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The KMR 81 i Shotgun Microphone from Neumann uses a combination of a pressure gradient transducer and an interference tube. If the wavelength of the frequency is longer than the tube length, the microphone works as a pressure gradient transducer. At higher frequencies, it operates as an interference transducer for lateral sound. Off axis sound sources are picked up with reduced level, but without coloration. Therefore, the microphone is well suited to record individual instruments of an orchestra. The pickup areas of several shotgun microphones may even overlap as, for example, during recordings on a large stage, without causing any problem. - Interference tube microphones with shotgun directional characteristic
- Interference/pressure gradient transducer
- High lateral and back attenuation
- Switchable filter or preattenuation features
- Extensive accessories for outdoor use
UPC: 615104069619 In the Box Neumann KMR 81 i Shotgun Microphone Windscreen (WS 81) Leather Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KMR 81 i Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KMR 81 i Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB CCIR
82 dB A-Weighted | | Equivalent Noise Level | 23 dB CCIR
12 dB A-Weighted | | Maximum SPL | 128 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 18 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 0.8 mA | | Operating Voltage | 48 V ± 4 V | | Length | 9.09" / 231 mm | | Diameter | 0.83" / 21 mm | | Weight | 5.11 oz / 145 g | | | | Package Weight | 1.06 lb | | Box Dimensions (LxWxH) | 11.75 x 3.7 x 3.0" |
