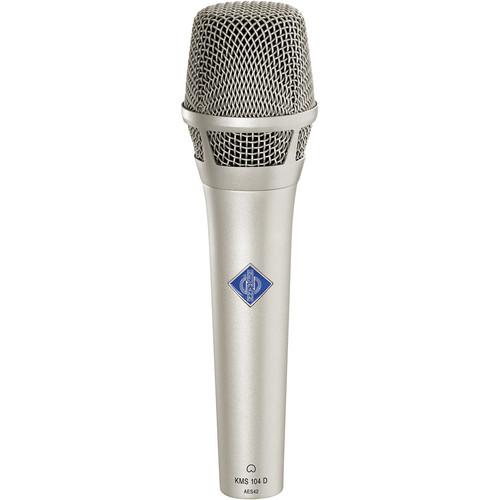

User Manual for Neumann KMS104 Plus - Handheld Stage Mic Click to enlarge the picture
Contents of the user manual for the Neumann KMS104 Plus - Handheld Stage
- Product category: Handheld Performance Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Handheld Performance Microphones
|
User manual for the Neumann KMS104 Plus - Handheld Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Neumann KMS104 Plus features an extended bass response over the standard KMS104 and is designed for crucial sound reinforcement applications. The microphone element and output electronics deliver the results needed for professional vocal capturing in concerts, presentations, broadcasts and more. The KMS104 Plus features a cardioid polar pattern that minimizes off-axis noise and feedback. High sound pressure handling eliminates noise and distortion while capturing transients and peaking signal. - Classic Neumann sound on stage
- Excellent transparency for vocals/speech
- Without off axis coloration
- Cardioid polar pattern with excellent feedback rejection
- Effective pop shielding without any side effects
- Ultra durable and sleek enclosure
In the Box Neumann KMS104 Plus - Handheld Stage Mic (Nickel) SG 105 Stand Clamp Padded Nylon Bag 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KMS104 Plus - Handheld Stage Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KMS 104 plus Specs | Transducer | DC-Polarized Pressure Gradient Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20Hz - 20kHz | | Sensitivity | at 1kHz into 1k ohm: 4.5 mV/Pa | | Impedance | 50 ohms
Rated load impedance: 1k ohms | | EIN | Equivalent noise level, CCIR: 28dB
Equivalent noise level, A-weighted: 18 dB-A | | Signal-to-Noise Ratio | Signal-to-noise ratio, CCIR (rel. 94 dB SPL): 66dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 76dB | | Maximum Input Sound Level | 150 dB, 0.5% THD
Max ouput voltage: 12dBu | | Dynamic Range | 132 dB | | Power Requirements | Phantom 48v +/-4v
Current consumption (P48, IEC 1938): 3.5 mA | | Output Connectors | 3-Pin XLR-M Type | | Dimensions | 7 x 1.8" (180 x 48mm) LxDiameter | | Weight | 10.58 oz. (300 g) |
