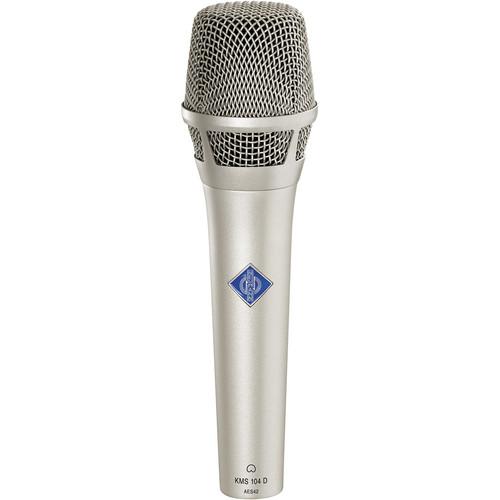

User Manual for Neumann KMS104D - Digital Handheld Stage Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KMS104D - Digital Handheld Stage
- Product category: Handheld Performance Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Handheld Performance Microphones
|
User manual for the Neumann KMS104D - Digital Handheld Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Neumann KMS104D Digital Handheld Stage Microphone is essentially the digital version of the analog KMS104. The KMS104D employs professional grade A/D converters and AES output protocol to enhance the KMS104 with even lower noise floor, greater dynamic range and resistance to RFI noise. The microphone is designed for crucial sound reinforcement applications. Its element and output electronics deliver the results needed for professional vocal capturing in concerts, presentations, broadcasts and more. The KMS104D features a cardioid polar pattern that minimizes off-axis noise and feedback. High sound pressure handling eliminates noise and distortion while capturing transients and peaking signal. Note: This is a digital microphone and requires a converter kit (not included) for operation. - Classic Neumann sound on stage
- Excellent transparency for vocals/speech
- Without off axis coloration
- Effective pop shielding without any side effects
- The legendary Neumann sound in the digital realm. Pure Neumann capsule sound
- The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system
- One of the best A/D converters available
- Anti-clipping processing ensures handling safety, and reduces stress
- Reduced time requirements and personnel costs, particularly due to faster post production processing
- Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van)
UPC: 615104086432 In the Box Neumann KMS104D - Digital Handheld Stage Microphone (Nickel) SG 105 Stand Clamp Padded Nylon Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KMS104D - Digital Handheld Stage Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KMS 104 Specs | Transducer | DC-Polarized Pressure Gradient Condenser | | Polar Pattern | Cardioid | | Preset | - Sampling rates: 48kHz
- Gain: 10 dB (variable with DMI-2) - Compressor on, Attack time 100 ms, Release time 0.5 s, Threshold -10 dBFS, Ratio 2:1 | | Frequency Response | 60Hz - 20kHz | | Sensitivity | Free-field sensitivity: -47dBFS | | EIN | CCIR: 27dB
A-weighted: 78dB | | Signal-to-Noise Ratio | CCIR: 67dB
A-weighted: 78dB | | Dynamic Range | 125dB | | Maximum Input Sound Level | at 0 dBFS: 141 dBSPL | | Remote Control | - Polar pattern
- Low-cut: flat, 40, 80, 160Hz - Pre-attenuation: 0 , -6, -12, -18 dB
- Gain: 0...63 dB in 1 dB steps, clickless - Testsignal: 1 kHz, pink noise, white noise
- Parametric compressor/limiter (incl. de-esser function) - Independent peak limiter avoiding any clipping
- Switch functions: soft muting, phase reverse, signal lights - Signal lights: red4) and blue LEDs
- System functions, firmware download | | A/D Conversion | Neumann process (patented), 28-bit internal word length | | DSP | Fixed-point, variable internal word length 28 bits to 60 bits | | Synchronization | - Asynchronous operation (free-running, AES42 - Mode 1), basic frequency accuracy: ± 25 ppm
- Synchronous operation (AES42 - Mode 2), pulling range: Min. ± 100 ppm | | Power Requirements | Power supply (phantom power complying with AES42)
Supply voltage range: +6 V to +10.5 V Current consumption: max. 150 mA | | Output Impedance | 50 Ohms | | Output Connectors | XLR3M, 24 bits as per AES/EBU (AES3) | | Dimensions (LxDiameter) | 7.08 x 1.88" (180 x 48mm) | | Weight | 10.58oz (300g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.0 x 3.3 x 3.1" |
