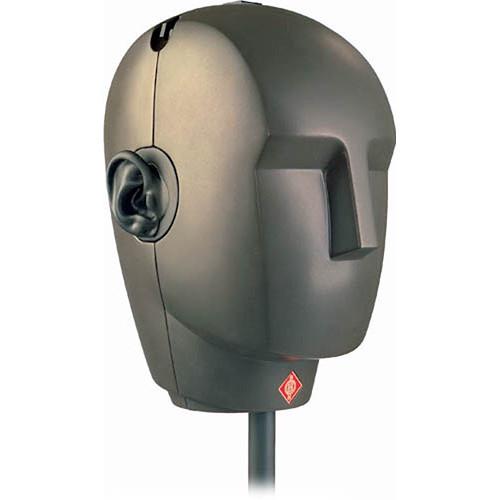

User Manual for Neumann KU 100 Dummy Head Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KU 100 Dummy Head Microphone
- Product category: Stereo & Specialty Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Stereo & Specialty Microphones
|
User manual for the Neumann KU 100 Dummy Head Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Neumann KU 100 Dummy Head system is a unique stereo microphone that resembles the human head. The design implements two condenser elements inside the ears of the head in order to replicate human hearing and achieve authentic, true-to-life stereo imagery and field perception. The KU 100 uses +48V phantom power or battery power with six 1.5V AA batteries.A balanced 5-pin XLR output connector and two unbalanced BNC output connectors are provided at the base of the head. High pass filter and 10dB Pad switches are located inside. The KU 100 Dummy Head is a unique, efficient and seemingly self-evident approach to stereo audio capturing. The system achieves great results for feature film, sound design and concerts. The microphone has also found a place as a tool for measuring noise levels in hazardous, industrial work environments. - Unique stereo microphone design resembling human head, with 2 condenser elements inside ears of dummy head to help achieve true-to-life stereo imagery and field perception
- Great results for feature film, sound design, concerts, and for measuring noise in hazardous work environments
- Balanced 5-pin XLR output connector and 2 unbalanced BNC output connectors at base of head
- High pass filter located inside
- -10dB Pad switch provides added headroom to minimizes signal-overload-based distortion and noise
- Uses +48V phantom power or battery power with six 1.5V AA batteries
UPC: 615104071322 In the Box Neumann KU 100 Dummy Head Microphone KU 100 Dummy Head IC 5 Microphone Cable AC-20 5-Pin XLR Female to 2 3-Pin XLR Male Adapter Y-Cable Plug-in Mains Unit Aluminum Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KU 100 Dummy Head Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KU 100 Specs | Transducer | Condenser Pressure Transducer | | Polar Pattern | Human Ear | | Frequency Response | 20Hz - 20kHz | | Maximum Input Sound Level | 29dB, Equivalent SPL CCIR 468-3
16dB-A, Equivalent SPL DIN/IEC 651 | | Power Requirements | 48V Phantom Power
1.5V AA Batteries x6 | | Output Impedance | Rated Impedance: 50 ohms balanced, 200 ohms unbalanced
Rated Load Impedance: 1000 ohms | | Output Connectors | Balanced XLR 5-pin
Unbalanced BNC x2 | | Dimensions (HxWxD) | 11.02 x 7.08 x 8.66" (280 x 180 x 220mm) | | Weight | 7.72 lbs (3500g) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 16.3 x 16.0 x 13.0" |
