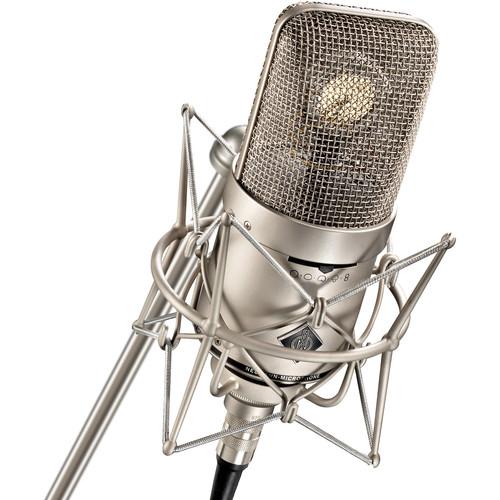

User Manual for Neumann M 149 Switchable Tube Microphone Click to enlarge the picture
Contents of the user manual for the Neumann M 149 Switchable Tube Microphone
- Product category: Tube Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Tube Microphones
|
User manual for the Neumann M 149 Switchable Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The M 149 Switchable Tube Microphone from Neumann is a variable dual-diaphragm microphone. The K 49 capsule, well known from the legendary U 47 and M 49 microphones, is followed by a tube functioning as an impedance converter. In contrast to earlier concepts utilizing a transformer, the tube is complemented with a transformerless output circuit design. The M 149 Tube can thus feed long microphone cables without any coloration. Two slide switches are located below the large, acoustically open headgrille. The switch at the front allows selection one of nine directional patterns. The slide switch at the rear operates a seven-step high pass filter, allowing very fine adjustment of the cut-off frequency. - Transformerless Tube Output Circuitry
- Transformerless output circuit, triode tube and integrated amplifier provide a signal output stage featuring very low self-noise and distortion. The final output stage is an integrated amplifier that provides a very high output signal and the frequency response curve is unaffected by high, transient signal levels resulting in warm, transparent signal reproduction.
- Exceptional Signal Reproduction
- Utilizing the legendary K 49 capsule - well known from the legendary U 47 and M 49 microphones - as well as a modern tube and high quality amplifier output stage, the M 149 Tube delivers exceptional signal character and response. A frequency response of 20 Hz to 20 kHz and SPL rating of 136 dB < 5% THD result in pristine audio reproduction at various dynamic range.
- 9 Selectable Polar Patterns
- Omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure 8 polar patterns are provided. Intermediate positions of each are located in between the pattern designations.
- Low Frequency Roll-Off Switch
- A 7-position low frequency roll-off switch is located at the rear of the microphone. It selects a high-pass filter, advancing in half-octave steps between 20 Hz and 160 Hz (-3 dB)
- Shock Mounted Capsule
- The capsule is mounted elastically inside the head to minimize structure borne noise.
- EA 170 Shock-Mount
- The elastic EA 170 microphone shock-mount is included and even further minimizes noise caused by handling.
UPC: 615104083998 In the Box Neumann M 149 Switchable Tube Microphone Attractive Microphone Case N 149 Power Supply with Plug-In Mains Unit 8-Core Microphone Connecting Cable EA 170 Full Elastic Microphone Suspension Dust Cover Protective, Wooden Storage Box for All Components Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann M 149 Switchable Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann M149 Tube Specs | | | Operating Principle | Pressure Gradient | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 66 dB CCIR
69 dB CCIR
71 dB CCIR
78 dB A-Weighted
81 dB A-Weighted
83 dB A-Weighted | | Equivalent Noise Level | 28 dB CCIR
25 dB CCIR
23 dB CCIR
16 dB A-Weighted
13 dB A-Weighted
11 dB A-Weighted | | Maximum SPL | 120 dB SPL
136 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 34 mV/Pa at 1 kHz into 1 kOhms
47 mV/Pa at 1 kHz into 1 kOhms
62 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.91" / 201 mm | | Diameter | 2.76" / 70 mm | | Weight | 25.75 oz / 730 g | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 15.9 x 13.9 x 6.6" |
