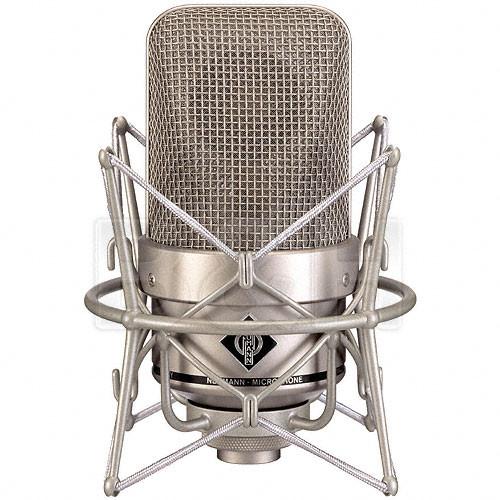

User Manual for Neumann M 150 Tube Microphone Click to enlarge the picture
Contents of the user manual for the Neumann M 150 Tube Microphone
- Product category: Tube Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Tube Microphones
|
User manual for the Neumann M 150 Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The M 150 Tube Microphone from Neumann is a modified omnidirectional, condenser tube microphone designed for vocal and general instrument recording in the studio. Designed after the classic M 50 tube microphone, the M 150 incorporates many of the features in a modern microphone. The M 150 features a transformerless tube amplifier based on the M 149. This results in warm transparent audio signal character with a very low noise floor. The titanium diaphragm of the pressure capsule is 12mm in diameter and is exceedingly thin. As requested by top engineers, the head-grille is shaped just like that on the original M 50. The directional characteristic of the M 150 is totally unique; the microphone features a true omnidirectional pattern at low frequencies and becomes more narrow with mid and upper frequencies. - A General Studio Use Reproduction of a Classic
- The Neumann M 150 Tube microphone is a specialized tube model for vocal and general instrument recording in the studio, designed after the classic M 50 tube microphone but incorporating many features of modern microphones.
- Tube Circuitry
- The M 150 tube design results in smooth warm audio character and the transformerless audio retains a high output while maintaining a low noise floor.
- Titanium Pressure Diaphragm
- The 12 mm titanium pressure diaphragm handles high sound pressure levels and provides detailed sound reproduction.
- Modified Omnidirectional
- The M 150 is a fully circular, omnidirectional microphone at lower frequencies and has a narrower pick up with mid and upper frequencies.
UPC: 615104084575 In the Box Neumann M 150 Tube Microphone (N 149) Power Supply with Plug-In Mains Unit 8-Core Microphone Connecting Cable EA 170 Full Elastic Microphone Suspension Protective Storage Case for All Components Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann M 150 Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann M150 Tube Specs | | | Operating Principle | Pressure Gradient | | Diaphragm | 0.47" / 12 mm | | Tube | Yes | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 66 dB CCIR
79 dB A-Weighted | | Equivalent Noise Level | 28 dB CCIR
15 dB A-Weighted | | Maximum SPL | 114 dB SPL
134 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.50" / 165 mm | | Diameter | 3.07" / 78 mm | | Weight | 28.22 oz / 800 g |
