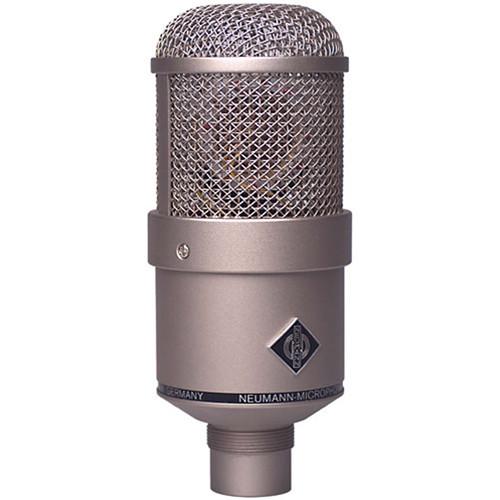

User Manual for Neumann M147 Tube Microphone Click to enlarge the picture
Contents of the user manual for the Neumann M147 Tube Microphone
- Product category: Tube Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Tube Microphones
|
User manual for the Neumann M147 Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal. The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 984.3' in length without signal degradation. The side address capsule features a cardioid polar pattern, which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper mid-range, and a boost of up to 3 dB above 2 kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments. - Tube Circuitry
- The M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid-state circuitry.
- K 47/49 Dual Diaphragm
- Featuring the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.
- Quality Output Circuitry
- The Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 984.3' in length without degradation in signal.
- Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.
- N 149 A Power Supply
- The Neumann N 149 A power supply effectively powers the microphone and is compatible with both the M 149 and 147 microphones.
UPC: 615104084346 In the Box Neumann M147 Tube Microphone Swivel Stand Mount Universal Power Supply Cable Aluminum Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann M147 Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann M147 Tube Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB CCIR
82 dB A-Weighted | | Equivalent Noise Level | 24 dB CCIR
12 dB A-Weighted | | Maximum SPL | 114 dB SPL
134 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 5.59" / 142 mm | | Diameter | 2.24" / 57 mm | | Weight | 16.23 oz / 460 g | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 16.0 x 14.1 x 6.0" |
