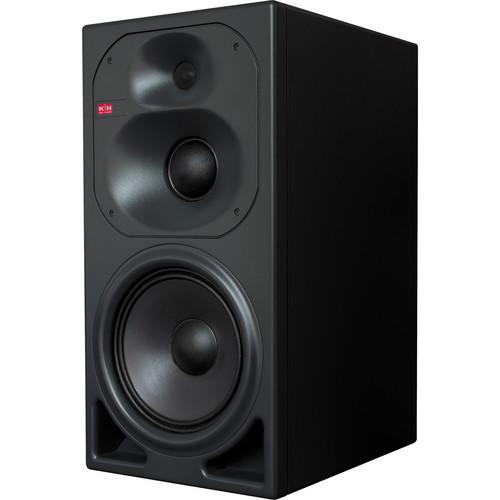

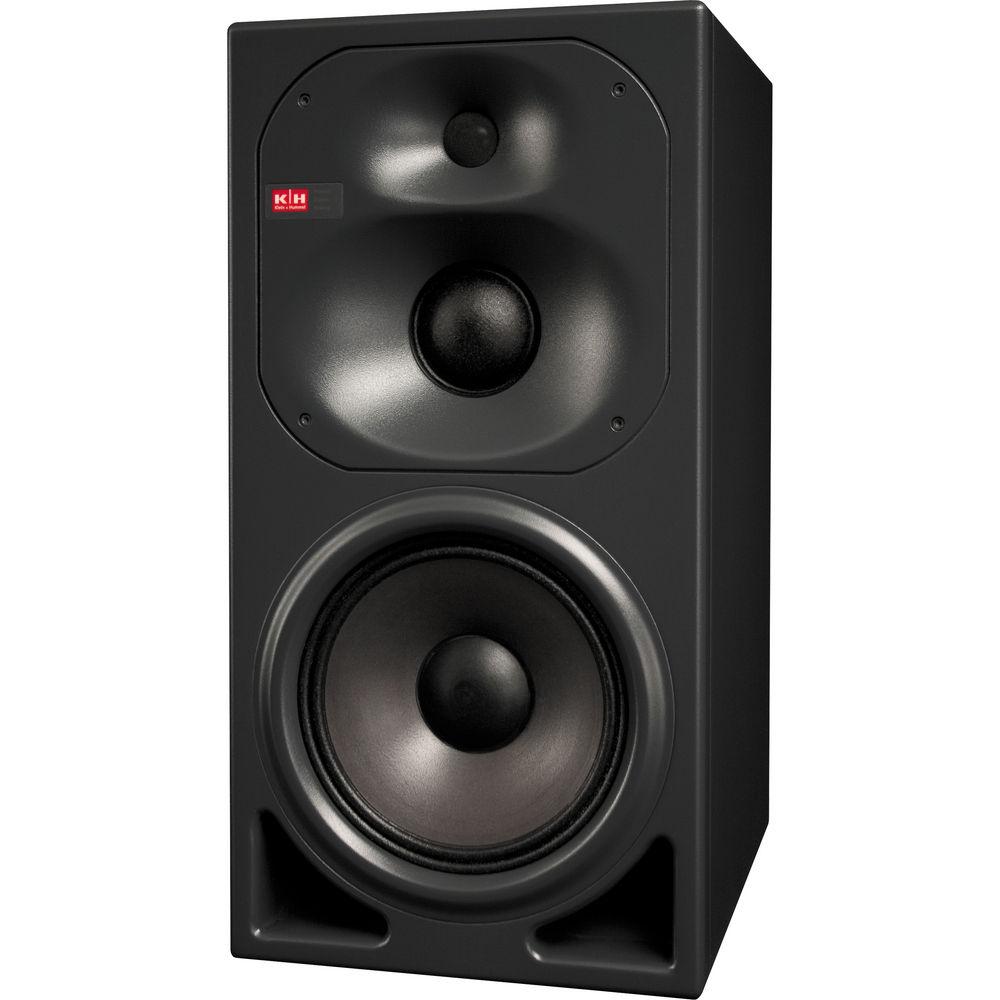

Product description The Neumann O 410 Tri-Amped Active Studio Monitor is a three-way studio monitor that features Neumann's proprietary Mathematically Modeled Dispersion, or MMD, Waveguide, which controls wave dispersion. The Waveguide was first designed mathematically, then physically built and tested under anechoic conditions to verify theoretical performance. By controlling the directivity of the waves, the O 410's Waveguard decreases early reflections and widens the useable listening area. This widens what many audio engineers refer to as the sweet spot, or place in front of your monitors where the speaker output is most optimal. The Waveguard houses both the midrange and treble drivers, and can be rotated to allow for horizontal or vertical mounting of the O 410.
Designed to be able to compensate for different environments, the O 410 features bass, mid, and treble control knobs as well as a low end parametric EQ to tweak 20Hz to 200Hz. These EQ options allow you to tune the speakers to compensate for the acoustics of your room.
The O 410 houses a one-inch titanium/fabric dome tweeter, a three-inch soft dome midrange driver, and a ten inch woofer. - Extremely low harmonic and intermodulation distortion results in clean sounding audio reproduction
- Structural resonances avoided using LRIM, or Low Resonance Integral Molding
- Wide horizontal directivity gives increased freedom of movement along the mixing console while narrow vertical directivity reduces the effect of early reflections off the console surface
- The Mathematically Modeled Dispersion Waveguide can be rotated to accommodate horizontal or vertical mounting
- Transformer balanced input stage (TIM 1) is equipped with a special distortion reduction crossover function
- Electronics can be remotely accessed when the cabinet is flush mounted with accessories
- Integrated electronic limiter for each driver
- Active three-way crossover with 24 dB/octave slopes
- Display for power on and protect is integrated into the MMD, together with a logo with a dimmer knob
- Accelerated Heat Tunneling ensures effective amplifier cooling whether the cabinet is mounted vertically or horizontally
- Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)
- Optional 24-bit, 192 kHz digital input stage available
- Design results in low self-generated noise
In the Box Neumann O 410 Tri-Amped Active Studio Monitor Power Cable Trimmer and Switch Screwdriver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann O 410 Tri-Amped Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann O 410 Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 3" / 76 mm Cone
LF Driver: 1 x 10" / 265 mm Woofer | | Amplification | HF Amplifier: Rated at 180 W / 210 W Peak
MF Amplifier: Rated at 160 W / 190 W Peak
LF Amplifier: Rated at 340 W / 400 W Peak | | | | Frequency Range | 30 Hz to 24 kHz ± 3 dB (at -3 dB) | | Frequency Response | 32 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 121.8 dB | | Total Harmonic Distortion (THD) | 0.1% | | Maximum Input Level | +19 dBu | | Analog Input Sensitivity/Gain | +6 to -9 dB (Continuously Variable) | | Self-Generated Noise | Less Than 25 dBA (at 3.93" / 10 cm) | | Protections and Limiting | 3-Way Limiter | | CMRR | 60 dB | | | | EQ | 1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1 x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1 x HF Shelf: -2 to +1 dB (1 dB Increments) | | Filters | High-Pass at 15 Hz, 12 dB/Octave Slope | | Parametric EQ | -12 to +4 dB Between 20Hz and 200Hz, Q: 1 to 8 | | | | Crossover Frequency | Low-Pass Frequency: 600 Hz, 24 dB/Octave Slope

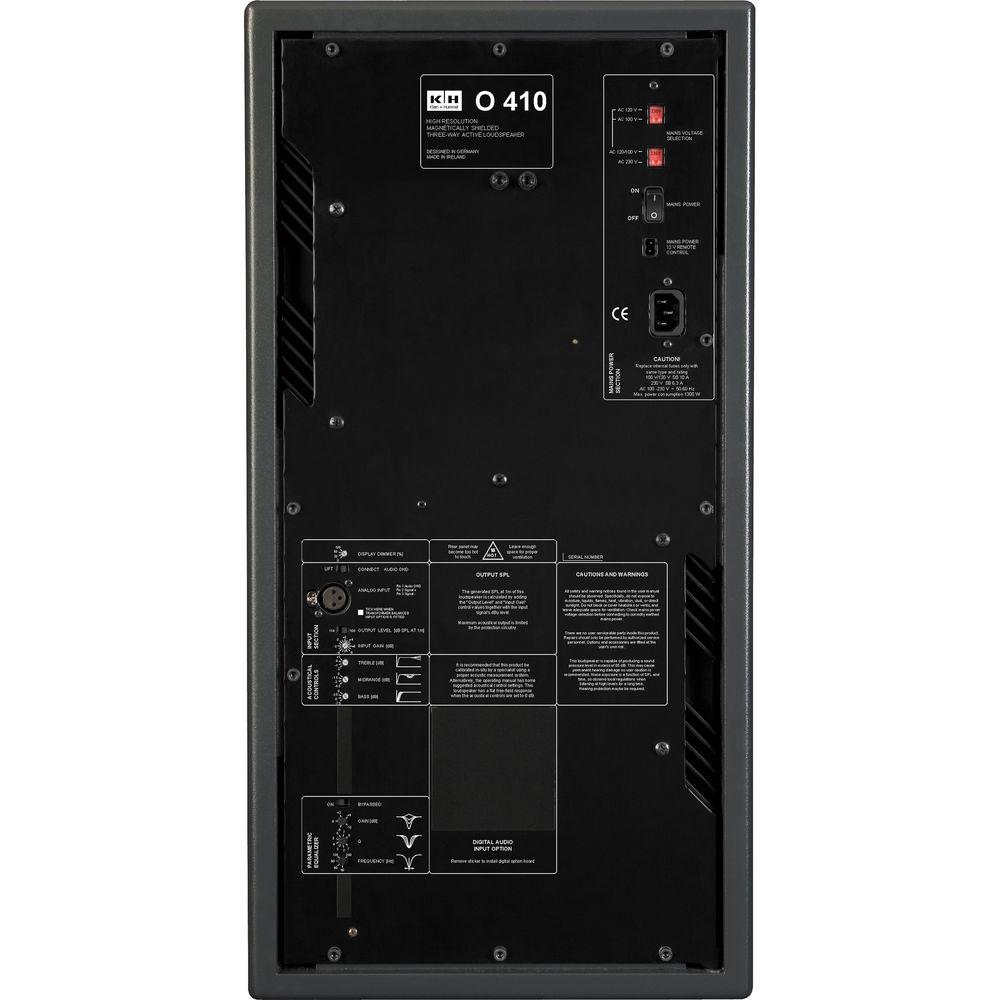

High-Pass Frequency: 2 kHz, 24 dB/Octave Slope | | | | I/O | 1 x 3-Pin XLR Analog Input (13 kOhms) Electrical Symmetric: 13 kOhms / Balanced Floating: 4.7 kOhms | | | | AC Input Power | 100 VAC at 50/60 Hz
120 VAC at 60 Hz
230 VAC at 50 Hz Voltage is Selectable | | Power Consumption | 36 W (Idle)
1300 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | | | Mounting Points | 8 x M5 (Rear Panel) | | Dimensions (W x H x D) | 13.0 x 25.0 x 18.0" / 33.0 x 65.0 x 44.0 cm | | Weight | 79.0 lb / 36.0 kg |
