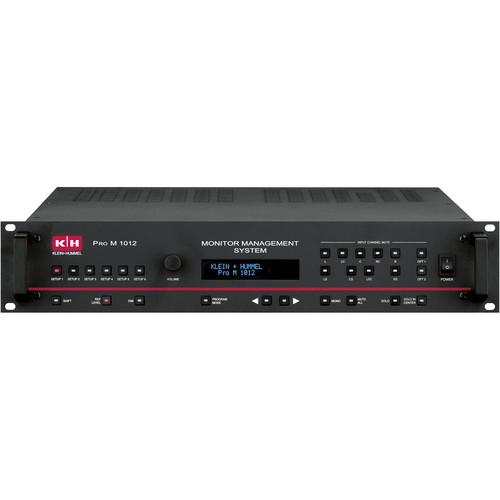

Product description The Neumann Pro M 1012 Monitor Management System is a completely configurable surround multi-channel pre-amp system providing the highest quality analog sound technology. Developed for maximum requirements in all surround and other loudspeaker configurations, it features a powerful routing matrix and a multi-purpose bass-management system, allowing any combination of configurations with 10 inputs and 12 outputs.
The Pro M 1012 is a fully configurable control monitor with good audio performance, which can be adapted for use in all imaginable loudspeaker configurations.
- Completely configurable surround multi-channel pre-amp analog management system. Powerful routing matrix and bass-management system
- Any combination of configuration can be made with the 10 inputs and 12 outputs
- Any surround system and other loudspeaker configurations
- Bass management with 24 dB crossover and phase adjustment for each channel
- Comfortable Mute/Solo control feature allowing Solo in Center and Solo in Place
- Surround Control and Bass Management
-
- All setups and configurations are possible between the loudspeakers, subwoofers, surround and ancillary speakers - Up to 7.1 with additional near-field systems, switchable between different surround setups (e.g. cinema or music)
- Rerouting of bass signals, e.g. small rear monitor, smaller center speaker, etc. to subwoofers or front L/R loudspeakers
- Individual HP/LP frequencies for subwoofer/satellite use, individually controllable for each channel
- Fully variable bass routing is configurable for each channel - Bass routing to up to four different subwoofers
- Bass redirection to any other channel, e.g. low frequency part from rear to front
- Fully variable LFE routing, e.g. to subwoofer or LFE redirection to satellite
- 4-step phase adjustment from 0 to 180° for accurate alignment of subwoofer to the main loudspeakers
- Down mixes are freely configurable, e.g. 7.1 to 5.1, 5.1 to LCRS, 7.1 to mono, etc.
- Total configurability of all functions allows wide variety of applications

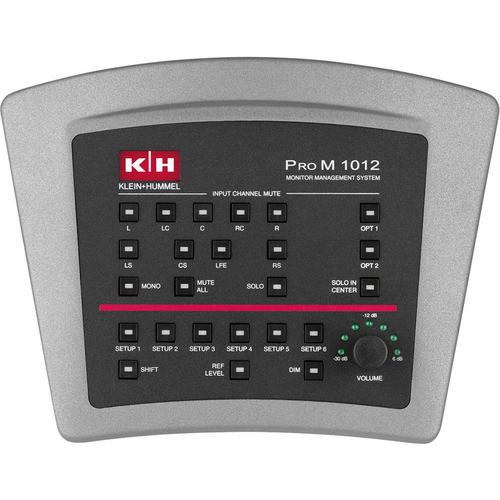

- Mute/Solo Control
-
- Muting of individual channels as well as All Mute
- Solo- and Solo-in-Center function
- Volume Control
-
- Volume control for all 12 outputs
- Latest MDAC technology instead of performance-inhibiting VCAs
- User definable LFE channel gain
- All monitor output levels adjustable in 0.5 dB steps
- Upgradeable with Extension Modules
- HP and LP module with 24 dB/oct crossover and switchable corner frequencies
In the Box Neumann Pro M 1012 Monitor Management System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann Pro M 1012 Monitor Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

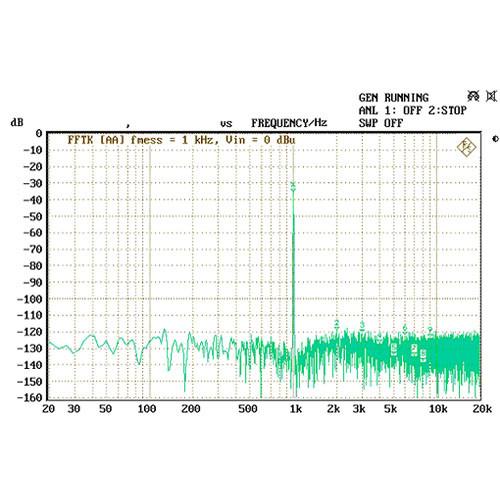

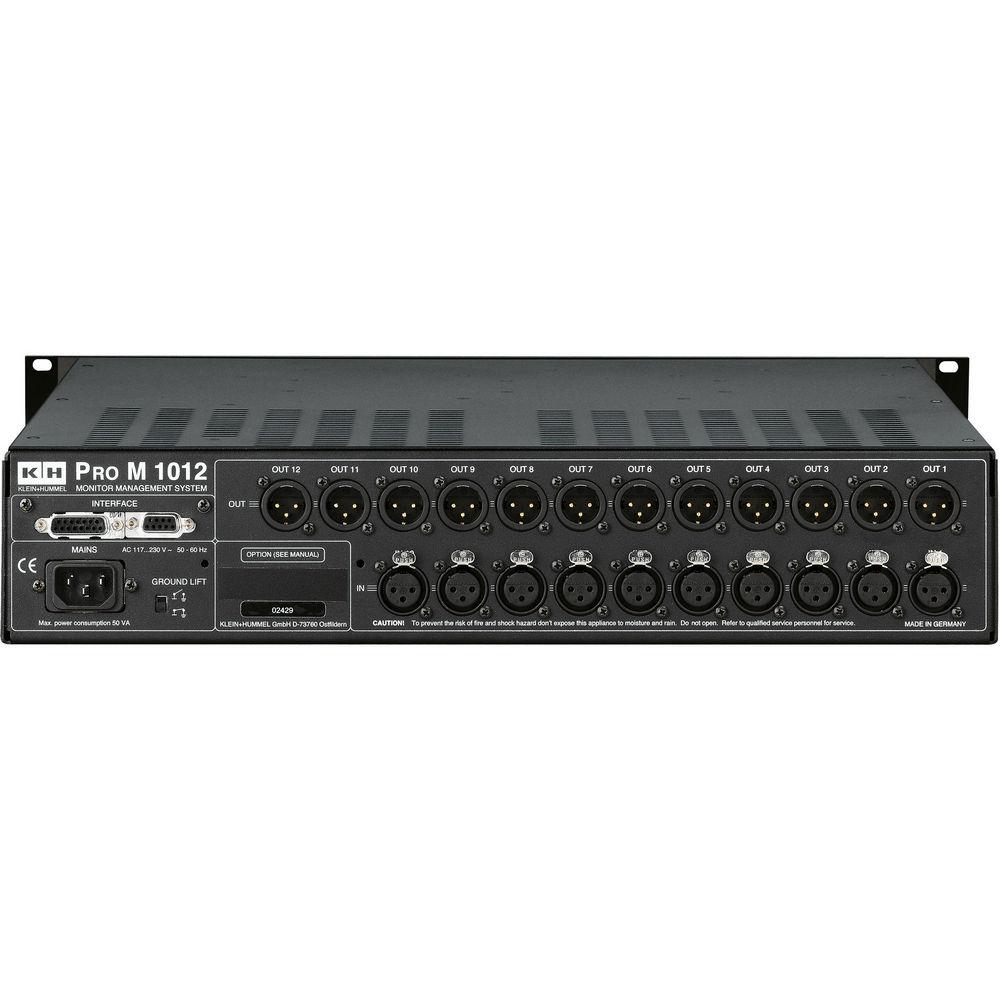

Technical parametersNeumann 501439 Specs | | | Input | 10x XLR-F, balanced | | Impedance | 14 kΩ | | Maximum Input Level | 22 dBu | | Output | 12x XLR-M, balanced | | Impedance | <70 Ω | | Add-Ons | D-Sub 25 (8-channel input, balance) | | | | Parameters | Variation: Incremental encoder | | Function Keys | 27x pushbuttons, illuminated | | Power | Rocker switch | | | | Frequency Response | 10 Hz to 60 kHz @ ±0.1 dB | | THD | 0.003%
Ref. 1 kHz @ 0 dBu | | THD + N | 0.002%

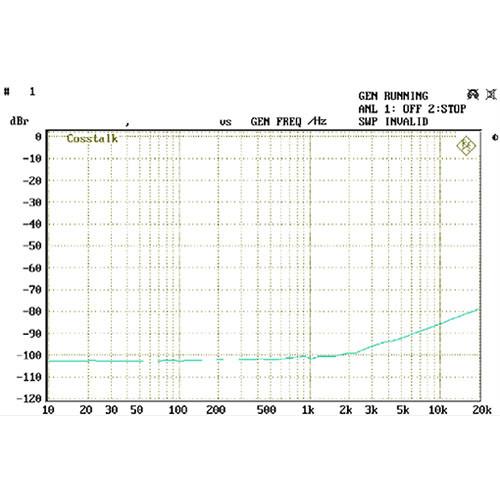

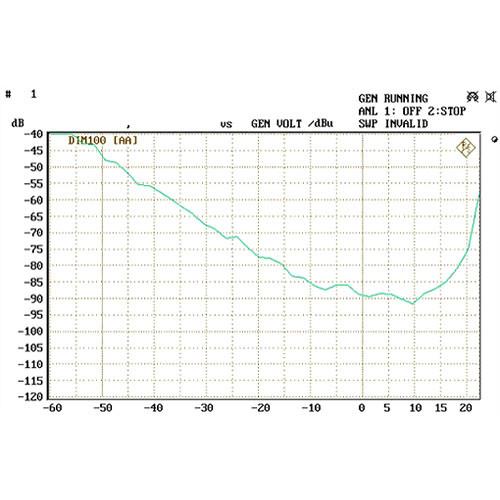

Ref. 1 kHz @ 0 dBu | | DIM 100 | 0.003% @ 0 dBu, +4 dBu | | CMRR | >75 dB (ref. 20 Hz to 20 kHz) | | Crosstalk | >100 dB @ 1 kHz | | Noise | - 93 dBu, unweighted, ref. 20 Hz to 20 kHz | | Power Supply | 120 VAC + 15 % | | Power Consumption | Maximum 50 VA | | | | Dimensions (H x W x D) | 3.5 x 19.0 x 14.2", 15.9" over all (88.0 x 483.0 x 360.0 mm , 405.0 mm over all) | | Weight | 15.4 lb (7.0 kg) |
