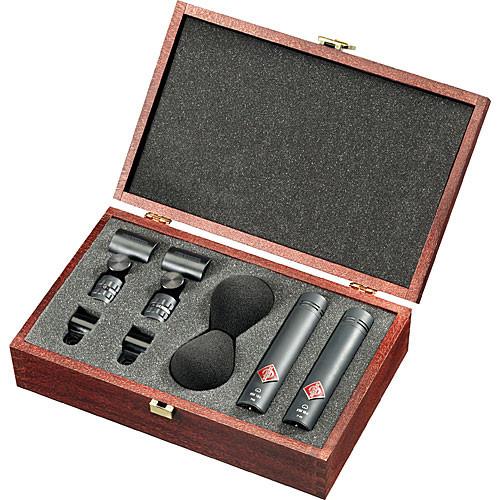

User Manual for Neumann SKM 185 NI Stereo Matched Microphone Pair Click to enlarge the picture
Contents of the user manual for the Neumann SKM 185 NI Stereo Matched
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann SKM 185 NI Stereo Matched contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The nickel SKM 185 NI Stereo Matched Microphone Pair from Neumann is a kit containing a stereo matched pair of the KM 185 microphones, a hypercardioid pattern, pressure gradient condenser microphone intended for live sound reinforcement and broadcast as well as recording applications. The KM 180 series microphones feature an output stage based on the KM 100. Transformerless circuitry and balanced output result in high output gain with a very low noise floor and no coloration to the output signal. The KM 185 is powered via +48V phantom power. The stereo pair is matched in sensitivity and frequency response and provides optimum results when capturing performances or ambiance. Its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 185 provides attenuation at the off-axis sections of the mic, and is suitable for X,Y and ORTF stereo miking, announcer's mic for broadcast, spot capturing of drum overheads, strings, wind instruments, percussion, piano, and amp cabinets. The KM 185 handles sound pressure levels up to 142 dB, allowing close miking of instruments high in transient (peak) level response. - Hypercardioid Polar Pattern
- The KM 185's hypercardioid polar pattern offers greater attenuation at the off-axis sections of the microphone, resulting in a tighter pattern with even less noise caused by ambiance.
- KM 100 Based Output Stage
- The KM 185 features the same output stage electronics as the KM 100. Transformerless circuitry and quiet balanced output design ensure a clean, high-gain output signal without any coloration. The KM 185 is powered via +48V phantom power, and its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 185 can handle sound pressure levels up to 142 dB, allowing fairly close miking of instruments.
- Compact Rugged Construction
- The slim design and rugged construction allow easy microphone placement while remaining road worthy.
UPC: 615104085268 In the Box Neumann SKM 185 NI Stereo Matched Microphone Pair (Nickel) 2 x KM 185 NI Microphone (Nickel) zexqaxfwedys 2 x WNS100 Windscreen 45mm (Black) 2 x SG21/17MT Swivel Mount with Clamp for 21mm Mics Wooden Jeweler's Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann SKM 185 NI Stereo Matched Microphone Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann SKM185NI Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB CCIR
79 dB A-Weighted | | Equivalent Noise Level | 24 dB CCIR
15 dB A-Weighted | | Maximum SPL | 142 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 10 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 4.21" / 107 mm | | Diameter | 0.87" / 22 mm | | Weight | 2.82 oz / 80 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.9 x 6.3 x 2.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
