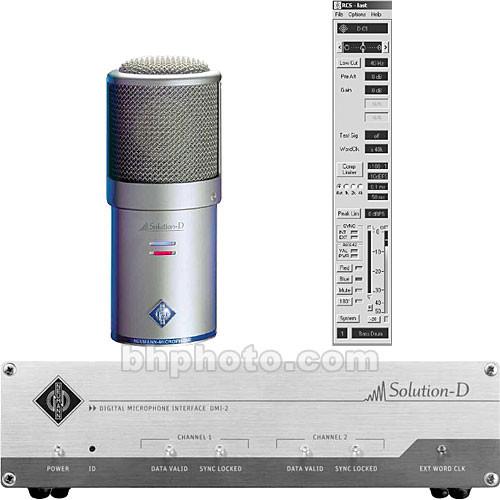

Product description The Solution-D Large-Diaphragm Studio Microphone Set from Neumann consists of the D-01 microphone, DMI-2 interface, and RCS remote control software. The microphone and interface are connected via 3-pin XLR AES/EBU digital cable. A USB output on the interface enables direct integration with Windows and Mac based computers. Internal DSP processing allows standard parameters such as polar-pattern selection, low frequency roll-off, and pre-attenuation settings to be selected via software.
A transient limiter eliminates transient peaks at the source, thereby reducing noise and distortion. The Solution-D boasts an impressive 130 dB of dynamic range due to its high quality A/D converter. - High Quality A/D Converter
- High grade A/D converter provides impressive dynamic range and supports up to 24-bit 96 kHz resolution.
- Software Based Remote Control
- The included RCS (Remote Control Software) provides complete control over the microphone's parameters via Windows or Mac based formats.
- DMI-2 Interface
- The DMI-2 features the USB I/O as well as Word Clock (BNC) connections and a 9-pin D-sub auxiliary user port.
- Internal DSP Processing
- Internal signal processing includes low frequency roll-off, preattenuation and polar pattern control.
- 15 Switchable Polar Patterns
- 15 variations of Omnidirectional, cardioid and figure 8 patterns are available.
UPC: 615104084780 In the Box Neumann Solution-D Large-Diaphragm Studio Microphone Set D-01 Digital Studio Microphone DMI-2 Portable Digital Microphone Interface RCS Software EA 2 Elastic Suspension (Nickel) USB 485 Converter USB Cable RJ45 Patch Cable BNC Cable (Word Clock) IC3 (AES/EBU) 3-pin XLR Cable AC Line Cable Storage Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann Solution-D Large-Diaphragm Studio Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann D-01 Specs | | | Diaphragm | 1.30" / 33 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB CCIR
86 dB A-Weighted | | Maximum SPL | 138 dB SPL | | Pad | -6 dB
-12 dB
-18 dB | | Dynamic Range | 130 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 220 mA | | Operating Voltage | 6 to 10.5 V | | Length | 7.28" / 185 mm | | Diameter | 2.50" / 63.5 mm | | Weight | 1.54 lb / 700 g |
