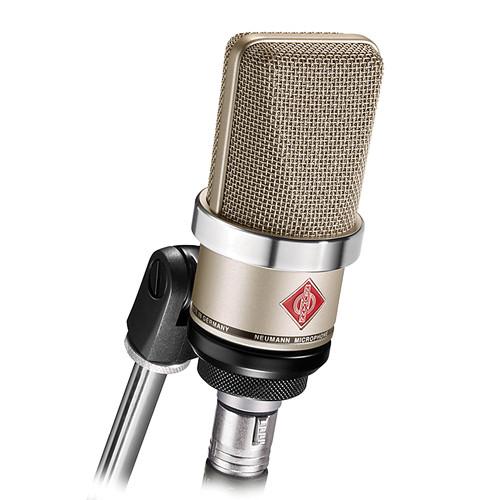

User Manual for Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
|
User manual for the Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description - Nevio Passaro about the TLM 102
Styled in a nickel finish, TLM-102 Large-Diaphragm Studio Condenser Microphone from Neumann is a large diaphragm condenser microphone operating in a cardioid polar pattern. It has the ability to withstand very high sound pressure levels.
The capsule, with its high SPL rating, permits the recording of percussion, drums, amplifiers, and other very loud sound sources. The microphone is equally capable when recording lower volume sounds due to its very fast transient response. However, its most important applications are in the realm of vocals and speech.
A slight boost above 6 kHz provides great vocal presence, while below 6 kHz the frequency response is extremely linear for minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for minimizing structure-borne noise, while an integrated pop screen in the grille aids in suppressing plosives in vocal and speech recording. - Large-diaphragm microphone with cardioid directional characteristic
- Pressure-gradient transducer
- Compact, smaller-scale body
- Very high maximum sound pressure level (SPL)
- Slight presence boost above 6 kHz
- Transformerless circuitry
UPC: 615104086265 In the Box Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone (Nickel) Stand Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann TLM-102 Large-Diaphragm Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann TLM 102 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 73 dB CCIR
82 dB A-Weighted | | Equivalent Noise Level | 21 dB CCIR
12 dB A-Weighted | | Maximum SPL | 144 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 11 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 µA | | Operating Voltage | 48 V ± 4 V | | Length | 4.57" / 116 mm | | Diameter | 2.05" / 52 mm | | Weight | 0.46 lb / 210 g | | | | Package Weight | 1.075 lb | | Box Dimensions (LxWxH) | 9.95 x 4.35 x 2.85" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
