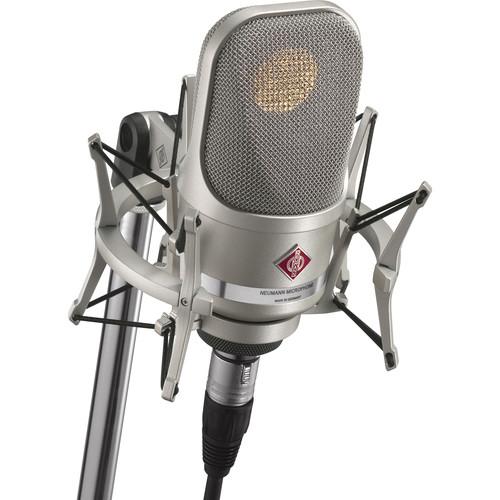

Product description Styled in nickel, The Neumann TLM 107 Studio Set provides you with a Neumann TLM 107 microphone, a stand mount, a wooden box, and an EA 4 Elastic Suspension Shockmount to isolate the mic from stand-associated rumble. The microphone provides five polar patterns, transformerless circuitry, two selectable high-pass filters, two selectable pads, and more. The Elastic Suspension Shockmount provides a 5-8"-27 female thread and a thread adapter for 1/2"-3/8" stands. - TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone (Nickel) The nickel Neumann TLM 107 is a high-quality, flexible large diaphragm condenser microphone with five selectable polar patterns that is designed to accommodate a wide variety of professional studio, broadcast and demanding home recording applications.

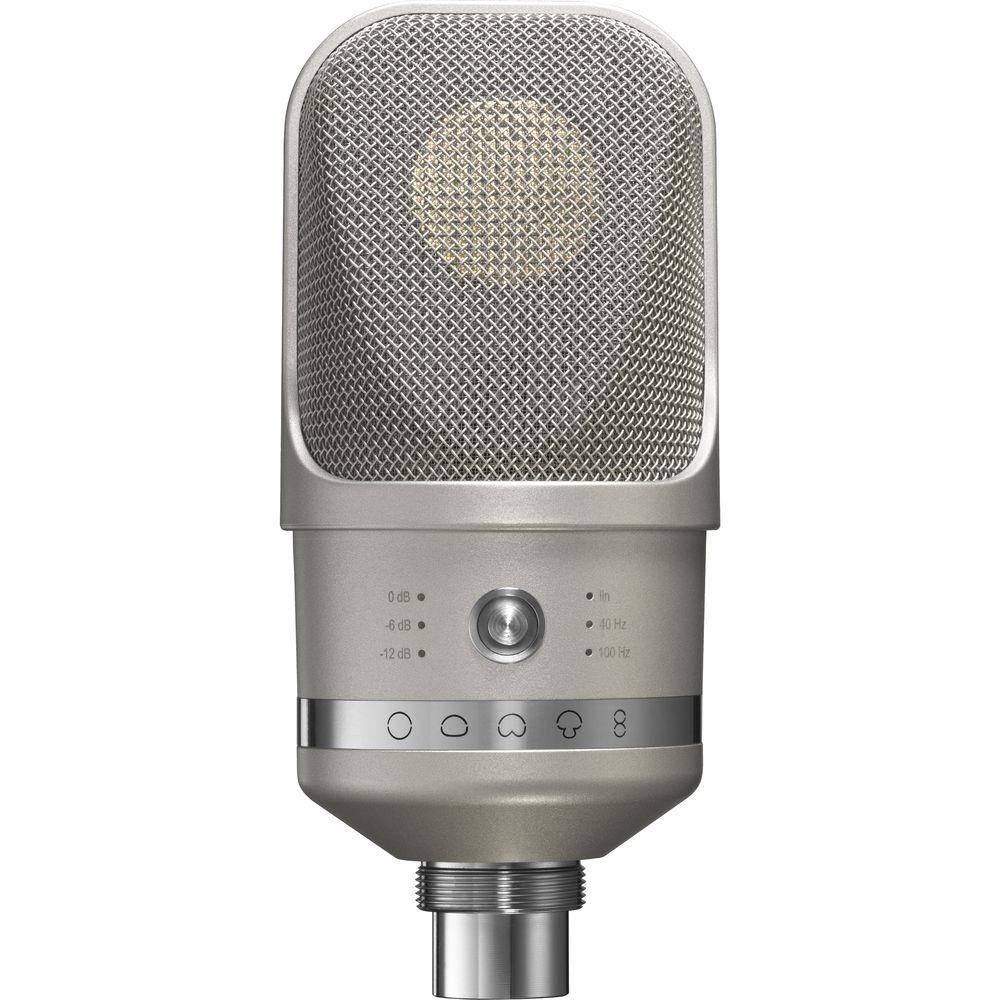

The TLM 107 is engineered with a transformerless design that permits a high degree of linearity and a large dynamic range. Featuring selectable omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure-8 polar patterns, this microphone is suitable for a wide range of miking techniques and configurations.
The mic also features -6dB and -12dB pads that can be engaged for recording louder sound sources such as brass or guitar amplifiers. Additionally, it has selectable high-pass filters at both 40 Hz and 100 Hz for filtering out unwanted low frequencies to save you time when mixing. - Low self-noise of 10 dB-A
- Maximum sound pressure level of 141 dB SPL, can be increased to 153 dB SPL with pad

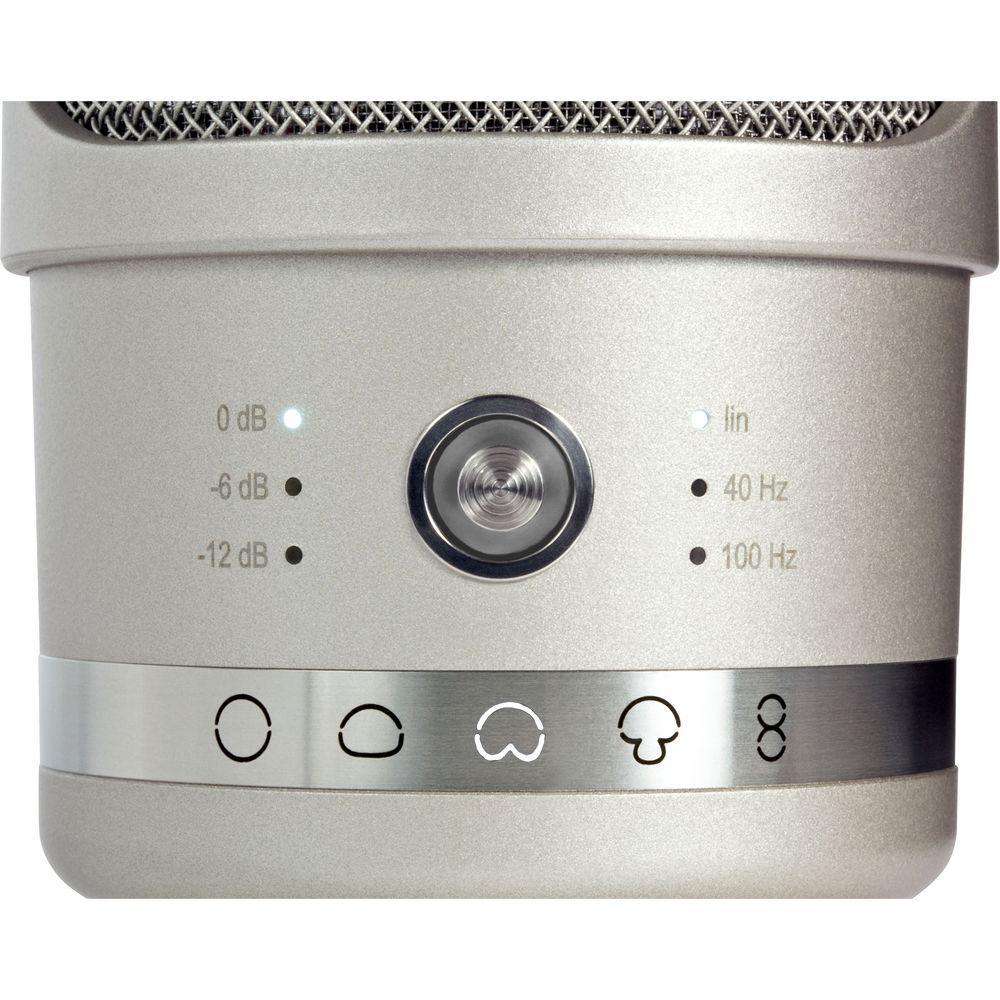

- Low cut and pad are controlled via navigation
- Pad and low cut status displayed by LED
- Illuminated polar pattern display
- Indicator light displays are turned off automatically after 15 seconds
UPC: 615104086661 - EA 4 Elastic Suspension Shockmount (Nickel) The nickel EA 4 Elastic Suspension Shockmount from Neumann has a swivel mount with a 5/8"-27 female thread, plus a thread adapter to connect to 1/2"- and 3/8" stands. It is compatible with the Neumann TLM 102 and Sennheiser MK4 microphones. UPC: 615104086418

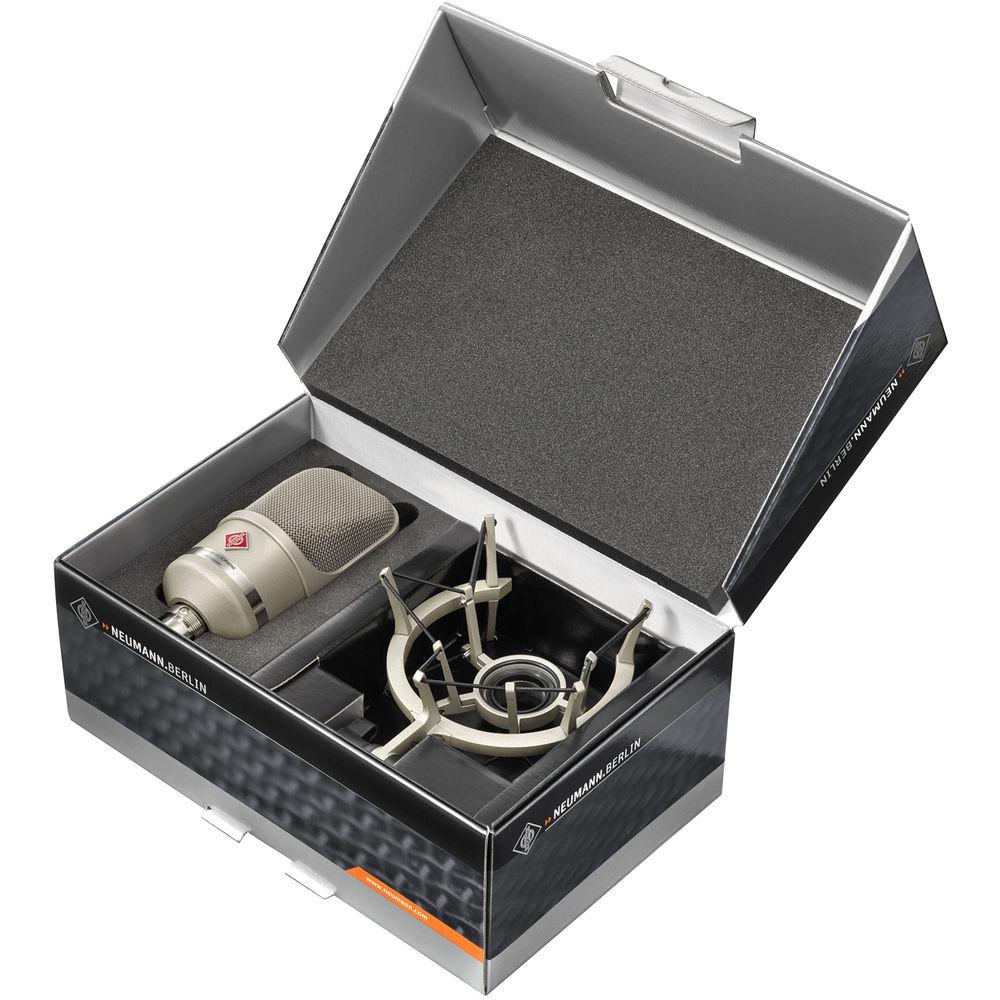

In the Box Bundle Items TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone (Nickel) arzvtqvxbzwayyxdvtwed EA 4 Elastic Suspension Shockmount (Nickel) - Thread Adapter for 1/2"- and 3/8" Stands
Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone (Nickel)
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 72 dB CCIR
84 dB A-Weighted | | Equivalent Noise Level | 22 dB CCIR
10 dB A-Weighted | | Maximum SPL | 141 dB SPL | | Pad | -6 dB
-12 dB | | THD | < 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 11 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.71" / 145 mm | | Diameter | 2.52" / 64 mm | | Weight | 15.70 oz / 445 g | | | | Box Dimensions (LxWxH) | 10.4 x 5.0 x 3.9" | - EA 4 Elastic Suspension Shockmount (Nickel)
| | | Box Dimensions (LxWxH) | 7.15 x 6.4 x 4.1" |
