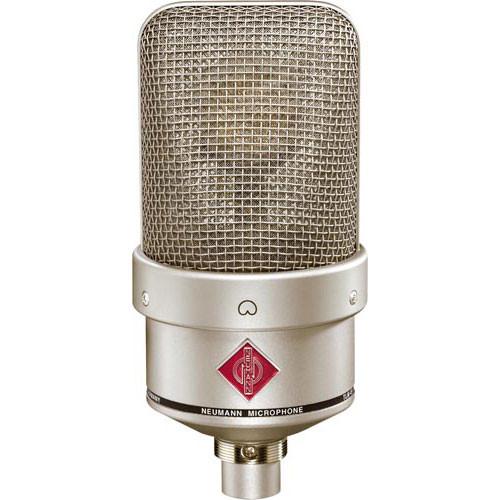

User Manual for Neumann TLM 49 Cardioid Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Neumann TLM 49 Cardioid Studio Condenser
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
|
User manual for the Neumann TLM 49 Cardioid Studio Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The TLM 49 Cardioid Studio Condenser Microphone from Neumann is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound, optimized for vocal performance. It is supplied as a set, with an elastic suspension. The design is inspired by the Neumann M 49 and M 50 microphones of the 1950s. The "sound design" is also oriented toward that of the M 49 and the U 47. This microphone ensures low self-noise and the use of high gain levels.
The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the capsule construction. Following the example of the M 49, high frequencies are more directional. The capsule diameter is 34mm. The capsule is oriented so that the microphone is addressed from the front.
The TLM 49 uses the K 47 capsule, which was also used in the M 49 and the U 47. The capsule has a linear frequency response up to the upper mid-range. Above 2 kHz there is a gentle presence boost up to 3 dB. The capsule is enclosed by a large microphone head grille, which is acoustically very open and is neutral with regard to the sound.
With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal. Noise signals which affect the balanced modulation line are effectively suppressed. The microphone can operate at sound pressure levels of up to 129 dB without distortion, and provides a dynamic range of 117 dB (A-weighted).
The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise. In addition, the capsule is mounted with a rubber shock mount. Due to the wide frequency response, the TLM 49 can also transmit low-frequency signals without coloration. The TLM 49 is supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise. - Sound profile optimized for vocal performance
- Pressure gradient transducer with the large-diaphragm capsule of the Neumann U 47
- Transformerless output circuitry
- Acoustically very open wire mesh head grille
UPC: 615104085503 In the Box Neumann TLM 49 Cardioid Studio Condenser Microphone Elastic Band for EA3 Shockmount (Light Gray) sfwfbrvezsxezazvtwtzczzsrqrxusxx Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann TLM 49 Cardioid Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann TLM 49 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB CCIR
82 dB A-Weighted | | Equivalent Noise Level | 23 dB CCIR
12 dB A-Weighted | | Maximum SPL | 110 dB SPL
129 dB SPL | | THD | < 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 13 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.2 µA | | Operating Voltage | 48 V ± 4 V | | Length | 6.50" / 165 mm | | Diameter | 3.07" / 78 mm | | Weight | 1.82 lb / 825 g | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 7.7 x 6.6 x 5.1" |
