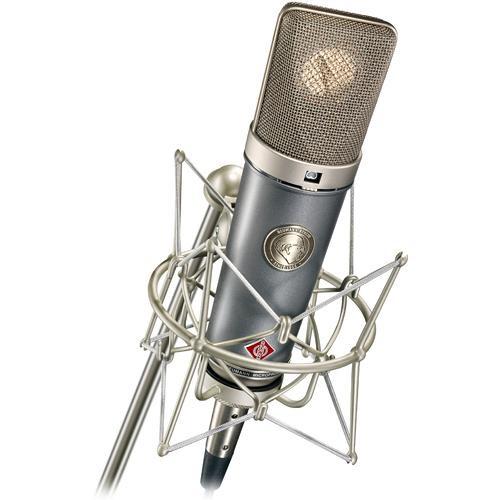

Product description The pearl gray and nickel TLM 67 SET Z Studio Microphone with Shockmount and Windscreen from Neumann contains the TLM 67 microphone, a shockmount with elastic suspension, a windscreen, an XLR microphone cable, and a wooden box.
The TLM 67 is an omnidirectional, cardioid, and figure-8 large-diaphragm microphone. The TLM 67 is based on the Neumann U 67. Like the U 67, the TLM 67 incorporates the K 67 capsule. In addition, the circuit design closely reproduces the sound characteristics of the U 67, without the use of tubes. It has three switchable directional characteristics, a selectable 10 dB pre-attenuation, and a high-pass filter that permits detailed adjustments to be made, depending upon the specific recording situation.
Due to its control features, the TLM 67 is suitable for a wide range of applications. In addition to its primary role as a vocal microphone for all types of music and spoken voice, in orchestral recordings the TLM 67 can be used as a main microphone and as a spot microphone for individual instruments.
The microphone is addressed from the side. A large wire-mesh grille encloses the elastically mounted double-diaphragm capsule. The directional characteristics can be selected via a switch below the grille. The selected setting is indicated by a symbol shown in a window above the switch.
In the TLM 67, an electronic circuit is used rather than a conventional output transformer. Like a transformer, the circuit ensures good common-mode rejection, effectively suppressing interference signals that affect the balanced modulation line. The microphone can operate at sound pressure levels of up to 105 dB without distortion, and has a dynamic range of 94 dB (A-weighted), without the use of the pre-attenuation switch.
The pre-attenuation switch on the back of the microphone can be used to reduce transmission levels by approximately 10 dB. It should be used only when there is a risk of overloading following devices due to very high sound-pressure levels. Use of the switch does not increase the dynamic range of the microphone, but rather shifts it by 10 dB, to higher sound pressure levels. The other switch on the back of the microphone can be used to change the cutoff frequency of the built-in high-pass filter, so as to suppress the effects of impact sound and wind noise, or to compensate for the proximity effect. Elastic mounting of the capsule supplies protection from the transmission of structure-borne noise. - K 67 Capsule
- The TLM 67 uses the K 67 dual-diaphragm capsule to closely emulate the sound of the classic U 67 microphone. The capsule is shockmounted inside the mic to reduce handling noise
- Transformerless Design
- The TLM 67 uses an electronic circuit instead of a conventional output transformer in order to achieve good common-mode rejection and accept high sound-pressure levels without distortion
- Distinctive Look
- The dual-color design features a blend of pearl-gray and nickel, and is accented by a 3D metal emblem of Georg Neumann to celebrate the company's 80th anniversary
- Selectable Patterns
- The microphone offers three selectable polar patterns including cardioid, omni, and figure-8
- -10dB Pad
- Perfect for louder sound sources, the switchable -10 dB pad gives the microphone extra headroom
- High-Pass Filter
- The switchable high-pass filter reduces low-end rumble and handling noise, and also compensates for the proximity effect
- Accessories Included
- The microphone comes complete with a wooden case, shockmount, and XLR cable
In the Box Neumann TLM 67 SET Z Studio Microphone with Shockmount and Windscreen TLM 67 Multi-Pattern Switchable Studio Microphone (Pearl Gray/Nickel) usxxsvrfsbvvdabrzxuqarfx EA87 - U87 Shock Mount for U87 Microphones (Nickle) 3-pin XLR to XLR Microphone Cable - 25 ft Wooden Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann TLM 67 SET Z Studio Microphone with Shockmount and Windscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann TLM 67 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Omnidirectional: 65 dB CCIR
Cardioid: 70 dB CCIR
Figure 8: 64 dB CCIR
Omnidirectional: 78 dB A-Weighted
Cardioid: 83 dB A-Weighted
Figure 8: 77 dB A-Weighted | | Equivalent Noise Level | Omnidirectional: 29 dB CCIR
Cardioid: 24 dB CCIR
Figure 8: 30 dB CCIR
Omnidirectional: 16 dB A-Weighted
Cardioid: 11 dB A-Weighted
Figure 8: 17 dB A-Weighted | | Maximum SPL | Omnidirectional: 110 dB SPL
Cardioid: 105 dB SPL
Figure 8: 111 dB SPL
Omnidirectional: 130 dB SPL
Cardioid: 125 dB SPL
Figure 8: 131 dB SPL | | THD | < 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Omnidirectional: 10 mV/Pa at 1 kHz into 1 kOhms
Cardioid: 18 mV/Pa at 1 kHz into 1 kOhms
Figure 8: 9 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 7.87" / 200 mm | | Diameter | 2.20" / 56 mm | | Weight | 1.08 lb / 490 g | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 11.5 x 11.5 x 6.0" |
