User Manual for Neumann U 47 fet Collector's Edition Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Neumann U 47 fet Collector's Edition
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
 |
User manual for the Neumann U 47 fet Collector's Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description - Mic Roundup Part 1: Mics Inspired by the Neumann U47 and AKG C12

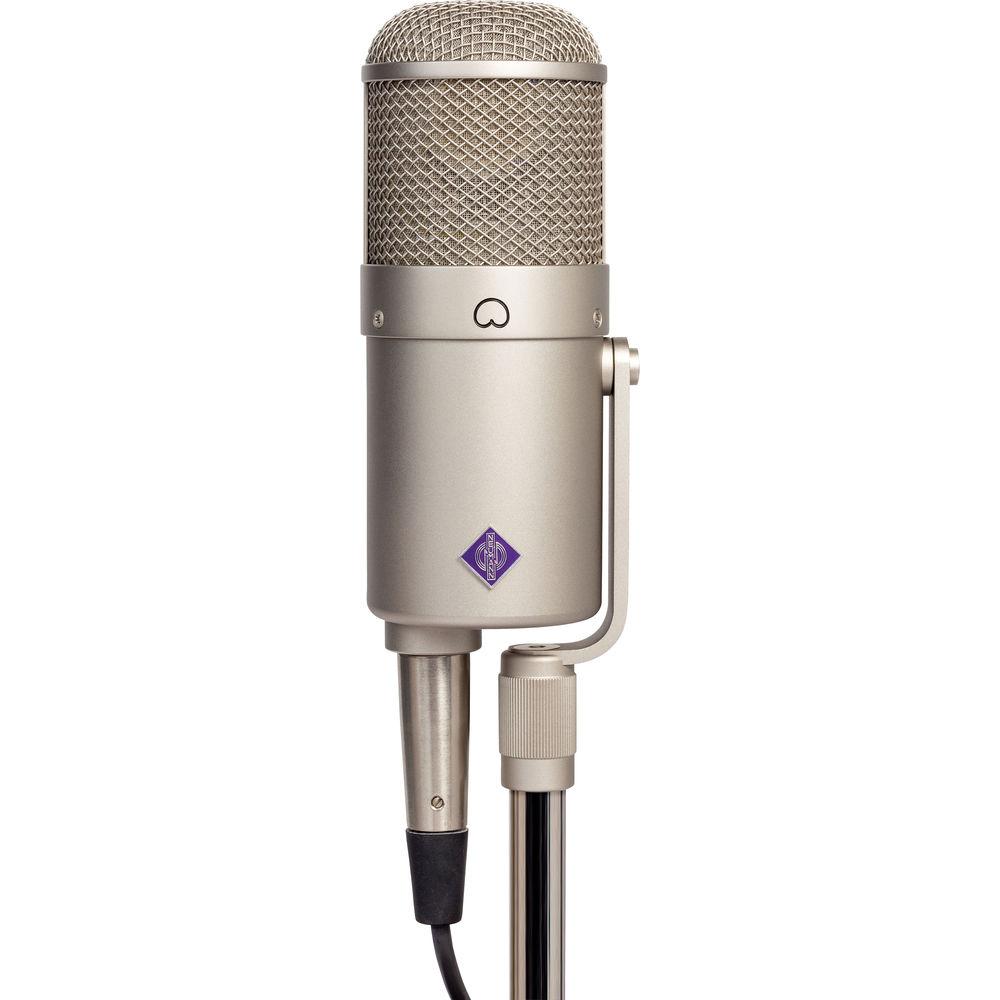

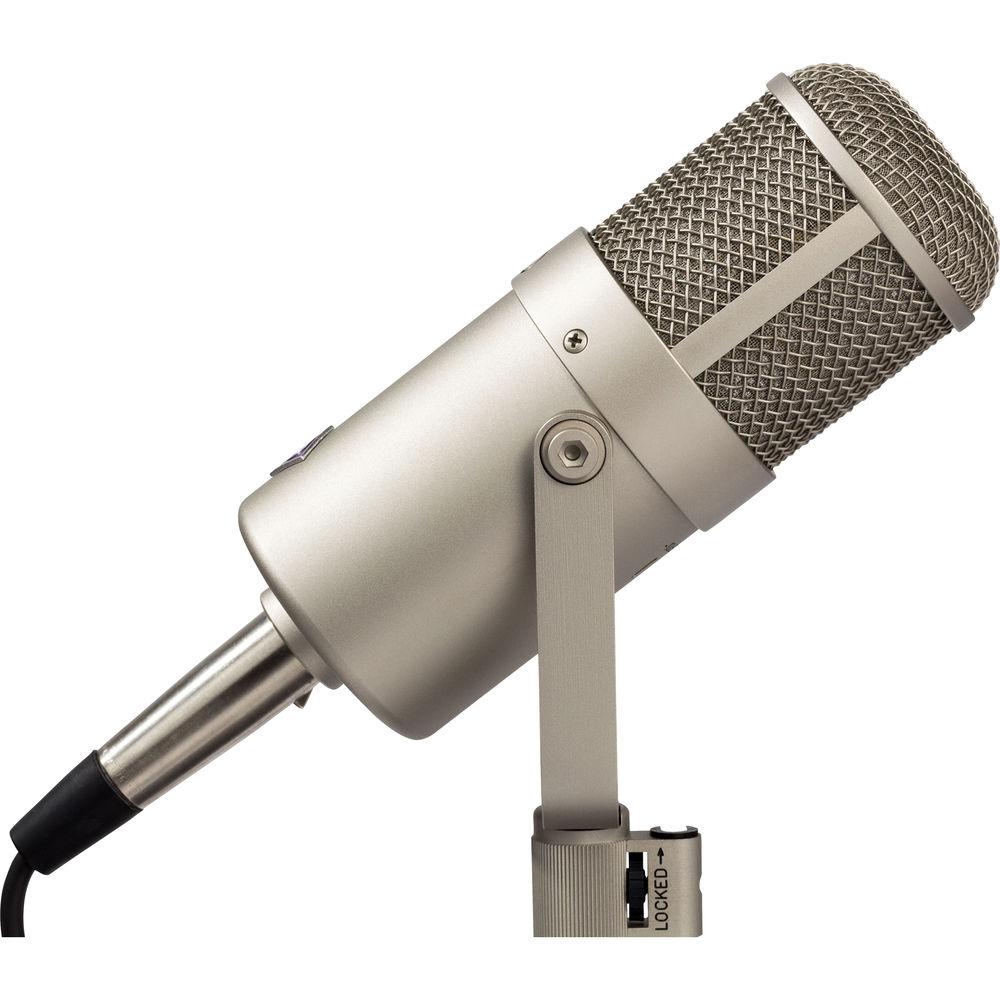

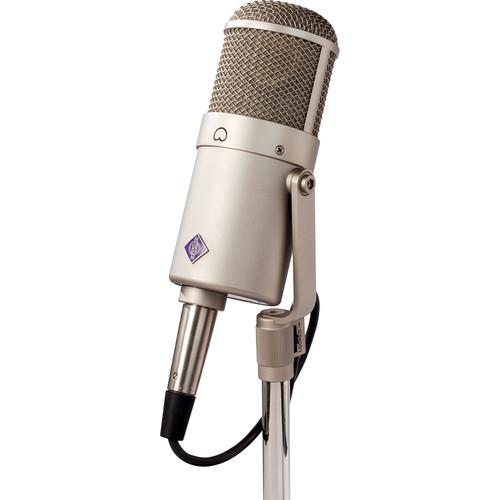

Built according to the original production documents and schematics of the classic design, the U 47 fet Collector's Edition Condenser Microphone from Neumann is a re-release of this often-copied microphone. A transistorized version of their tube U 47, the U 47 fet features their classic K 47 capsule and boasts a high SPL handling, and has historically found itself at home outside of a kick drum and in front of loud guitar and bass amps, contributing greatly to recordings from the 1960s and 70s. Like the original, there is a slight boost in frequency response around 2 kHz.

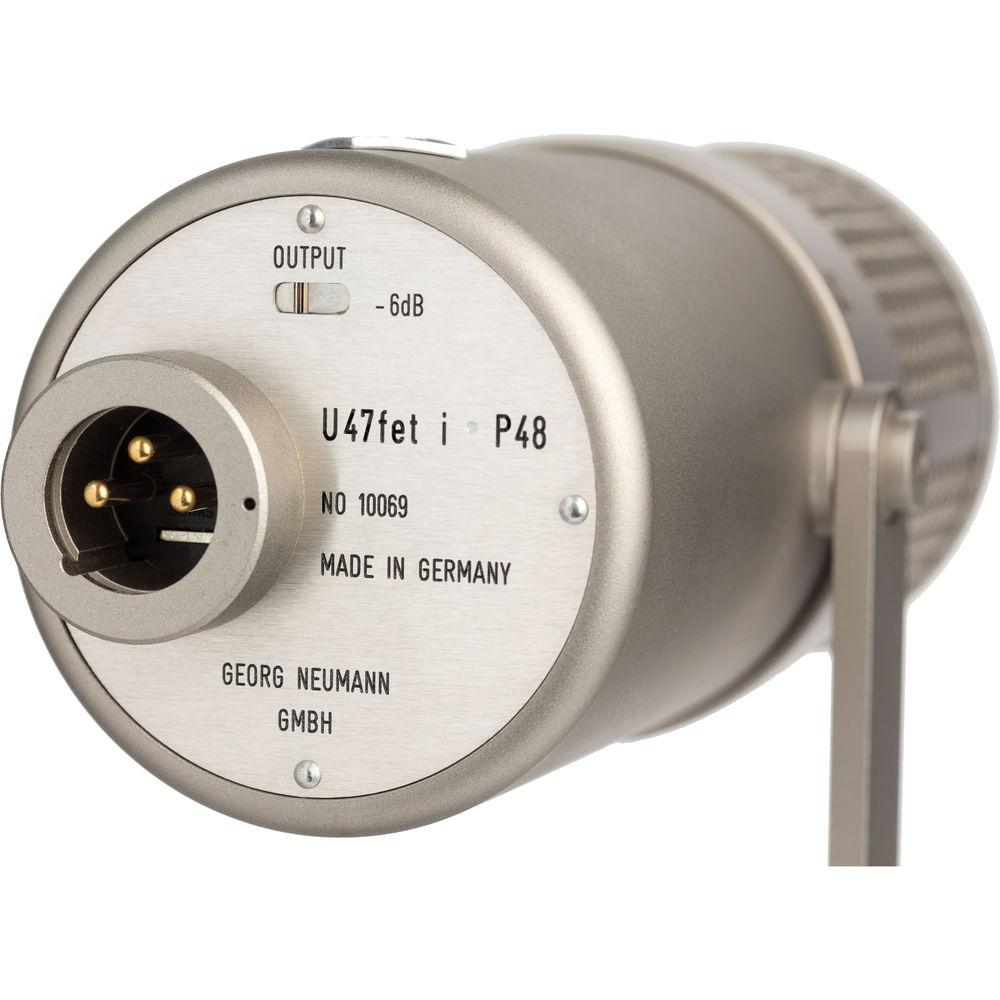

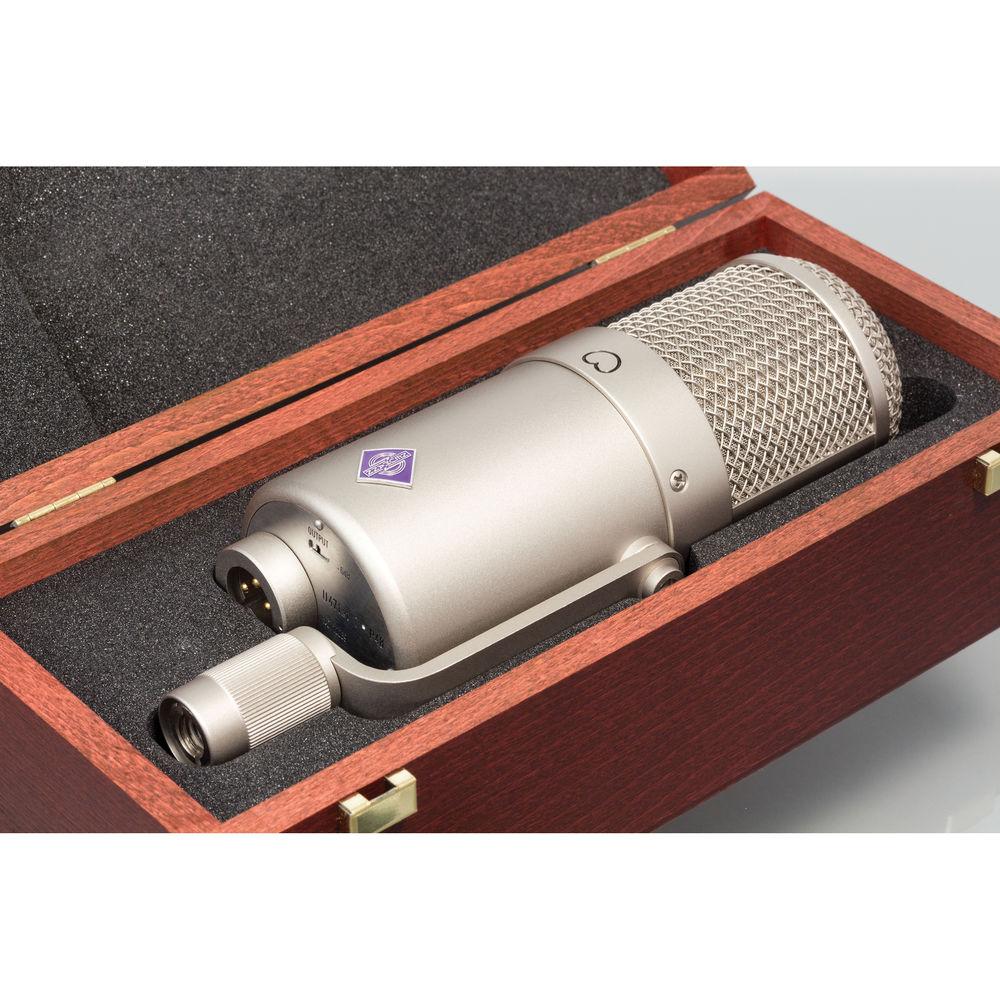

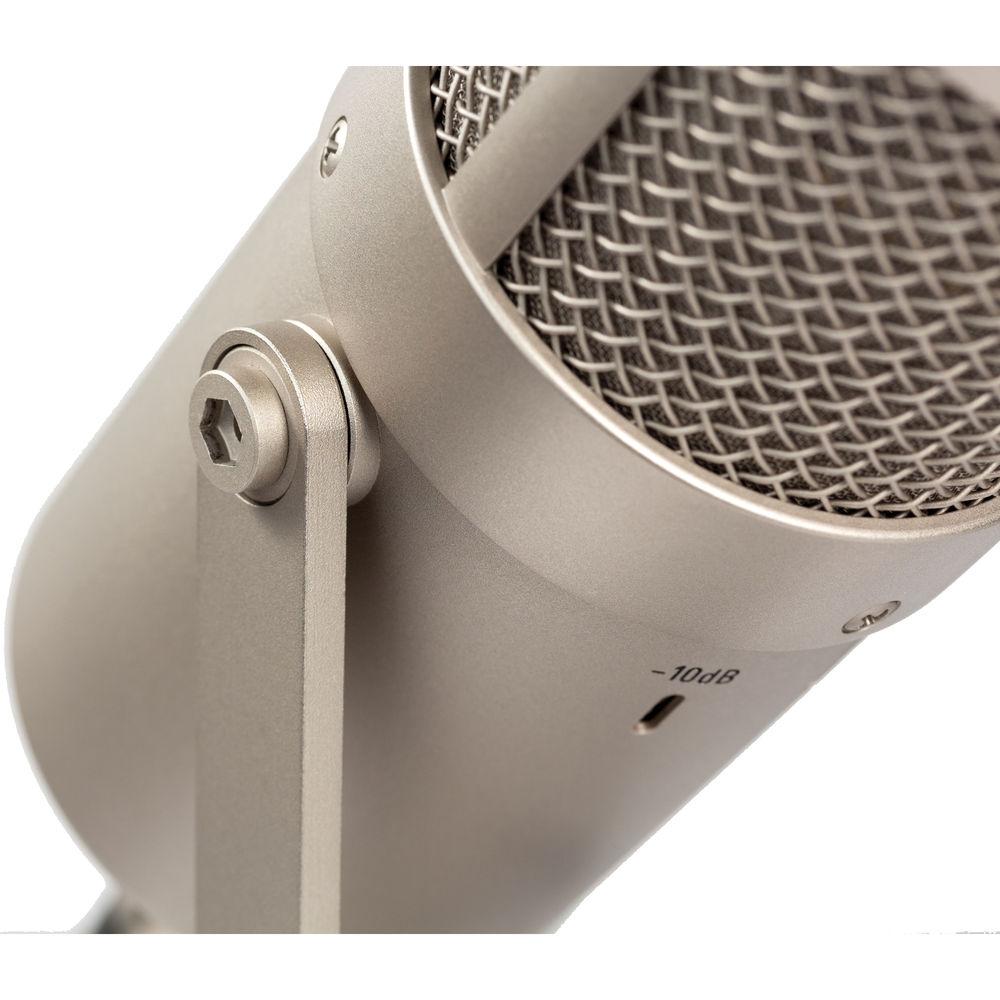

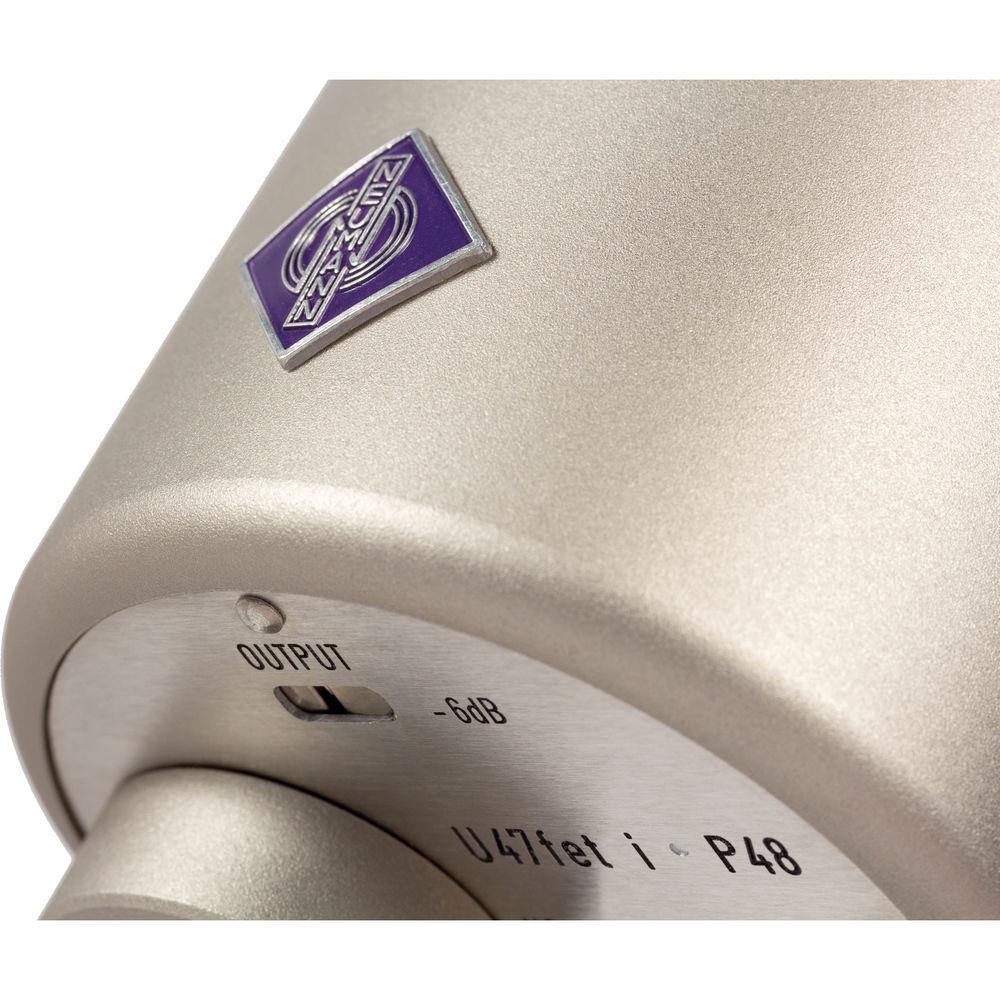

The mic features the same low-cut filter as the original at 140 Hz, as well as the selectable -10 dB pad. For additional attenuation, there is a -6 dB output switch, allowing you to hit your mic preamps at a lower level. UPC: 615104064270 In the Box Neumann U 47 fet Collector's Edition Condenser Microphone Wooden Box Collector's Edition Carton Box Certificate of Authenticity Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann U 47 fet Collector's Edition Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann U 47 FET Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 16 kHz | | Signal to Noise Ratio | 69 dB CCIR
76 dB A-Weighted | | Equivalent Noise Level | 25 dB CCIR
18 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 8 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 0.5 µA | | Operating Voltage | 48 V ± 4 V | | Length | 6.30" / 160 mm | | Diameter | 2.48" / 63 mm | | Weight | 1.56 lb / 710 g | | | | Package Weight | 3.155 lb | | Box Dimensions (LxWxH) | 10.236 x 4.882 x 3.937" |
