User Manual for Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Neumann U 67 Set Large-Diaphragm Tube
- Product category: Tube Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Tube Microphones
 |
User manual for the Neumann U 67 Set Large-Diaphragm Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|

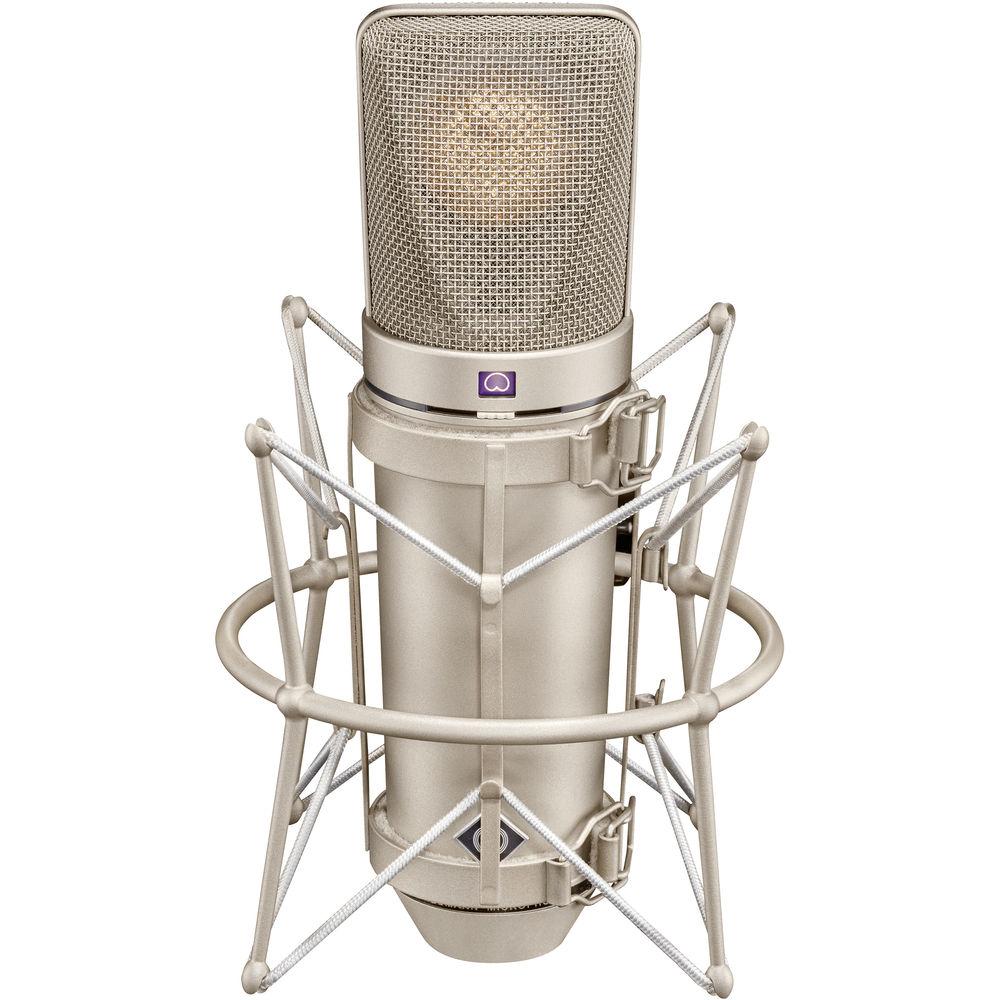

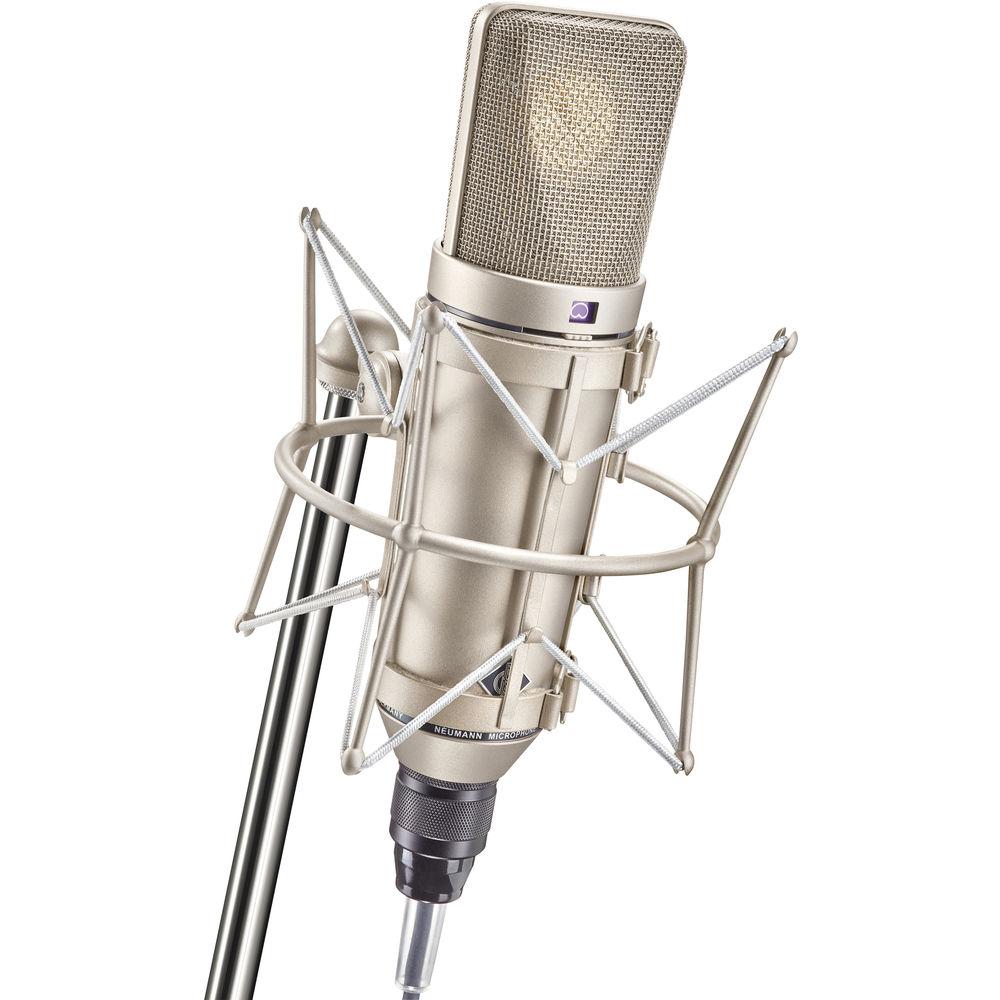

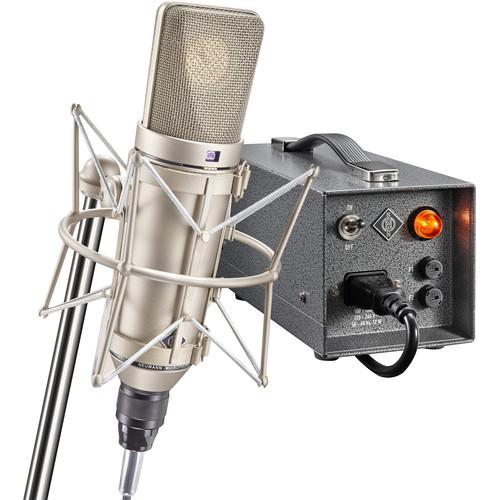

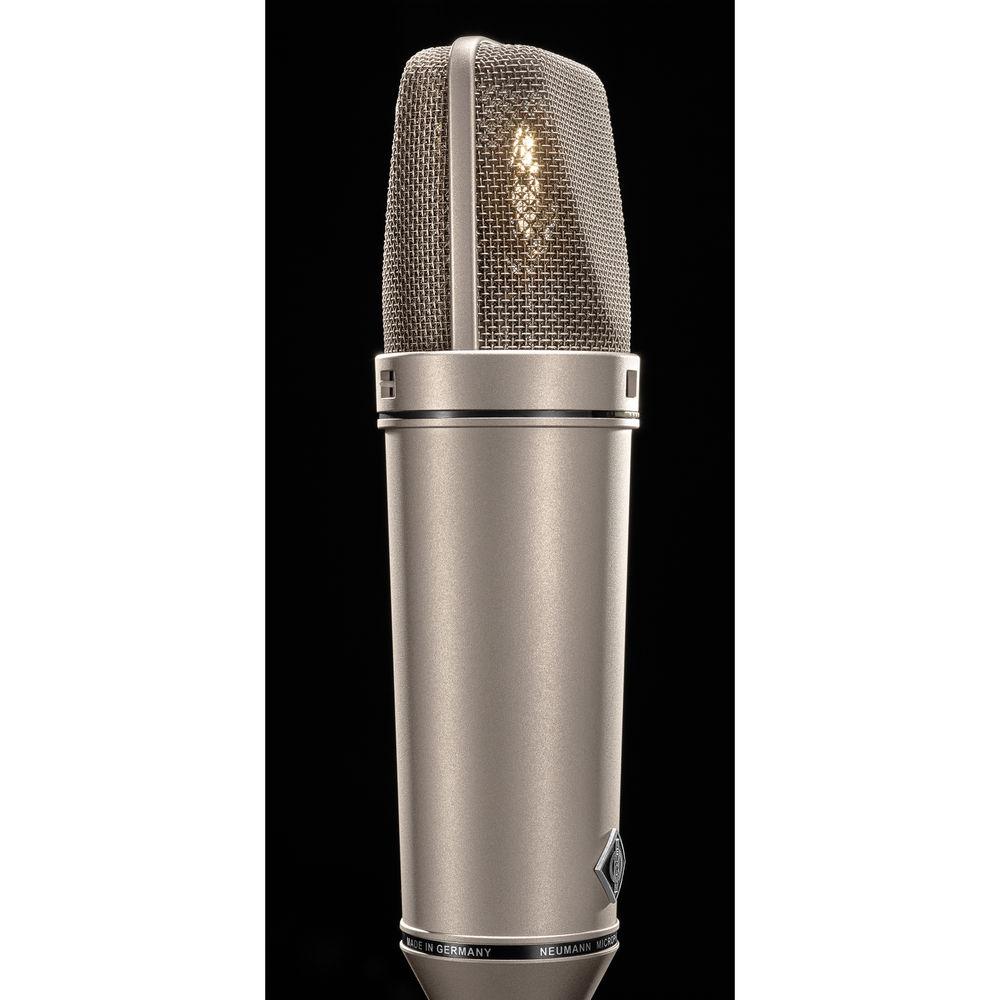

Product description NAMM 2018: Neumann Reissues Classic U 67 Microphone Read More The nickel Neumann U 67 Set is a large-diaphragm tube condenser microphone designed as a faithful reissue of the legendary vintage U 67 for vocalists, musicians, and recording engineers in home, project, and commercial studios. It features the venerable K 67 capsule, a BV 12 output transformer, and EF86 tubes that are prudently chosen for ideal sonic characteristics.Its three selectable polar patters, omnidirectional, cardioid, and figure-8, provide versatility for both close and distant miking configurations. A -10 dB pad raises the maximum SPL from 114 dB to 124 dB, allowing you to record loud sound sources without distortion. The 20 Hz to 20 kHz frequency response can be tailored to counteract proximity effect via the switchable low-cut filter.The U67 Set ships with a matching shockmount, proprietary XLR 7-pin cable, and redesigned power supply in a sturdy aluminum case. - True to the Original

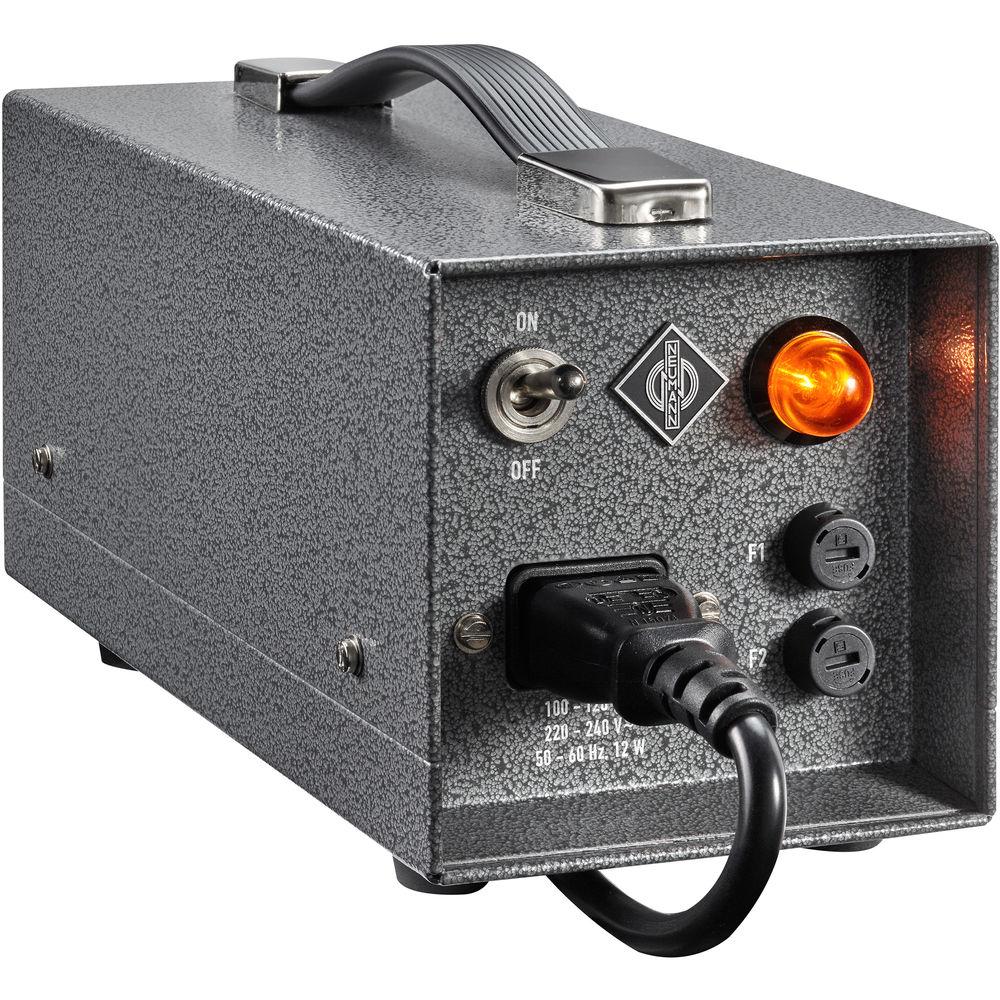

- Sonically, this reissue is identical to the U 67 made from 1960 to 1971; It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today's strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
- Quality Engineering

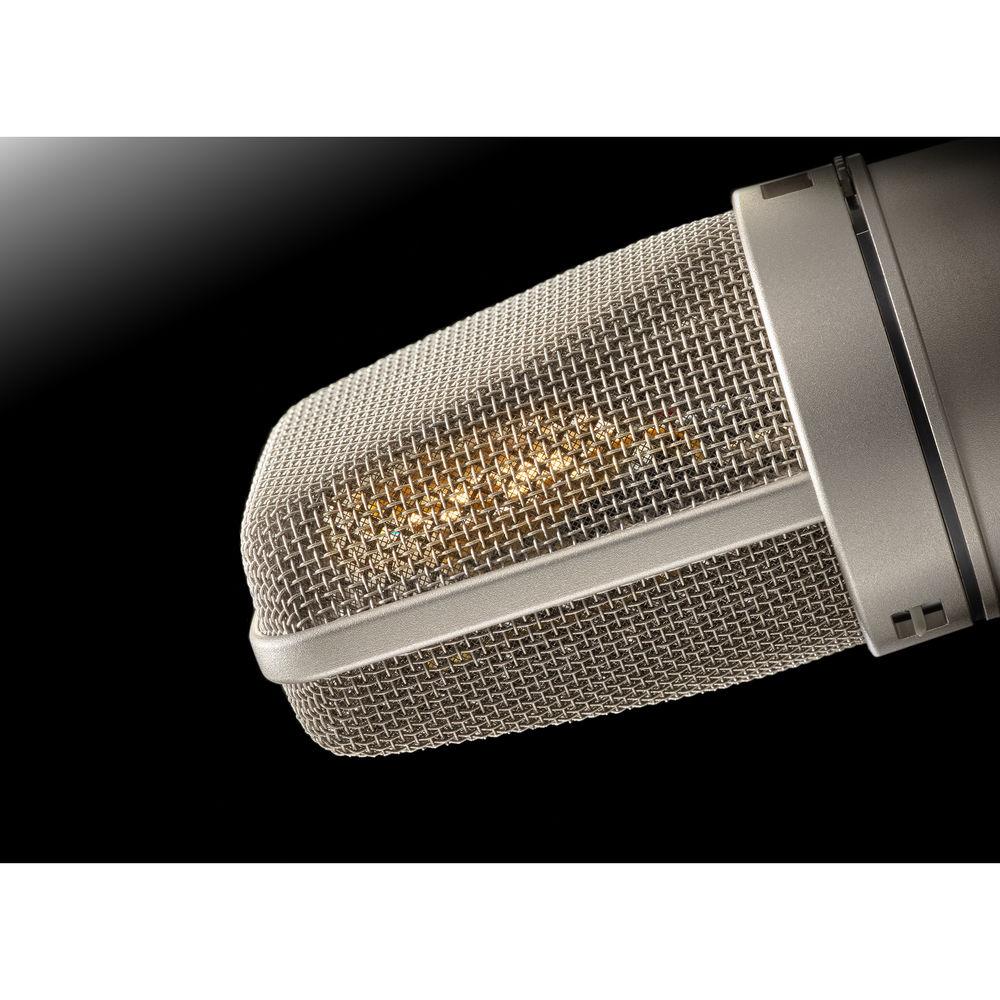

- The U 67 was the first microphone equipped with the famous K 67 capsule, which has since become associated with the Neumann sound, and continues to be used in its successor, the U 87 A. No less important is the U 67's masterful tube circuit featuring a clever pre-emphasis/de-emphasis scheme to minimize tube hiss. The U 67 was also the first microphone to address modern recording techniques such as close miking. Its switchable low-cut filter compensates for the proximity effect occurring at short recording distances. Using its -10 dB pad, the U 67 can handle high sound pressure levels of up to 124 dB without distortion (and much more if you don't mind a bit of "tube grit").
- Ready for the Studio

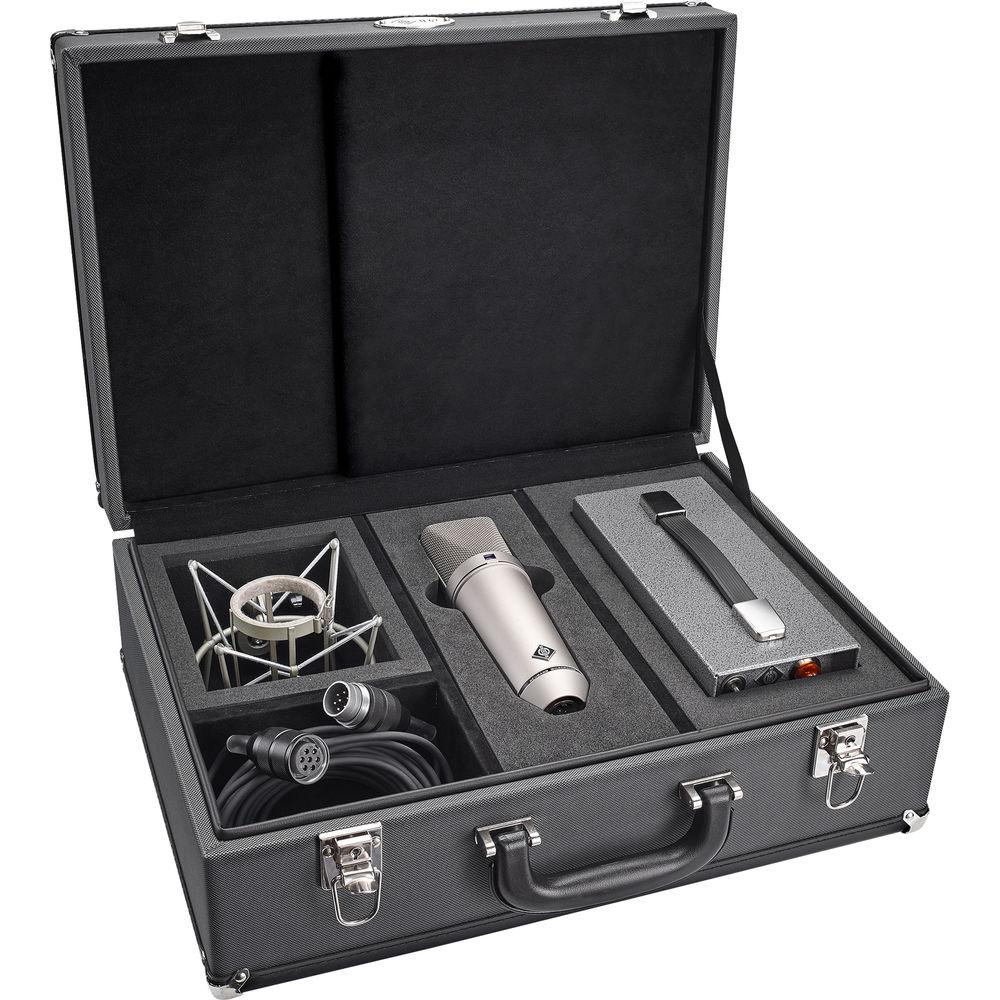

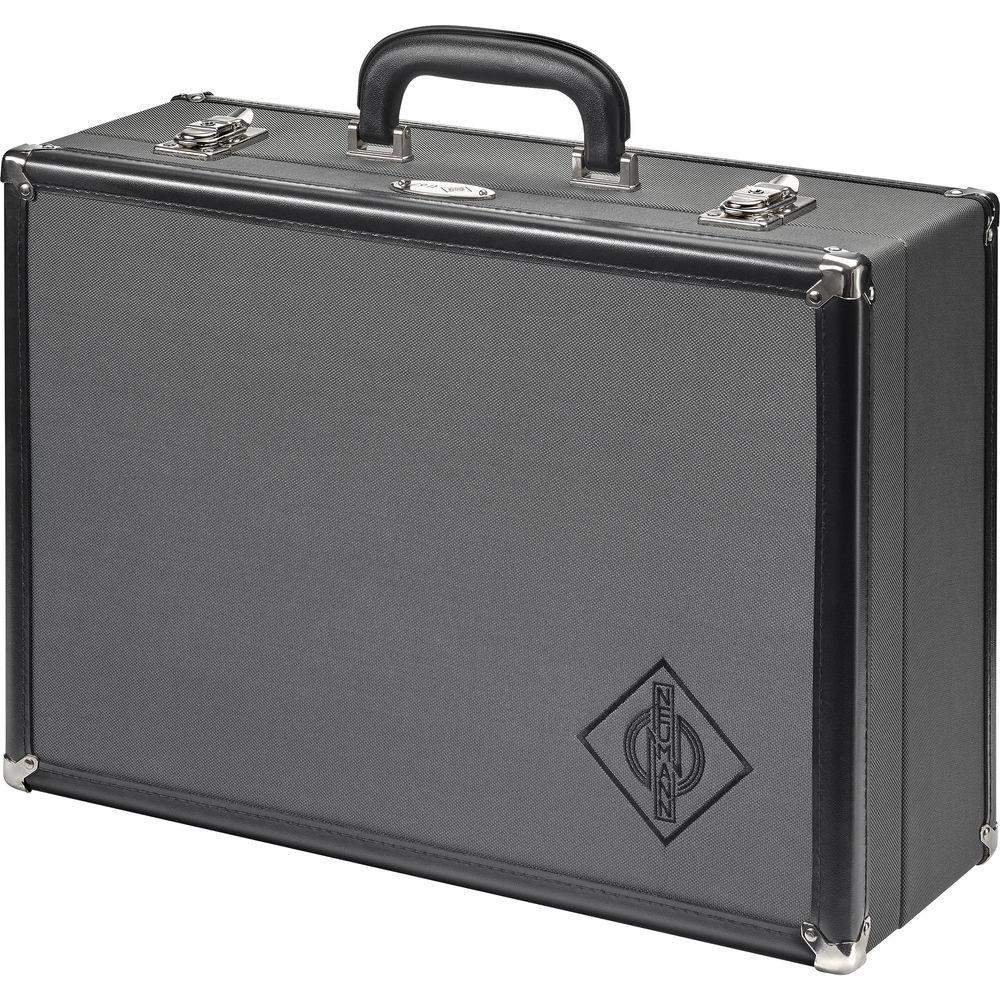

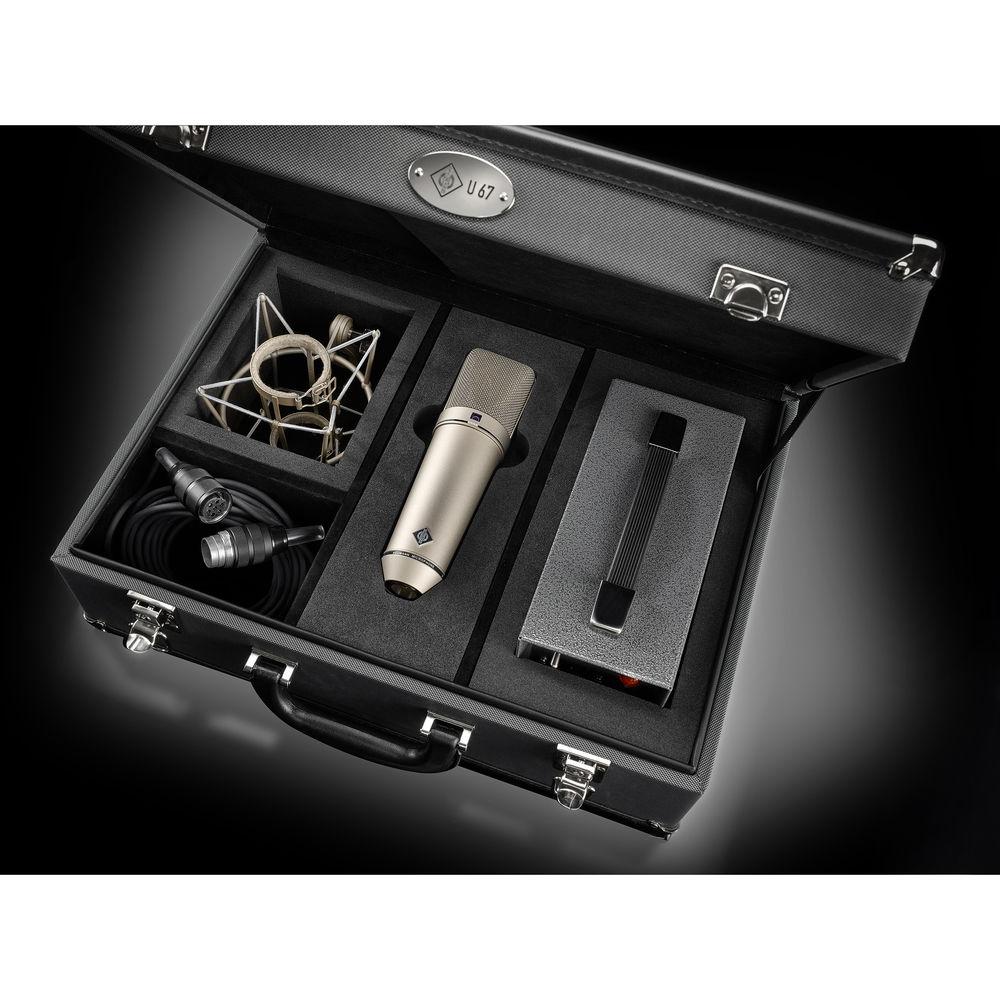

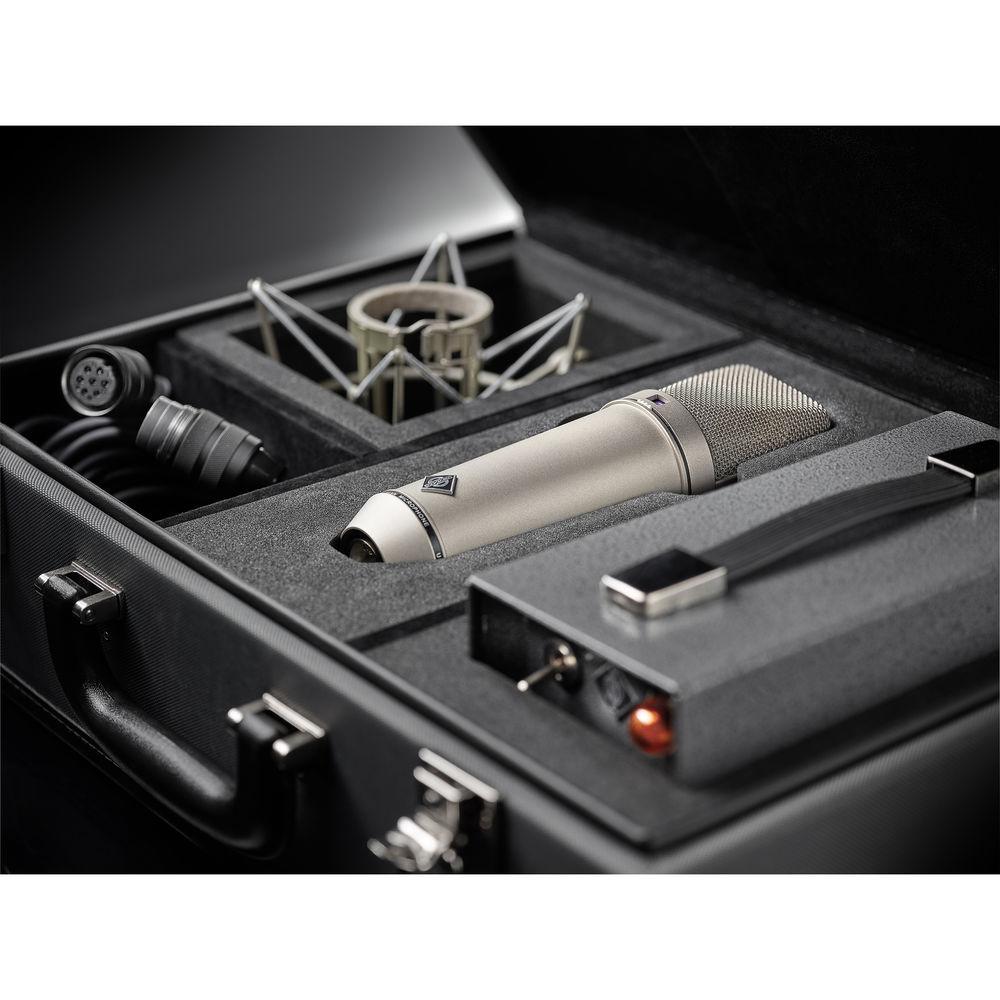

- The U67 Set includes a matching shockmount, power supply, and proprietary 7-pin XLR cable. The mic and its accessories fit snugly in the supplied aluminum carry case.
UPC: 615104301009 In the Box Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone Z48 - Microphone Clamp NU 67 V Power Supply for U67 Microphone UC 5 Microphone Connection Cable for U 67 Microphone (Black, 32.8') Aluminum Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann U 67 Set Large-Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann U 67 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Omnidirectional: 62 dB CCIR
Omnidirectional: 73 dB A-Weighted
Cardioid: 66 dB CCIR
Cardioid: 77 dB A-Weighted
Figure 8: 63 dB CCIR
Figure 8: 74 dB A-Weighted | | Equivalent Noise Level | Omnidirectional: 32 dB CCIR
Omnidirectional: 21 dB A-Weighted
Cardioid: 28 dB CCIR
Cardioid: 17 dB A-Weighted
Figure 8: 31 dB CCIR
Figure 8: 20 dB A-Weighted | | Maximum SPL | 114 dB SPL 124 dB SPL with -10 pad applied | | Pad | -10 dB | | Impedance | 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | Omnidirectional: 15 mV/Pa at 1 kHz into 1 kOhms
Cardioid: 24 mV/Pa at 1 kHz into 1 kOhms
Figure 8: 16 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 7-Pin XLR
1 x 3-Pin XLR XLR 7-pin output on microphone
XLR 3-pin output on power supply | | Length | 7.87" / 200 mm | | Diameter | 2.20" / 56 mm | | Weight | 1.23 lb / 560 g | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 21.8 x 14.8 x 7.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
