User Manual for Neumann U 87 Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Neumann U 87 Condenser Microphone
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
 |
User manual for the Neumann U 87 Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|

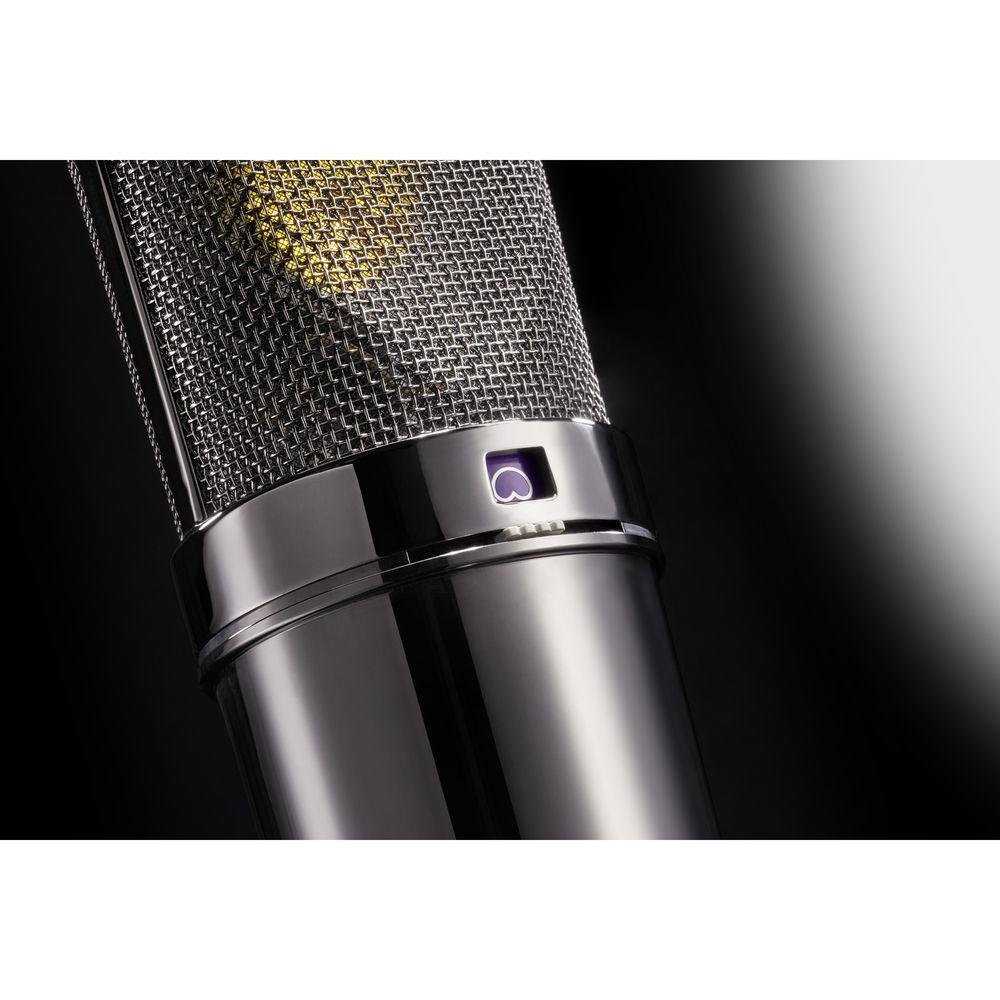

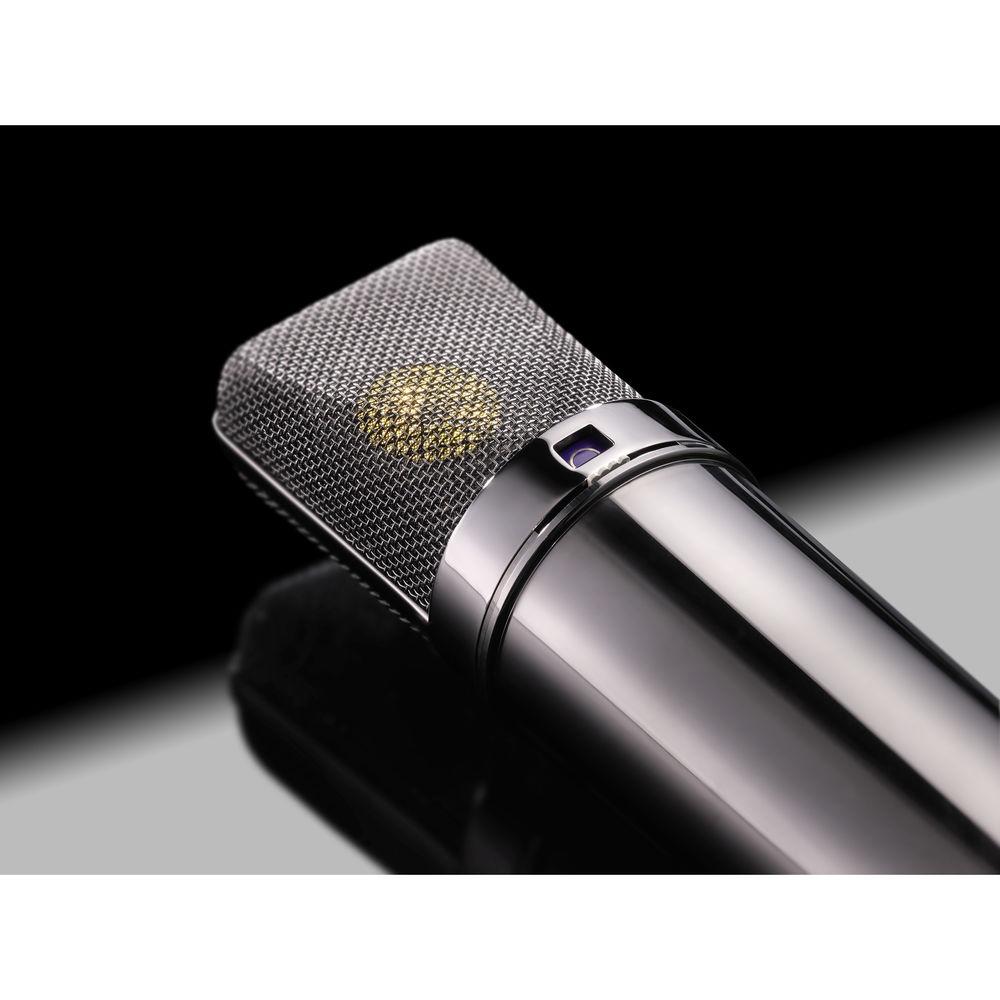

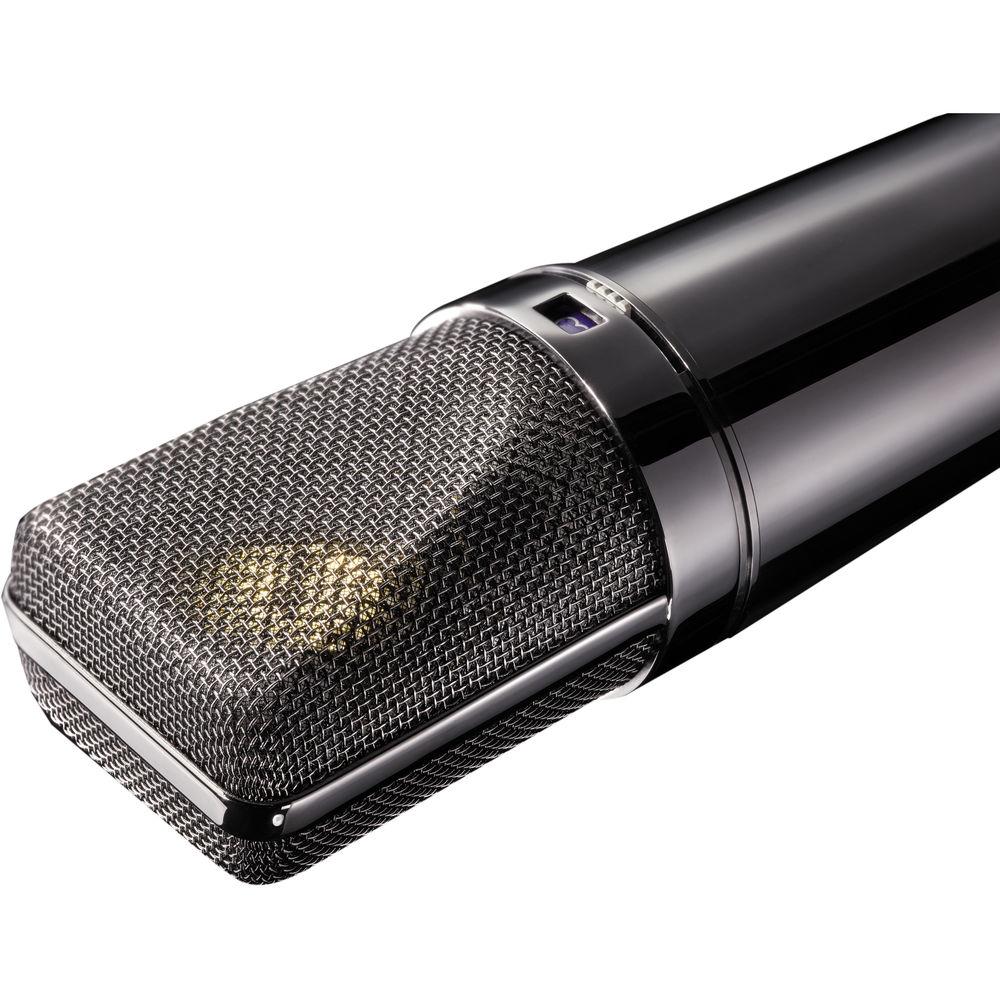

Product description In honor of its 50th anniversary, the Neumann U 87 Rhodium Edition takes all the features and specifications of the classic large-diaphragm condenser microphone and places them within a Rhodium encasement. It is suitable for capturing vocals, acoustic guitars, overheads, orchestras, or nearly any studio source, so long as it doesn’t exceed sound pressure levels of 117 dB (127 dB with the pad engaged). You’ll note its flat yet sweet character, which is flattering even in the often-harsh upper frequency range.Equipped with a dual-diaphragm capsule, the Neumann U 87 Rhodium Edition offers selectable polar patterns including omnidirectional, cardioid, and figure-8. In cardioid mode, the microphone maintains a smooth frequency response at distances between 11.8 to 15.7”; in figure-8, you’ll experience a smooth frequency response anywhere from 5.9 to 7.9” away. You’ll also find a -10 dB pad on the rear of the mic, as well as a high-pass switch, which reduces low-frequency interference at the input of the microphone amplifier itself. You can use this switch to compensate for the proximity effect.To celebrate the 50th anniversary of this venerable microphone, it is presented here in the aforementioned Rhodium coating. But that’s not all: An EA 87 shockmount (also housed in Rhodium) is provided, as is the U 87 Stereo Set Aluminum Case, a certificate of authenticity signed by Wolfgang Fraissinet, and—to top it off—a pair of black gloves. This is a limited run; only 500 of these models have been issued. - World-respected studio microphone encased in a Rhodium housing
- Variable large-diaphragm microphone
- Pressure-gradient transducer with double-membrane capsule
- Omnidirectional, cardioid, and figure-8 patterns
- Switchable low-frequency roll-off
- Switchable -10 dB pre-attenuation

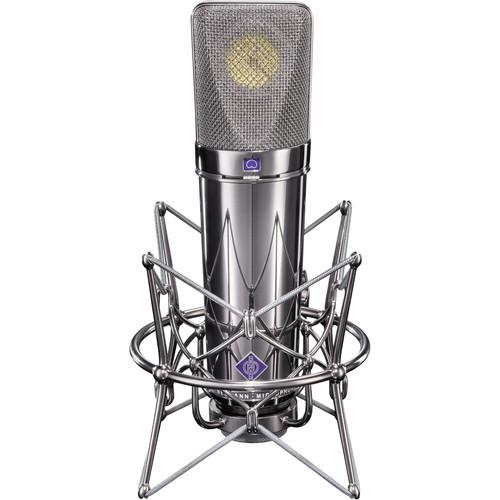

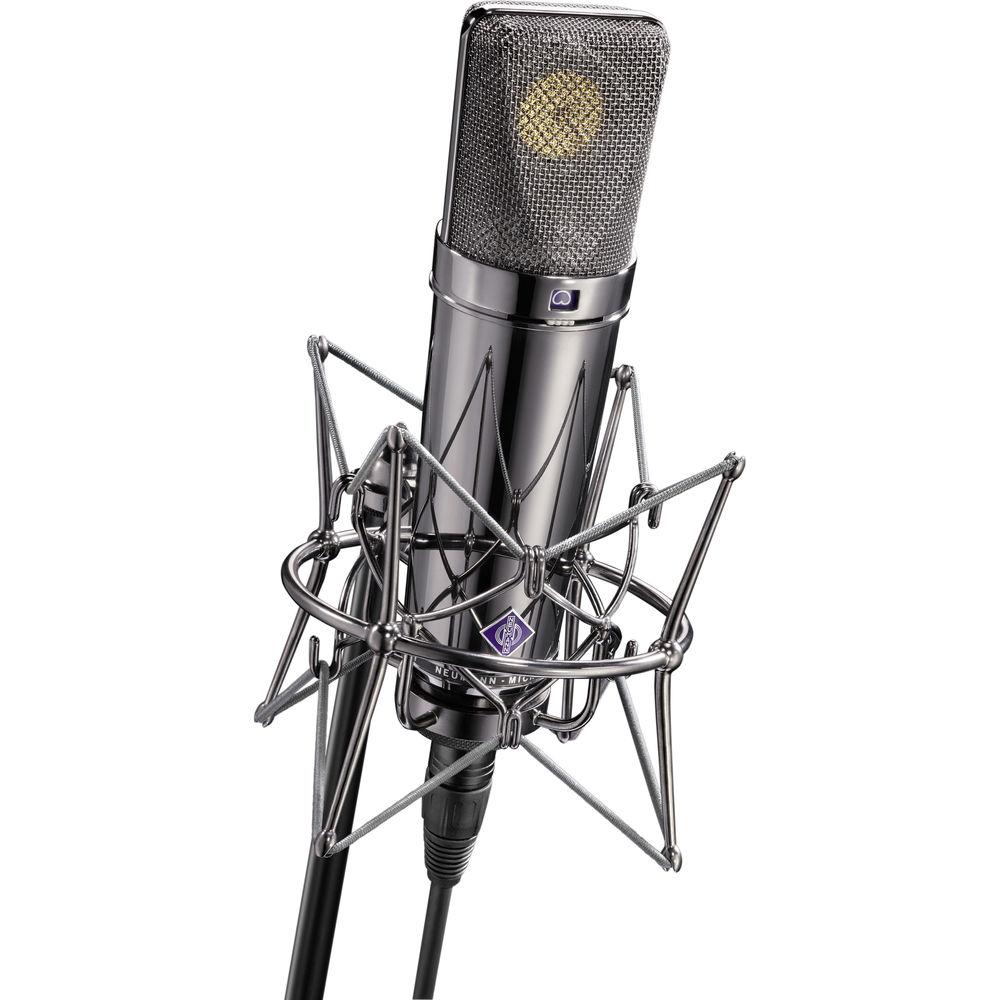

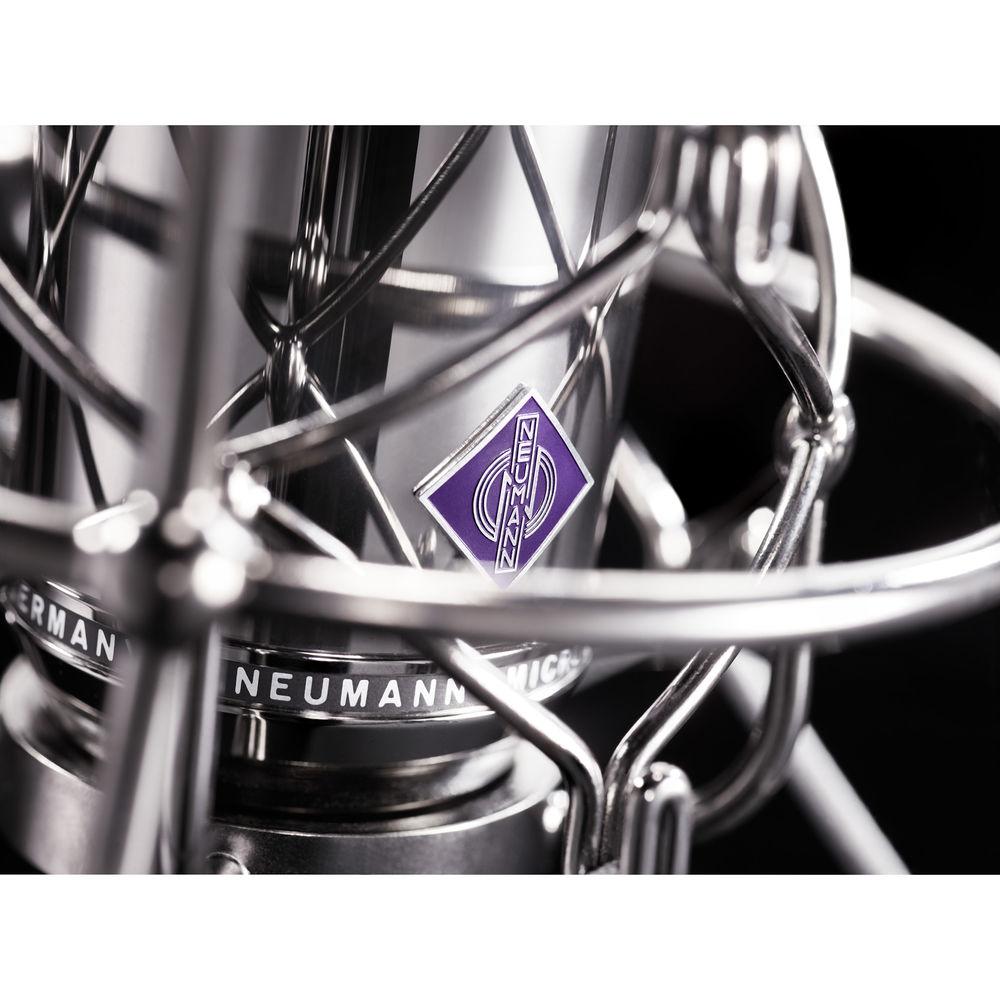

- Includes shockmount, aluminum case, certificate of authenticity signed by Wolfgang Fraissinet, and a pair of black gloves

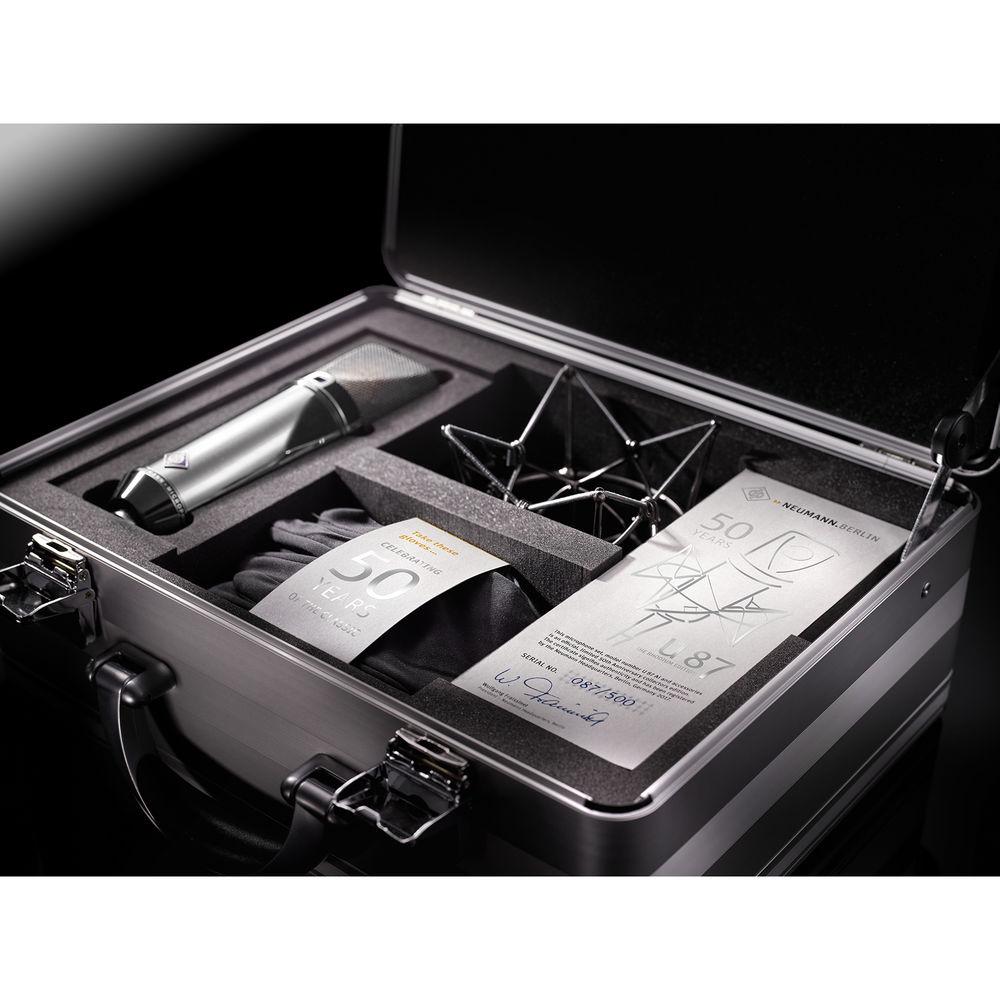

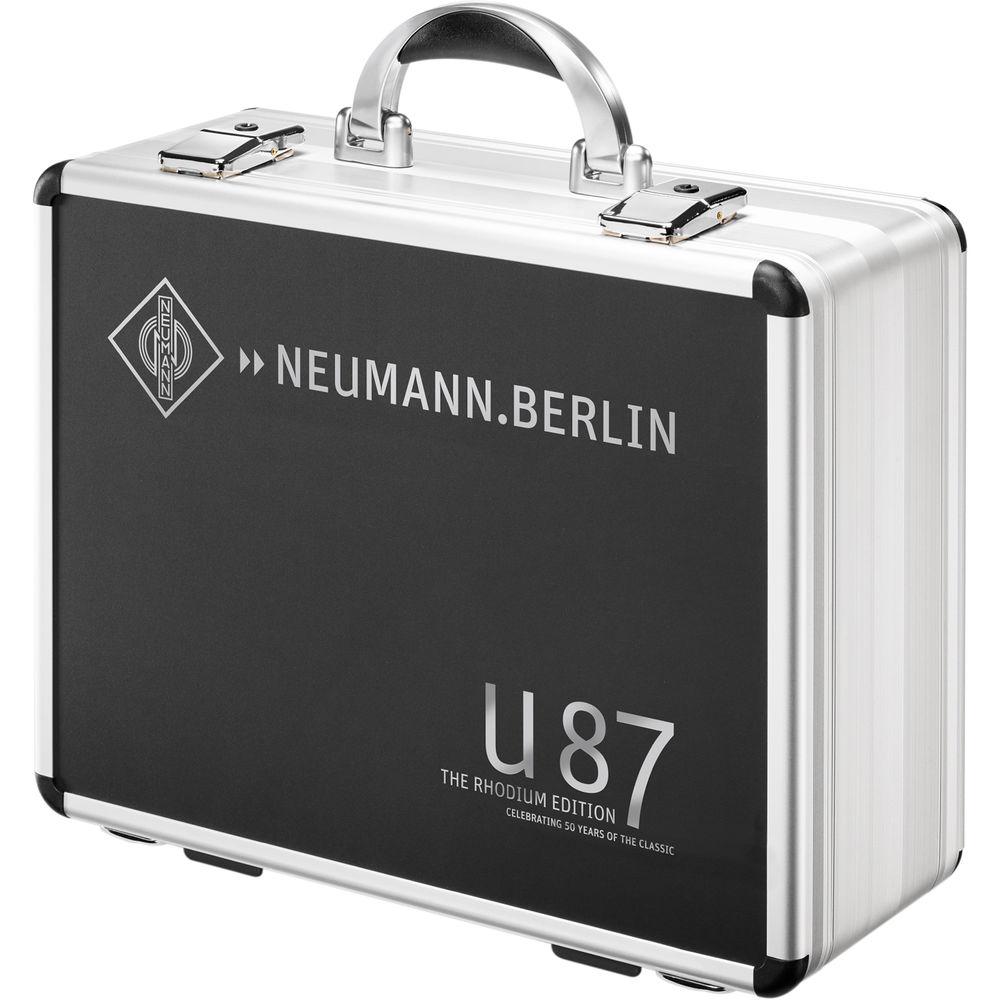

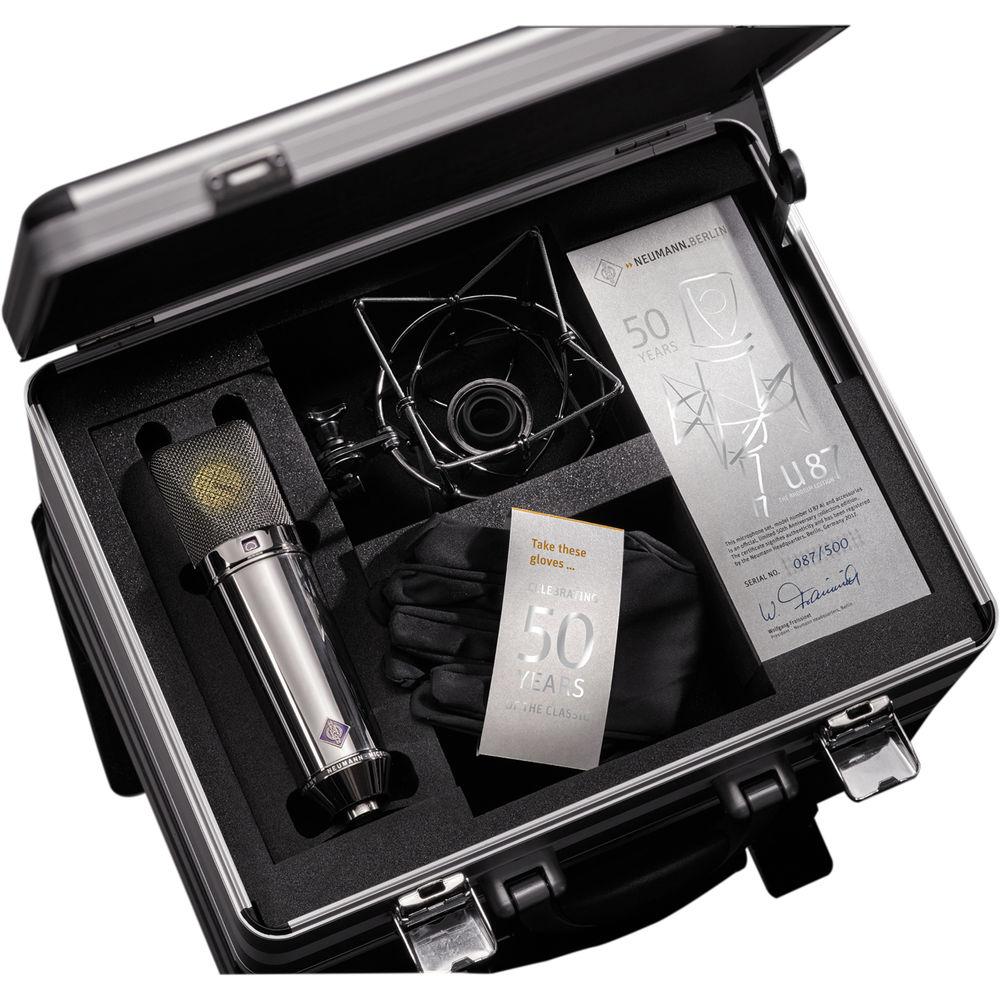

UPC: 615104314924 In the Box Neumann U 87 Condenser Microphone (Rhodium Edition) EA 87 Rhodium Edition Shockmount Stereo Set Aluminum Case Signed Certificate of Authenticity Pair of Black Gloves Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann U 87 Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann U87 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB CCIR
69 dB CCIR
68 dB CCIR
82 dB A-Weighted
80 dB A-Weighted
79 dB A-Weighted | | Equivalent Noise Level | 23 dB CCIR
25 dB CCIR
26 dB CCIR
12 dB A-Weighted
14 dB A-Weighted
15 dB A-Weighted | | Maximum SPL | Cardioid: 117 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 28 mV/Pa at 1 kHz into 1 kOhms
22 mV/Pa at 1 kHz into 1 kOhms
20 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 0.8 mA | | Operating Voltage | 48 V ± 4 V | | Length | 7.87" / 200 mm | | Diameter | 2.20" / 56 mm | | Weight | 1.10 lb / 500 g | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 16.0 x 14.0 x 6.3" |
