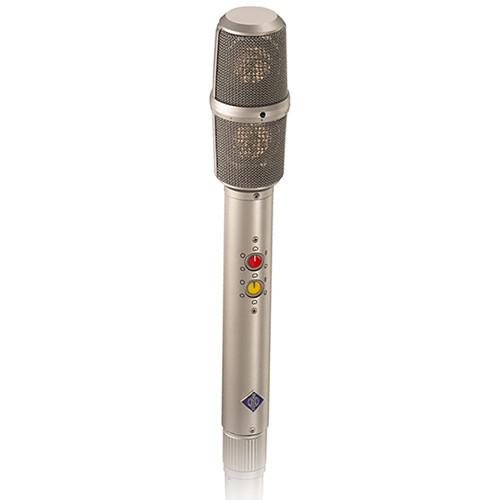

User Manual for Neumann USM 69 i Variable Pattern Stereo Microphone Click to enlarge the picture
Contents of the user manual for the Neumann USM 69 i Variable Pattern
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
|
User manual for the Neumann USM 69 i Variable Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The USM 69 i Variable Pattern Stereo Microphone is a dual capsule stereo microphone with two K67 multi-pattern capsules and independent amplifier stages operating independently from each other. The capsules are stacked and rotated at a 270 degree angle for M/S and X/Y style stereo capturing. Each capsule features individually switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns for the ultimate in flexible audio capturing. The USM 69 i features independent output stages allowing the capsules to function as individual mono microphones for audio backup capturing applications. The USM 69 i is a powerful stereo microphone for crucial studio recording of vocals and instruments. - Stereo M/S and X/Y Capturing
- The USM 69 i features two independent capsules and amplifier stages. The capsules are stacked in a 270 degree angle for close proximity X/Y and M/S style capturing of vocals and instruments.
- Mono Operation
- Independent amplifier stages allows for independent mono operation for audio backup capturing.
- Flexible Polar Patterns
- Each capsule features switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns.
- Excellent Audio Quality
- The USM 69 i delivers Neumann's pristine audio quality and low noise floor, and is an ideal choice for ultra-critical studio vocal/instrument recording.
UPC: 615104069749 In the Box Neumann USM 69 i Variable Pattern Stereo Microphone (Nickel) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann USM 69 i Variable Pattern Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann USM 69 i Specs | Transducer | Condenser Pressure Transducer x2 | | Polar Pattern | Omnidirectional, wide-angle cardioid, cardioid, hypercardioid, figure-8 | | Frequency Response | 20Hz to 20kHz | | Maximum Input Sound Level | 132dB, Equivalent SPL for THD 0.5% | | Power Requirements | 48V Phantom Power +/- 4V | | Output Impedance | Rated Impedance: 150 ohms balanced
Rated Load Impedance: 1000 ohms | | Output Connectors | Balanced XLR 5-pin | | Dimensions (LxDiameter) | 1.18 x 1.88" (30 x 48mm) | | Weight | 1.12 lbs (510g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
