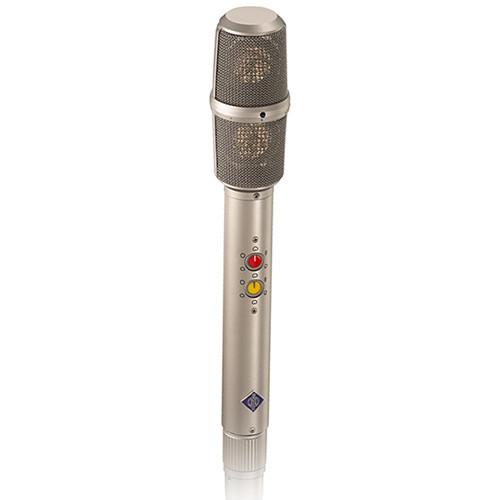

User Manual for Neumann USM 69 i Variable-Pattern Stereo Microphone with Microphone Cable Swivel Mount Click to enlarge the picture
Contents of the user manual for the Neumann USM 69 i Variable-Pattern Stereo
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
|
User manual for the Neumann USM 69 i Variable-Pattern Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The nickel USM 69 i Variable-Pattern Stereo Microphone with Microphone Cable/Swivel Mount from Neumann is a microphone with two separate dual-diaphragm capsules. These are mounted vertically and rotate against each other. The directional polar patterns can be selected separately for each capsule. The capsules operate independently from each other.
The microphone consists of the amplifier section and the capsule head. The amplifier section contains two microphone amplifiers operating independently from each other. They have an extremely low self-noise. Two completely separate microphone capsules are positioned closely above each other within the capsule head. Their diaphragms are made out of gold-sputtered polyester film. The upper capsule rotates against the lower one over a range of 270°. Color markings on the lower capsule system help to identify the angle by which the upper capsule has been rotated.
When sound waves reach the microphone capsules from different directions they will generate audio signals with different intensity only, but not with time differences, since the capsules are in close proximity and the sound arrives at both capsules simultaneously. The result is an intensity stereo signal that can be summed together for excellent mono compatibility without causing interference.
The USM 69 i has two built-in rotary switches. The five polar patterns of both capsules can be selected at the microphone itself. Therefore, no special AC power-supply units or powering adapters are necessary. The two outputs attach directly to any 48V phantom-powered connectors. In addition to the usual polar patterns (omnidirectional, cardioid, and figure-8), this microphone has a hypercardioid and a wide-angle cardioid pattern. A built-in DC converter generates the required capsule-polarizing voltages.
The amplifiers feature high-output capability and extremely low self-noise. Distant sound sources, as well as very loud sound sources at close range can therefore be recorded without any problem. Each amplifier has an active filter. It effectively suppresses subsonic interference as caused by wind or structure-borne noise. At the same time, the filter prevents the output transformers from overloading through very low-frequency energy.
The microphones may also be used as completely independent mono microphones. There are many applications when it is important to have a second mono microphone as a backup, or when the outputs of microphones with different polar-response characteristics must be available simultaneously.
The outputs of the two microphone channels can be linked (cascaded). In addition to the individual directional patterns, other characteristics are available through the combination of both channels. Both microphone systems operate completely independent from each other. The second amplifier will be unaffected, even in case of a faulty ground of the supply voltage for one of the channels, or a short circuit in one of the outputs.
The microphone is reliable in mono usage, even if only one of the systems is operated and connected. Its simple and redundant circuitry provides a low failure rate. Should the DC converter ever fail, a diode circuit within the microphone ensures that both systems will remain operational. The cardioid pattern is automatically chosen. The sensitivity is reduced by 3 dB. - Switchable stereo microphones
- Two pressure-gradient transducers with double-membrane capsules
- Aperture and pick-up angles freely choosable
- Directional characteristics switchable, omnidirectional, wide-angle cardioid, cardioid, hypercardioid, and figure-8
In the Box Neumann USM 69 i Variable-Pattern Stereo Microphone with Microphone Cable/Swivel Mount (Nickel) AC-20 5-Pin XLR Female to 2 3-Pin XLR Male Adapter Y-Cable wdbqwqtqeqeqscyddycrvusuytrrdxtdcrsa IC 6/25 Microphone Cable Wooden Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann USM 69 i Variable-Pattern Stereo Microphone with Microphone Cable Swivel Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann USM 69 i Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB CCIR
81 dB A-Weighted | | Equivalent Noise Level | 24 dB CCIR
13 dB A-Weighted | | Maximum SPL | 132 dB SPL | | THD | 0.5% | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 13 mV/Pa at 1 kHz into 1 kOhms | | | | Operating Current Consumption | 0.7 mA | | Operating Voltage | 48 V ± 4 V | | Length | 11.54" / 293 mm | | Diameter | 1.89" / 48 mm | | Weight | 1.12 lb / 510 g |
