User Manual for Neutrik 9.84' etherCON Cat6 Patch Cable with Cable Plug Carrier on One End Click to enlarge the picture
Contents of the user manual for the Neutrik 9.84' etherCON Cat6 Patch Cable
- Product category: Ethernet Cables Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Ethernet Cables
|
User manual for the Neutrik 9.84' etherCON Cat6 Patch Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

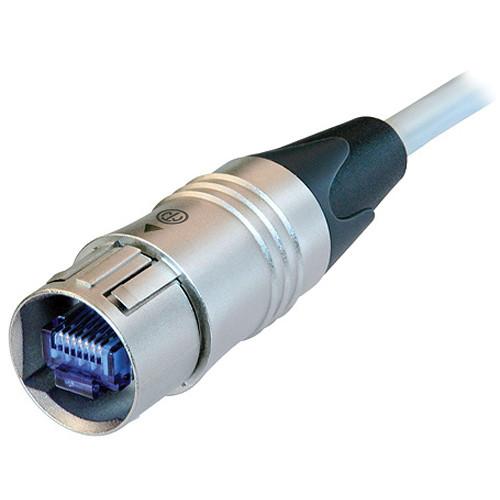

Product description The preassembled 9.84' (3 m) etherCON Cat6 Patch Cable with Cable Plug Carrier on One End from Neutrik is a shielded S/FTP cable with a cable plug carrier, which offers a robust metal shell and push-pull locking system. It provides data transfer rates of up to 10 Gbps. Moreover, the cable's shielded system provides high noise immunity and EMI protection. - The etherCON Cat6 Patch Cable provides data transfer rates of up to 10 Gbps.
- The cable offers true Cat6 performance with fast data transmission and supports high bandwidth applications.
- Cat6 specifications meet TIA / EIA 568B, ISO / IEC 11801 and EN 50173 standards.
- It meets IP65 standards and is dust and waterproof in mated condition.
- The cable's shielded system provides high noise immunity and EMI protection.
- Its push-pull mating mechanism provides a secure and proven locking system.
- The cable features a rugged cable carrier and a unique chuck-type strain relief.
In the Box Neutrik 9.84' (3 m) etherCON Cat6 Patch Cable with Cable Plug Carrier on One End Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik 9.84' etherCON Cat6 Patch Cable with Cable Plug Carrier on One End in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NKE6S-3-WOC Specs | Length | 9.84' (3 m) | | Cable Type | Cat6 male | | | | Contact Resistance | < 10 m Ω (inner) | | Dielectric Strength | 1 kV DC | | Frequency Range | 1 - 250 MHz | | Insulation Resistance | ≥ 0.5 G Ω | | Rated Current Per Contact | 1.5 A | | Rated Voltage | 50 V | | | | Insertion Force | ≤ 40 N | | Withdrawal Force | ≤ 20 N | | Lifetime | > 1000 mating cycles | | Wire Size | 8 x AWG 27/7 mm² | | Locking Device | Push-pull | | | | Boot | Polyurethane | | Contact Plating | 0.7 µm Gold over 1.2 µm Nickel plating | | Contacts | Bronze | | Insert | Polyamide (PA 6.6 30% GR) | | Shell | Zinc die cast | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | | | Flammability | UL 94 HB | | Standard Compliance | CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 | | Protection Class | IP65 | | Temperature Range | 14 to 140°F (-10 to 60°C) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 1.0" |
