User Manual for Neutrik 98' EtherCON CAT6 Patch Cable Click to enlarge the picture
Contents of the user manual for the Neutrik 98' EtherCON CAT6 Patch Cable
- Product category: Ethernet Cables Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Ethernet Cables
|
User manual for the Neutrik 98' EtherCON CAT6 Patch Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

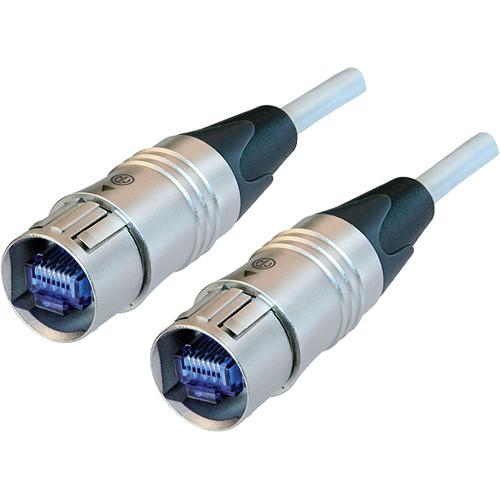

Product description The Neutrik EtherCON CAT6 Patch Cable is a CAT6 patch cable that is 98.4' long and comes with plug carriers on both ends to ensure reliable connections. It is IP65 rated and shielded, which guards against signal noise and EMI. Furthermore, the carriers have a metal shell and a push-pull locking system. - CAT6 compliant: Data rate up to 10 GB
- CAT6 performance: Fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65: Dust and waterproof in mated condition
- Shielded system: High noise immunity and EMI protection
- Push Pull mating: Secure and proven locking system
- Ready-made patch cables with rugged cable carrier and unique chuck-type strain relief
- Both cable ends with cable plug carrier
In the Box Neutrik 98' EtherCON CAT6 Patch Cable Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik 98' EtherCON CAT6 Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NKE6S-30 Specs | Gender | Male | | Contact Resistance | <10 mΩ (inner) | | Dielectric Strength | 1 kVDC | | Frequency Range | 1 to 250 MHz | | Insulation Resistance | ≥0.5 GΩ | | Rated Current Per Contact | 1.5 A | | Rated Voltage | 50 V | | Insertion Force | ≤40 N | | Withdrawal Force | ≤20 N | | Lifetime | >1000 mating cycles | | Locking Device | Push-pull | | Wire Size | 8 x AWG 27/7 mm² | | Boot | Polyurethane | | Contact Plating | 0.7 µm Au over 1.2 µm Ni plating | | Contacts | Bronze (CuSn8) | | Insert | Polyamide (PA 6.6 30% GR) | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | Flammability | UL 94 HB | | Standard Compliance | CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 | | Protection Class | IP 65 | | Temperature Range | 14 to 140°F (-10°C to 60°C) | | Length | 98.4' (30 m) | | Dimensions (Ø x L) | 0.917 x 2.795" (23.3 x 71 mm) | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 13.2 x 11.7 x 4.1" |
