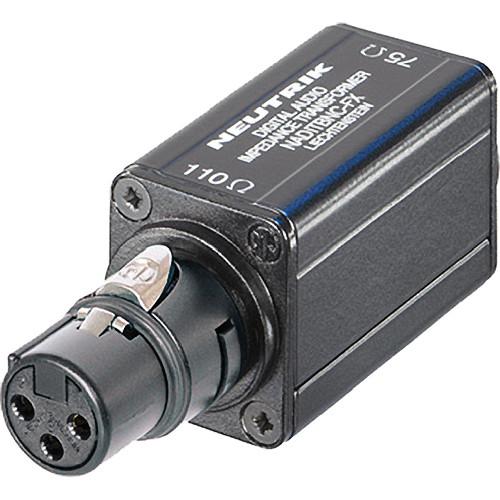

Product description The Neutrik AES/EBU Digital Impedance Transformer Adapter (110 Ohm to 75 Ohm) allows for long cable runs for digital audio signals via low-attenuation coaxial lines. It passively matches the characteristic impedance of a balanced 110 Ohm twisted-pair cable to that of a 75 Ohm unbalanced coaxial line. The adapter is equipped with a 3-pole XLR female input connector and a female BNC chassis output connector. - Key Features
-
- Allows long cable runs for AES/EBU digital audio signals via low-attenuation coaxial lines
- Matches 110 Ohm balanced twisted-pair cable to a 75 Ohm unbalanced coaxial line
- Pre-wired in black anodized aluminum extrusions for increased durability
- Input: 3-pole XLR female connector
- Output: female BNC chassis connector
- Simple to use, passive unit
In the Box Neutrik AES/EBU Digital Impedance Transformer Adapter (110 Ohm to 75 Ohm) Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik AES EBU Digital Impedance Transformer Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NADITBNC-FX Specs | Connection Type | Adapter | | Gender | Female | | Port 1 / Input | 3-pole XLR female cable connector, balanced
Impedance: 110 Ohms | | Port 2 / Output | Female BNC chassis, unbalanced
Impedance: 75 Ohms | | Frequency Range | 0.1 to 6 MHz | | Rated Voltage | ≤ 5 Vp-p / 250 mW | | VSWR | < 1.1 | | Return Loss | > 26.4 dB | | Insertion Loss | < 0.3 dB at 0.1 to 10 MHz | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.5 x 1.1 x 1.1" |
