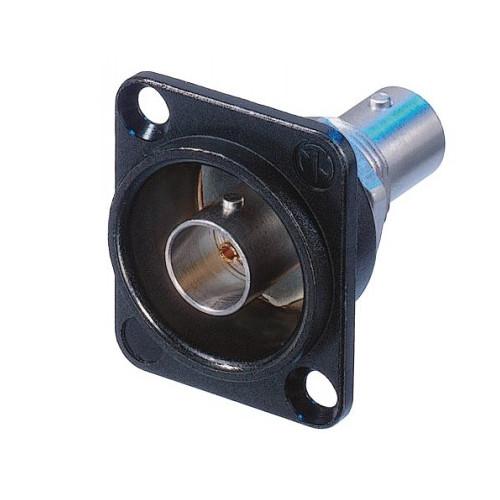

User Manual for Neutrik BNC D-Shape Housing Chassis Connector Click to enlarge the picture
Contents of the user manual for the Neutrik BNC D-Shape Housing Chassis Connector
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik BNC D-Shape Housing Chassis Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik BNC Chassis Connector is a feedthrough grounded connector in a black D-shape housing. This connector features a true 75-ohm design for serial and digital (HD) signals. The machined brass connector body provides rugged and non-abrasive connection for long term use. - Gold-plated cage-type center contact
- True 75-ohm design meets stringent HD requirements
- Standard D-shape housing is an audio industry standard that provides flush mounting and protection from damage
- Protruding bulkhead jack makes locking and unlocking of conventional BNC cable connectors easy
- Closed-contact design makes this connector robust
- Gold-plated cage-type clip offers shielding and low contact resistance
In the Box Neutrik BNC D-Shape Housing Chassis Connector (Grounded, Feedthrough, Black) Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik BNC D-Shape Housing Chassis Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NBB75DFGB Specs | Connection Type | BNC | | Impedance | 75 ohms | | Gender | Female | | | | Signal Type | HD, SDI, Video, AES/EBU, composite, YUV, RGB, RGBH, and RGBHV | | Contact Resistance | ≤3 mOhms (inner) | | Comment | ≤2 | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | >5 GOhms | | Rated Voltage | <50 V | | VSWR | ≤1.03 / >37 dB up to 1 GHz
≤1.05 / >32 dB up to 2 GHz
≤1.08 / >28 dB up to 3 Ghz | | | | Insertion Force | <25 N | | Lifetime | >1,000 mating cycles | | Locking Device | Bayonet | | Mounting Direction | Front | | Shape | Chassis: D | | Material | Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Polyacetal (POM) (Insulation Shell)
Shell Plating: Optalloy
D-Shape Housing: Zinc die-cast (ZnAl4Cu1) gal black chrome plating | | | | Temperature Range | -22 to 185°F (-30 to 85°C) | | Dimensions | 1.34 x 1.02 x 1.22" (34 x 26 x 31 mm) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 2.0 x 1.0 x 1.0" |
