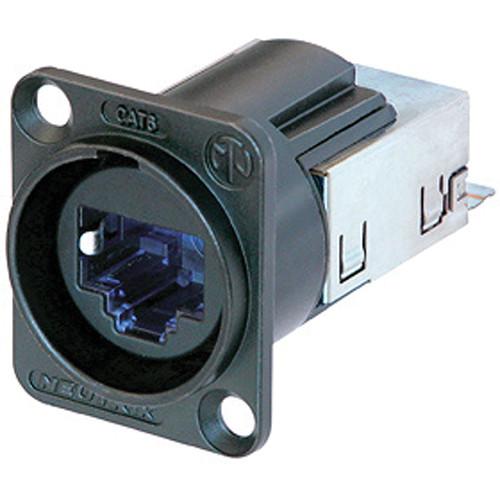

Product description The etherCON D-Shape Cat 6 Panel Connector with Nickel Housing from Neutrik is a RJ45 connector for fast data transmission and high bandwidth applications. It offers additional support for Fast Ethernet 100BaseT and Gigabit Ethernet 1000BaseT connectivity in audio, lighting, live stage and industrial environments and it is also prepared for future 10 Gbit applications. The connector's secure latching system offers gas-tight IDC termination without using a tool, which makes the cable assembly easy and fast. It has integrated sealing rings that offer high noise immunity and EMI protection. It also makes the system dust-proof and water-proof according to the IP65 rating. - The panel connector provides high bandwidth data transmission of up to 10 Gbps
- The Fast Ethernet 100BaseT and Gigabit Ethernet 1000BaseT offers high speed connectivity
- It has high noise immunity and EMI protection shielding system
- In accordance with IP65 rating the connector is dust and water resistant in mated condition
- The Cat 6 specifications is according to TIA /EIA 568B, ISO/IEC 11801, EN 50173
In the Box Neutrik etherCON D-Shape Cat 6 Panel Connector with Nickel Housing Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik etherCON D-Shape Cat 6 Panel Connector with Nickel Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NE8FDY-C6 Specs | Connector | RJ45 | | Type | Female Cat 6 | | Contact Termination | IDC | | Electrical | Contact Resistance: < 10 m ohm (inner) Insulation Resistance: > 0.5 G ohm Dielectric Strength: 1 kV dc Frequency Range: 1 to 250 MHz Rated Current per Contact: 1.5 A Rated Voltage: 50 V Standard Compliance: TIA/EIA 568B, ISO/IEC 11801, EN 50173 | | Mechanical | Insertion Force: ≤ 40 N Withdrawal Force: ≤ 20 N Lifetime: > 1000 mating cycles Panel Thickness: 0.12" (3 mm) Wire Size: 0.020 to 0.026" (0.5 to 0.65 mm) (AWG 24 to AWG 22) Stranded Wire Size: AWG 26/7 to 22/7 AWG | | Material | Contact Plating: 0.7 µm gold over 1.2 µm nickel Shell Plating: Nickel Strain Relief: Stainless steel | | Environmental | Operating Temperature: 14 to 140°F (-10 to 60°C) Storage Temperature: -40 to 158°F (-40 to 70°C) Flammability: UL94HB Protection Class: IP65 | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 1.2" |
