User Manual for Neutrik EtherCON Series Panel Mount Receptacle Click to enlarge the picture
Contents of the user manual for the Neutrik EtherCON Series Panel Mount Receptacle
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik EtherCON Series Panel Mount Receptacle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

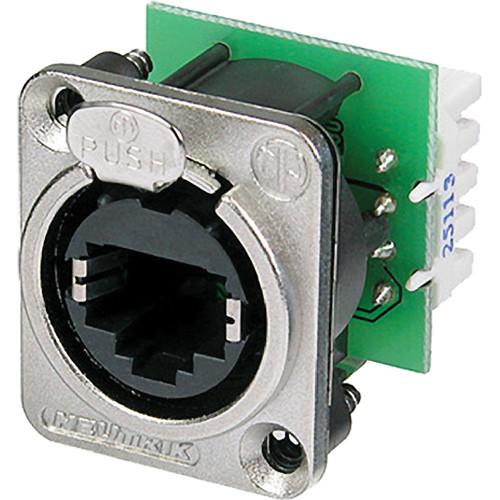

Product description Neutrik's EtherCON Series Panel Mount Receptacle has IDC punch down terminals, D-sized metal flange with latch lock, maximum panel thickness of 4 mm, and comes with mounting screws.
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. - Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA/EIA 568B and ISO/IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using Krone punch down terminals
Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik EtherCON Series Panel Mount Receptacle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NE8FDV-YK Specs | Gender | Female | | Electrical | Contact resistance: < 10 mΩ (inner)
Dielectric strength: 1 kVdc
Frequency range: 1 - 100 MHz
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1,5 A
Rated voltage: 50 V
Transmission performance: CAT 5e
Standard compliance: TIA/EIA 586B, IEC11801 | | Mechanical | Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Panel thickness: maximum 4 mm (0.16")
Wiresize: 0.14 - 0.5 mm^2
Wiresize: 26 - 20 AWG
Locking device: Latch lock
Chassis shape: D | | Material | Contact plating: 0.2 µm Au over Ni plating
Contacts: Bronze (CuSn8)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: CuZn35Pb2, Tin plated | | Environment | Flammability: UL 94 V-0
Temperature range: -30 °C to +80 °C | | | | Package Weight | 0.06 lb | | Box Dimensions (LxWxH) | 4.05 x 2.45 x 1.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
