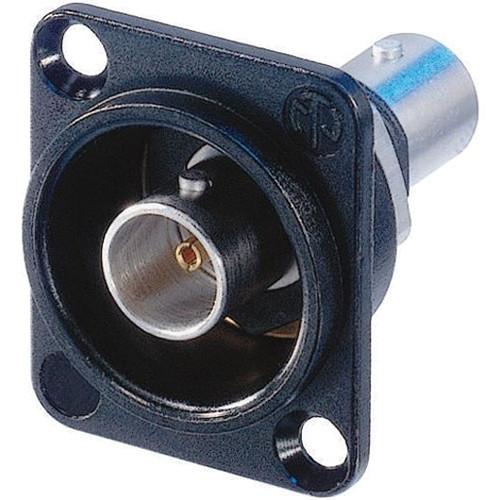

User Manual for Neutrik Isolated BNC Chassis Connector in D-Shape Housing Click to enlarge the picture
Contents of the user manual for the Neutrik Isolated BNC Chassis Connector in
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik Isolated BNC Chassis Connector in contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Isolated BNC Chassis Connector in D-Shape Housing (Black Chrome) from Neutrik is a feed-through connector which offers a true 75 Ω design for serial and digital (HD) signals. It features a machined brass connector body that provides an extremely rugged and non-abrasive connection over long term use. In addition, it is recessed and therefore well protected in a D-shape housing (audio industry standard). - The BNC Chassis Connector features a gold plated cage type center contact, which provides the best possible shielding and lowest contact resistance.
- It has an extremely robust closed contact design.
- It offers a true 75 Ω design that meets stringent HD requirements.
- The BNC Chassis Connector's isolated panel mount feature solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
- Its standard D-shape housing provides flush mounting and protection from damage.
In the Box Neutrik Isolated BNC Chassis Connector in D-Shape Housing (Black Chrome) 6 Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik Isolated BNC Chassis Connector in D-Shape Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NBB75DFIB Specs | Connection Type | Female BNC 75 Ω | | | | Signal Type | HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV | | Contact Resistance | ≤ 3 m Ω (inner) | | Comment | ≤ 2 | | Dielectric Strength | 1.5 kV DC | | Impedance | 75 Ω | | Insulation Resistance | > 5 G Ω | | Rated Voltage | 500 V | | VSWR | ≤ 1.03 / > 37 dB up to 1 GHz≤ 1.05 / > 32 dB up to 2 GHz ≤ 1.08 / > 28 dB u | | | | Insertion Force | < 25 N | | Lifetime | > 1000 mating cycles | | Locking Device | Bayonet | | Mounting Direction | Front | | Chassis | D-shape | | | | Contacts | Brass, 0.2 µm AuCo (center contact) | | Insert | PTFE | | Shell | Polyacetal (POM) (insulation shell) | | Shell Plating | Optalloy | | Housing | D-Shape Housing: Zinc diecast gal black chrome plating | | | | Standard Compliance | IEC 6016908, MIL 348A | | Temperature Range | -22 to 185°F (-30 to 85°C) | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 1.6 x 1.5 x 1.0" |
