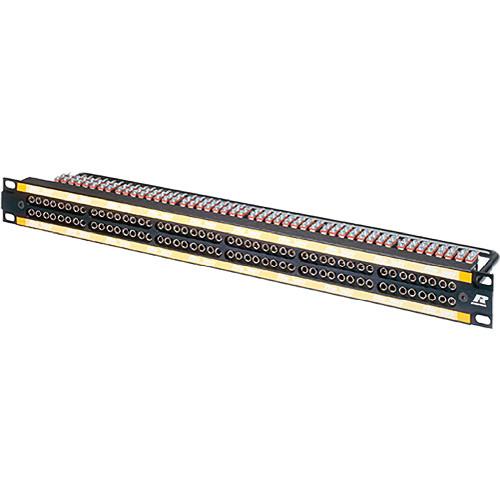

Product description The Neutrik MA96-1O Bantam Patch Black Front Panel features a 12 x 8 grid of stereo jacks, and has extra rugged jack sockets that allow for customized normalling. - Robust designed patch panel to accept standard 4.4mm Bantam jack connectors acc. MIL-P-642/13
- Fitted with 96 die-cast jack sockets
- Constructed from rigid aluminum extrusion which includes 2 integral slots for designation strips
- 96 channels grouped in two rows 12 x 8 stereo jacks
In the Box Neutrik MA96-1O Bantam Patch Black Front Panel 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik MA96-1O Bantam Patch Black Front Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik MA96-1O Specs | | | Connection Type | Patch panel | | | | Signal Type | AES/EBU Signals (digital) | | Capacitance | ≤ 24 mΩ (inner) | | Comment | < 16 | | Dielectric Strength | 0.5 kVdc | | Frequency Range | DC to > 50 MHz | | Insulation Resistance | > 1 GΩ @ 500 VDC | | Channel Separation | > 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated | | Power | Handles Phantom: Yes | | | | Insertion Force | < 25 N | | Withdrawal Force | >10 N | | Lifetime | > 20,000 mating cycles | | Locking Device | Retention spring | | | | Contacts | Pallatium plated (Switch contacts) | | Shell | Diecast alloy (Jacks) | | Shell Plating | Black front panel | | Front Panel | Anodised Al | | Material | Lacing Bar: Powder coated steel | | | | Temperature Range | -22 to 176° F (-30 to 80°C) | | | | Plug | 0.173'' (4.4mm) Bantam plug acc. MIL-P-642/13 | | Depth | 4.33'' (11 cm) | | Dimensions | 19'' x 1U (482 x 44mm) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 20.4 x 5.1 x 2.3" |
