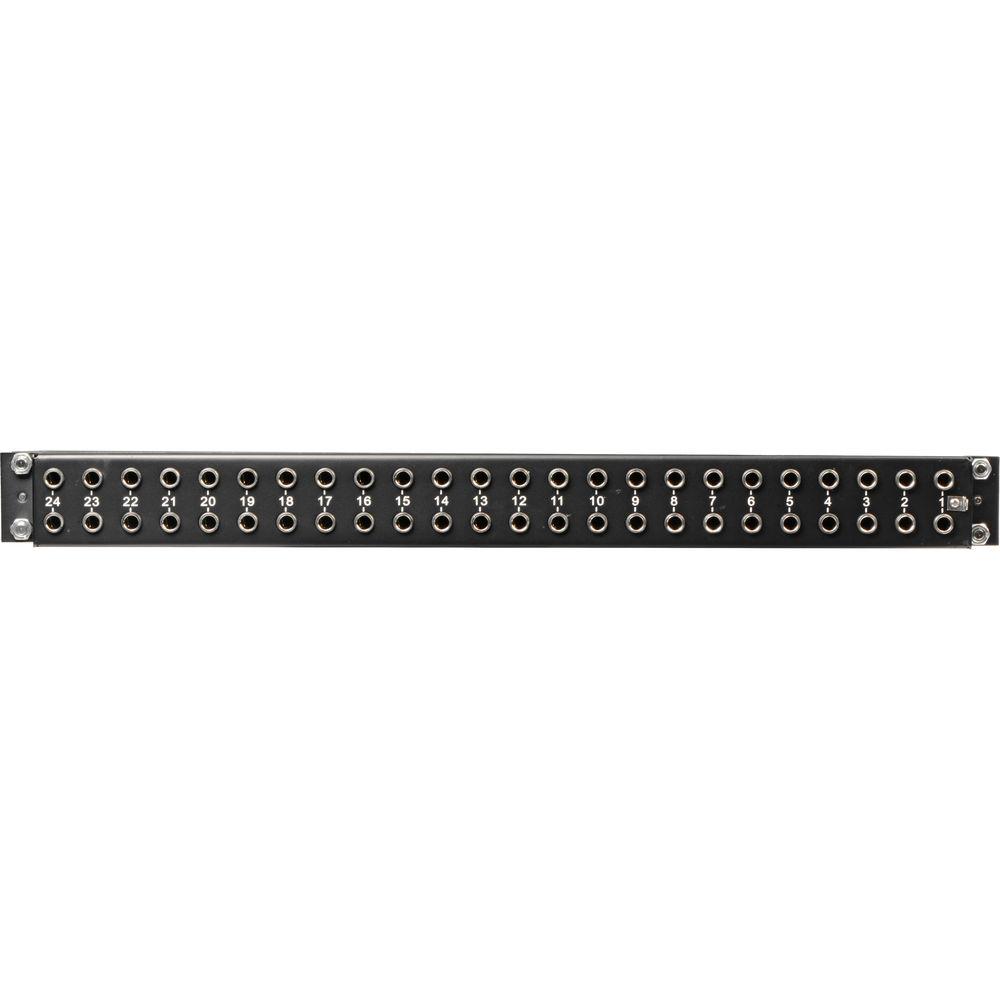

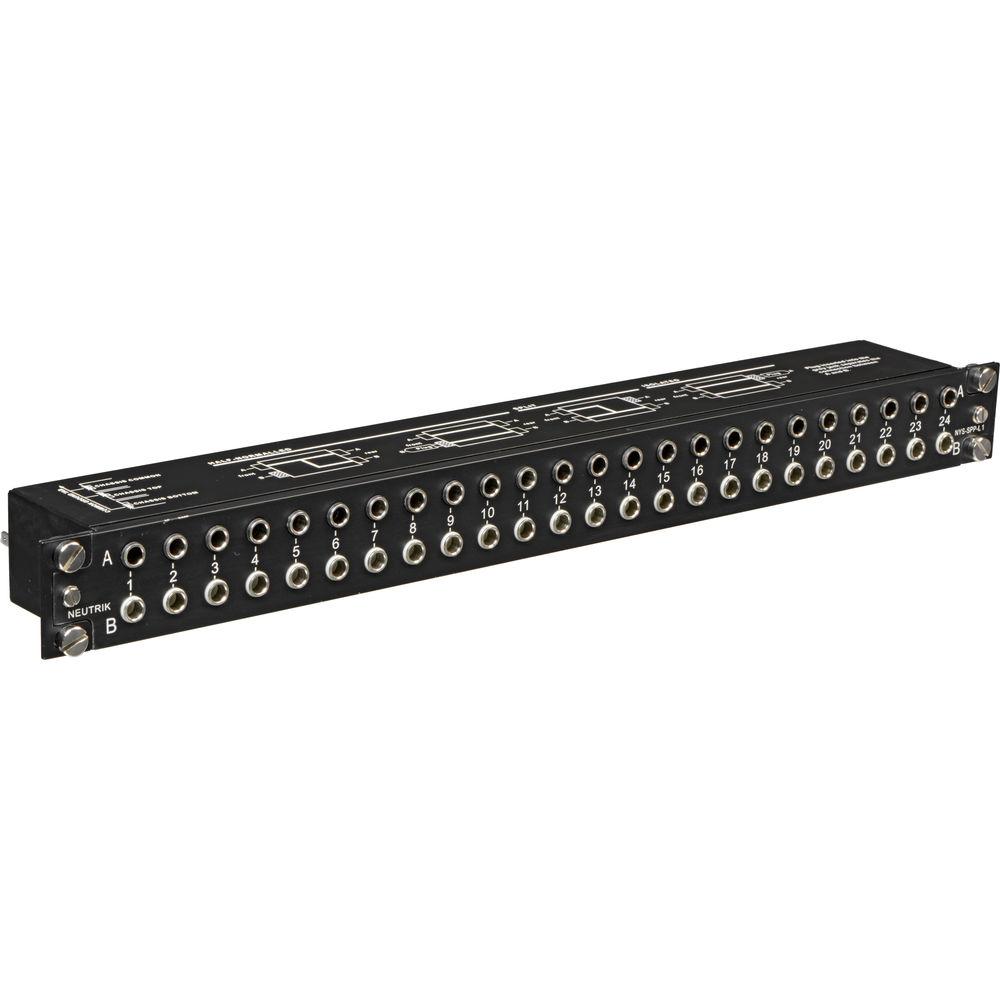

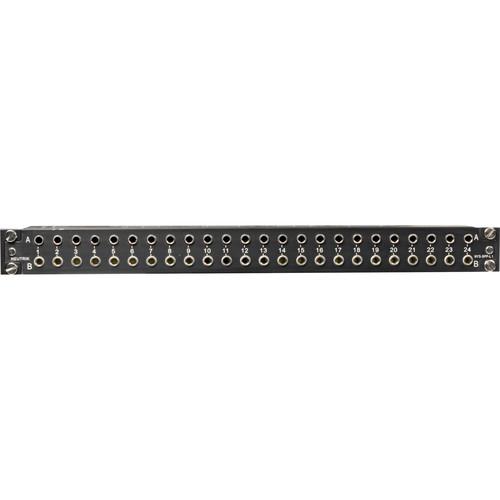

Product description The Neutrik Modular 48-Point 1/4" TRS Balanced Patch Bay is a single-unit 19" rack mountable patch bay in a reinforced metal housing. The patch bay has 48 PCB channels in 24 front pairs and 24 rear pairs. Each pair can be grounded separately or in groups according to your preference by simply attaching the supplied grounding clips to the grounding pad of the corresponding channel. The PCBs are clamped without bolts or nuts between the front and back panel of the rack enclosure. The patch bay is designed with improved non-tarnishing contacts to minimize long-term wear and flippable PC boards that make it easy to reconfigure. The device features a gray-colored normalling jack that is easy to identify and connect with when wiring the unit for normalled, half-normalled, or isolated configurations. In the Box Neutrik Modular 48-Point 1/4" TRS Balanced Patch Bay Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik Modular 48-Point 1 4" TRS Balanced Patch Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NYS-SPP-L1 Specs | Connection Type | Patch Panel | | | | Signal Type | Analog | | Contact Resistance | <10 mΩ (inner) | | Comment | <10 | | Strength | Dielectric strength: 1 kVDC | | Frequency Range | DC to >50 MHz | | Insulation Resistance | >1 GΩ at 500 VDC | | Channel Separation | >100 dB at 10 kHz, 600 terminated
>40 dB at 6 MHz, 110 terminated | | Phantom Power | Can handle phantom power | | | | Insertion Force | < 20 N | | Withdrawal Force | >10 N | | Lifetime | >10,000 mating cycles | | Locking Device | Retention spring | | | | Contacts | Bronze, tin plated (switch contacts) | | Shell | ABS (jacks) | | Front Panel | Steel | | | | Temperature Range | -22 to 176 ° F (-30 to 80 ° C) | | | | Connectors | A-Gauge 1/4" plugs acc EIA RS-453 | | Channels | 2 x 24 channels, configuration half-normalled, isolated, split | | Dimensions (W x H x D) | 19.0 x 1.73 x 2.52" (482 x 44.0 x 64.0 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 21.0 x 4.7 x 3.0" |
