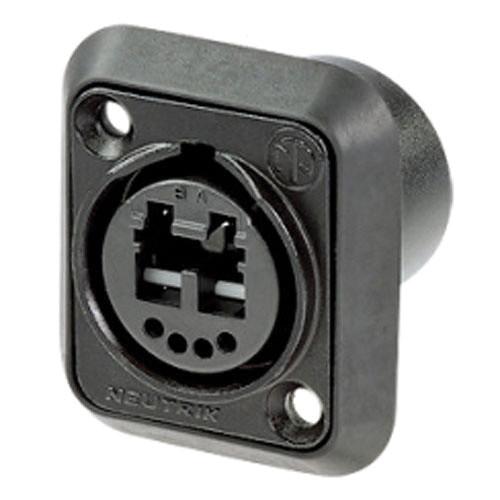

Product description The black Neutrik Multimode OpticalCon Duo Chassis Connector is installed in the front panel of your networking equipment to secure LC cables. This connector comes with black chromium plating, 4 solder contacts, and a LC-Duplex feed-through socket, which simplifies LC installations in the rear. Neutrik has built the connector with a standard D-size shell and a Push-Pull locking mechanism. It features an automatic sealing cover for maximum dust and dirt protection as well as a waterproof rating of IP65. In addition, colored sealings are included to identify the fiber mode. - Suggested OEM equipment connector due to LC front compatibility
- Designed as feed-through with automatic sealing shutter
- Shutter with silicone gasket protects optical connection from dust and dirt
- Accommodates standard LC connectors on the rear for simple installation
- Connection on the front side either by rugged OpticalCon or standard LC connector
- The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
- Water resistant according to IP65 ingress protection in mated condition
- In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52
Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik Multimode OpticalCon Duo Chassis Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NO2-4FDW-A Specs | Gender | Female | | Electrical | Contact resistance: < 7 mOhms (inner)
Dielectric strength: 1.5 kVDC
Insulation resistance: > 2 GOhms (initial)
Rated current per contact: 6 A
Rated voltage: 50 V (1) | | Mechanical | Insertion force: < 45 N
Withdrawal force: < 45 N
Lifetime: > 5000 mating cycles
Locking force: 1000 N
Locking device: Push-Pull
Mounting direction: Front
Chassis Shape: D | | Material | Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell: Zinc Diecast (ZnAl4Cu1)
Shell plating: Black Chromium
Split sleeve: Ceramics | | Environmental | Temperature range: -40 to 167°F / -40 to 75°C | | Optical | Optical connector: LC-Duplex Feed-through | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 8.9 x 5.0 x 1.0" |
