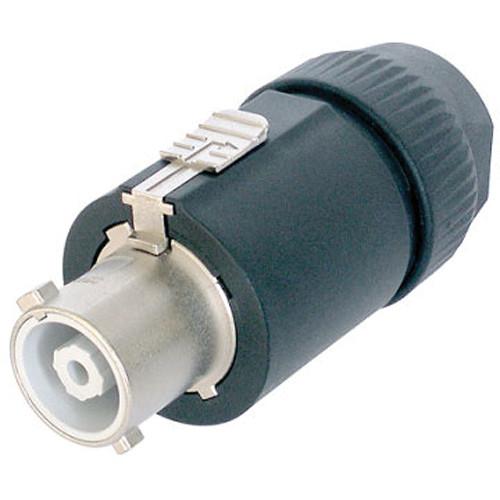

User Manual for Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NAC3FC-HC powerCON 32 A Female
- Product category: Adapter Cables & Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Adapter Cables & Connectors
|
User manual for the Neutrik NAC3FC-HC powerCON 32 A Female contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector is a robust and reliable locking single phase AC appliance cable connector for high current capacity (32A). It is meant to be a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connector has contacts for phase, neutral, and protective earth (ground) conductor, and is rated for currents up to 32A and for voltages up to 250V. - 250VAC, 32A single-phase (for ambient temperatures up to 35°C)
- Pre-mating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- For cable with OD (Outer Diameter) ranging from 0.32 to 0.79" (8 to 20mm)
- Wiring with screw-type terminals
- For 0.1 to 0.24 sq. in (2.5 to 6 sq. mm) wires (14 to 10 AWG)
- Good cable handling and protection
- VDE, UL, cUL, and JET approved
In the Box Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NAC3FC-HC Specs | | | Contact Resistance | Inner: ≤3 mΩ | | Dielectric Strength | 4 kVDC | | Insulation Resistance | Initial: >10 GΩ | | Rated Current Per Contact | 32 A (30 A for cUL) | | Rated Voltage | 250 V | | | | Cable | OD (Outer Diameter): 8 to 20 mm | | Lifetime | >1000 mating cycles | | Wire Size | 0.1 to 0.24 sq. in (2.5 to 6 sq. mm)
14 to 10 AWG | | Wiring | Screw terminals | | Locking Device | Quick lock | | | | Contact Plating | 4 µm Ag | | Contacts | Brass (CuZn39Pb3) | | Insert | Polyamide (PA 6.6 25% GR) | | Locking Element | Zinc diecast (ZnAl4Cu1) | | Shell | Polyamide (PA 6 30% GR) | | Strain Relief | Polyacetal (POM) | | | | Flammability | UL 94 HB | | Protection Class | IP 20 (mated) | | Safety | EN/IEC 61984 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -13 to 158°F (-25 to 70°C) | | Dimensions | 3.25 x 1.43" (82.5 x 36.2 mm) | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 4.8 x 3.95 x 1.45" |
