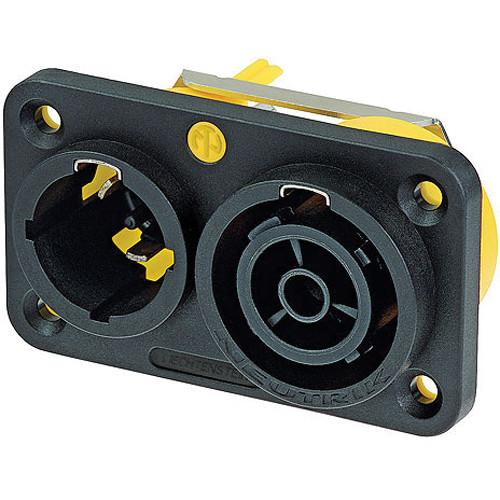

User Manual for Neutrik NAC3PX powerCON TRUE1 Inlet-Outlet Combination Click to enlarge the picture
Contents of the user manual for the Neutrik NAC3PX powerCON TRUE1 Inlet-Outlet Combination
- Product category: Adapter Cables & Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Adapter Cables & Connectors
|
User manual for the Neutrik NAC3PX powerCON TRUE1 Inlet-Outlet Combination contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description Designed for those that require a secure power connection, this NAC3PX powerCON TRUE1 Inlet-Outlet Combination from Neutrik is a powerCON inlet-outlet combination chassis which can be used for daisy-chaining equipment. It is compatible with lockable cables such as NAC3FX-W, NKPF, NAC3MX-W, and NKPM. Thanks to its breaking capacity, the unit can be connected or disconnected under load or live with no problems, helping ensure safe operation. The chassis attaches to the wall via 1/4" flab terminals, featuring a 16A single-phase connector (20A in the USA). It is made of Ul-recognized components and carries an ENEC certification according to IEC 60320, as well as an IP65 ingress rating that makes it completely dustproof and resistant to water splashes. - True mains connector with breaking capacity (CBC)
- Lockable 16A single-phase connector (USA: 20A)
- Easy and reliable twist-lock system
- ENEC certified according to IEC 60320
- IP65 ingress protection against water and dust
In the Box Neutrik NAC3PX powerCON TRUE1 Inlet-Outlet Combination Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NAC3PX powerCON TRUE1 Inlet-Outlet Combination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NAC3PX Specs | | | Contact Resistance | ≤3 mΩ | | Dielectric Strength | 4 kVDC / 2.8 kVAC | | Insulation Resistance | > 0.1 GΩ | | Contacts | Electronical: 2 + PE | | Rated Current Per Contact | 16 A rms (USA: 20 A) | | Rated Voltage | 250 VAC | | | | Lifetime | > 5000 mating cycles | | Ingress Protection Rating | IP65 | | Wire Size | 0.1 sq. in (2.5 sq. mm)
12 AWG | | Contacts | Spring copper | | Contact Plating | 2
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
