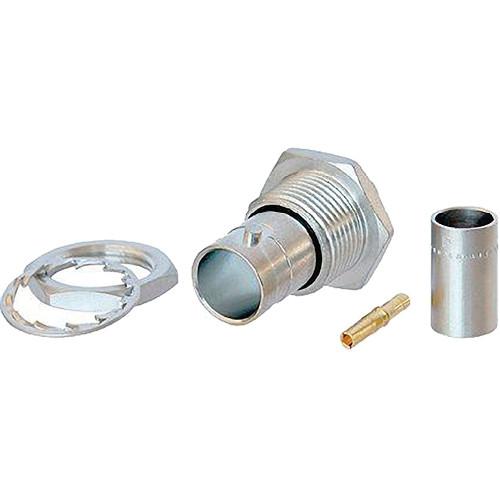

User Manual for Neutrik NBNB75ILP9 BNC Cable Jack for Panel Mount Click to enlarge the picture
Contents of the user manual for the Neutrik NBNB75ILP9 BNC Cable Jack for
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik NBNB75ILP9 BNC Cable Jack for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NBNB75ILP9 BNC Cable Jack for Panel Mount (Isolated) features a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides a highly rugged and non-abrasive connection for long-term use. - Gold-plated center contact
- True 75 Ω design meets stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Suitable Cables: Belden 1505A, Belden 8241F, Canare L4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451
In the Box Neutrik NBNB75ILP9 BNC Cable Jack for Panel Mount (Isolated) 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NBNB75ILP9 BNC Cable Jack for Panel Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NBNB75ILP9 Specs | Connection Type | BNC 75 Ω | | Gender | Male | | | | Contact Resistance | ≤3 m Ω inner (inner) | | Comment | ≤2 | | Dielectric Strength | 1.5 KVDC | | Impedance | 75 Ω | | Insulation Resistance | >5 G Ω | | Rated Voltage | 500 V | | VSWR | ≤1.050 / >32 dB up to 1 GHz
≤1.065 / >30 dB up to 2 GHz
≤1.1 / >26 d | | | | Cable O.D. | 0.15 to 0.30" (4 to 7.7 mm) | | Cable Retention | >30 N (center) | | Crimp Mass | 6.47 Hex crimp (shield) according to IEC 60803 (die designation E) | | Crimp Size | 1.6 Square crimp (pin) according to IEC 60803 (die designation 2) | | Insertion Force | <25 N | | Lifetime | >1,000 mating cycles | | Locking Device | Bayonet | | Mounting Direction | Rear | | Chassis Shape | 0.5" (12.7 mm) | | Cable | Anchoring: Jacket crimping | | | | Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) | | Insert | PTFE | | Shell | Brass (CuZn39Pb3) | | Shell Plating | Optalloy | | | | Standard Compliance | IEC 6016908, MIL 348A | | Temperature Range | -22 to 185°F (-30 to 85°C) | | Contact | Crimpability: Complies with IEC 60803 and IEC 60352-2 | | Dimensions (Ø x L) | 0.630 x 1.32" (16 x 33.6 mm) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 1.0" |
