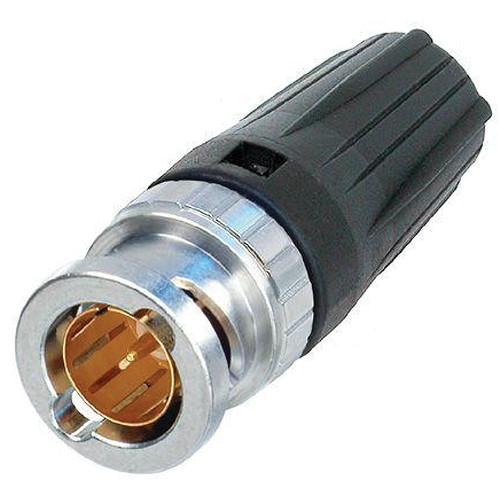

User Manual for Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector offers a true 75 Ω design and is suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. - rearTWIST Principle locking / unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. This connector turns from the back and not the front
- True 75 Ω design meets stringent HDTV / DVD requirements
- Leading Area: Avoids tilting due to side forces to protect contacts from deformation
- Guarantees a lifetime of minimum 1,000 mating cycles
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Good cable protection and retention
- Precise Swiss-machined brass parts for high durability
- Accessories include color-coded boots in 10 standard colors, crimp tool, and dies
- Belden 1695A and CommScope 2279V are the suitable cables (sold seperately)
In the Box Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NBNC75BQP11 rearTWIST BNC Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NBNC75BQP11 Specs | Connection Type | BNC 75 Ω | | Gender | Male | | | | Contact Resistance | ≤3 m Ω inner (inner) | | Comment | ≤2 | | Dielectric Strength | 1.5 kVDC (peak) | | Insulation Resistance | >5 G Ω | | Impedance | 75 Ω | | Rated Voltage | 500 V | | VSWR | ≤1.050 / >32 dB up to 1 GHz ≤1.065 / >30 dB up to 2 GHz ≤1.100 / >26 d | | | | Cable O.D. | 0.24" (6.3 mm) | | Cable Retention | >30 N (center) | | Crimp Mass | 6.47 Hex crimp (shield) acc. IEC 60803 (die designation E) | | Crimp Size | 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2) | | Insertion Force | <25 N | | Lifetime | >1,000 mating cycles | | Locking Device | Bayonett | | Cable | Anchoring: Jacket crimping | | | | Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) | | Insert | PTFE | | Shell | Brass (CuZn39Pb3) | | Shell Plating | Optalloy | | | | Standard Compliance | IEC 6016908, MIL 348A | | Contact | Crimpability: Complies with IEC 60803 and IEC 60352-2 | | Temperature Range | -22 to 185°F (-30 to 85°C) |
