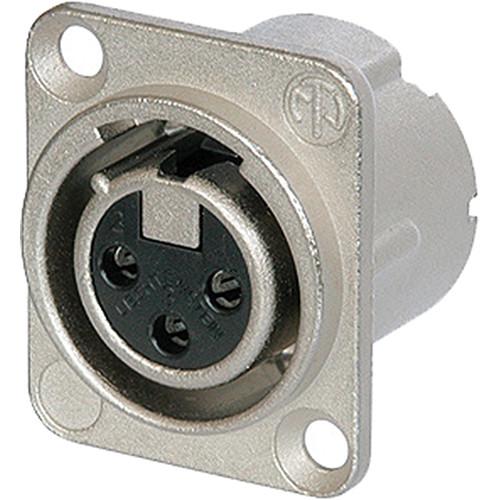

User Manual for Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin Female XLR Solder Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin Female XLR Solder Connector features an all metal housing for better protection from RF interference and shielding from electromagnetic fields. A duplex ground contact supports the integrity of the contact between the chassis and cable, and a unique cage type female contact on the third pole increases the electrical conductivity and reduces the wear on the mated male contact. The female contact also incorporates a solder barrier to prevent liquid solder from coming into contact with the mating area.
The connector includes larger solder contacts to make soldering terminations easier as well as an optional connection to join pin-1 to the chassis ground. The housing is D-style for installation and the unit is designed to work especially well with the Neutrik EMC XLR cable connector. In the Box Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin Female XLR Solder Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3FD-LX-0 - Deluxe Series Three-Pin Female XLR Solder Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3FD-LX-0 Specs | Connection Type | XLR 3-Pin | | Gender | Female | | | | Capacitance | Between contacts: ≤ 4pF | | Contact Resistance | ≤ 5mΩ | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | > 10 GΩ (initial) | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Insertion Force | ≤ 20 N | | Withdrawal Force | ≤ 20 N | | Lifetime | > 1000 mating cycles | | Locking Force | > 20 separating force N | | Wire Size | Max: 2.5 mm² | | AWG | 14 | | Wiring | Solder contacts | | Locking Device | Retention spring | | Chassis Shape | D | | Contact Plating | 2 µm Ag over 2 µm Ni | | Contacts | Bronze (CuSn6) | | Insert | Polyamide (PA 6.6 30 % GR) | | Locking Element | Steel Ck67 | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Nickel | | | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP 40 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F (-30 to +80 °C) | | | | Compliance | UL
RoHS | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 0.02" |
