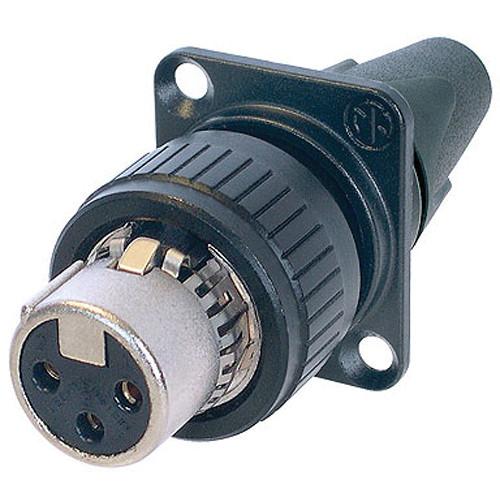

Product description The Neutrik NC3FDX-EMC-SPEC 3-Pole Female EMC-XLR Cable Connector is a specifically designed version of the XX series that provides enhanced RF screening for critical applications in live performance and recording where particular problems with radio transmission or mobile phones exist. The design ensures a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as a high-pass filter with a cut-off frequency around 10 MHz. An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.
For panel mount application of the EMC XLR this connector features a D flange to mount it into a panel. It includes the locking nut of the NC3FX-Spec for secure fastening of a gooseneck for instance. - 3-pole female XLR panel mount connector with integrated capacitive shield to shell connection to avoid RF-interference and LF-noise
- 360° shield contact ensures good shielding and chassis contact
- Circumferential ground spring provides an accurate connection to the mating shell
- Cable shield: Pin 1 connection includes EMI suppression bead to block high frequencies
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- D flange chassis for panel mount applications
- Includes the locking nut of the NC3FX-SPEC for secure fastening of a gooseneck for instance 1
Please Note: Avoid ground loops as there is no LF-shield connection to ground. close In the Box Neutrik NC3FDX-EMC-SPEC 3-Pole Female EMC-XLR Cable Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3FDX-EMC-SPEC 3-Pole Female EMC-XLR Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3FDX-EMC-SPEC Specs | | | Connection Type | XLR | | Gender | Female | | | | Capacitance | ≤4 pF | | Contact Resistance | ≤5 mΩ (inner) | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | >2 GΩ (initial) | | Rated Current Per Contact | 5 A | | Rated Voltage | 50 V | | | | Insertion Force | ≤20 N | | Withdrawal Force | ≤20 N | | Lifetime | >1000 mating cycles | | Wiring | Solder contacts | | Locking Device | Latch lock | | Chassis Shape | D | | | | Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni | | Locking Mechanism | Stahl Ck67 | | Contacts | Bronze (CuSn8) | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Black chromium | | | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP 40 | | Safety | EN/IEC 61984 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176° F (-30 to 80°C) | | Overall Dimensions (WxHxD) | 1.02 x 2.83 x 1.22" (26 x 71.94 x 31 mm) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.5 x 0.6 x 0.4" |
