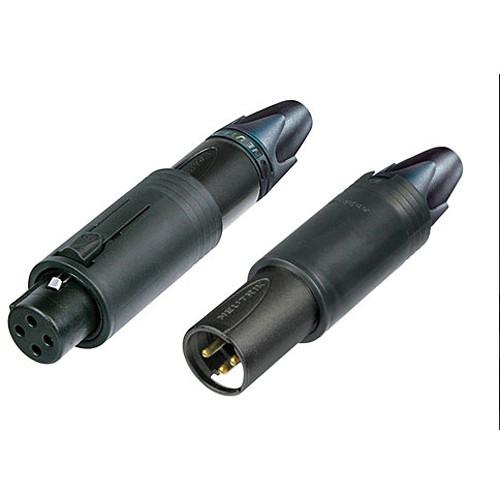

User Manual for Neutrik NC3FM-C-B convertCON Male Female Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NC3FM-C-B convertCON Male Female Connector
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NC3FM-C-B convertCON Male Female Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NC3FM-C-B convertCON Male/Female Connector is a unisex XLR cable connector. It consists of 3 pole male and female cable connectors in one housing. - 3 pole male and female cable connectors in one housing
- Easily selectable gender, converted by sliding the housing back and forth
- Substitute adapters; ideal as an emergency kit
- Features all benefits of the XLR XX series
- Branded with unique hologram; guarantees genuine and authentic Neutrik product
In the Box Neutrik NC3FM-C-B convertCON Male/Female Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3FM-C-B convertCON Male Female Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3FM-C-B Specs | | | Connection Type | XLR | | Gender | Female | | | | Capacitance | ≤4 pF | | Contact Resistance | ≤3 mΩ (inner) | | Dielectric Strength | 1,5 kVdc | | Insulation Resistance | >2GΩ (initial) | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Cable O.D. | 3.5 to 8 mm | | Insertion Force | ≤20 N | | Withdrawal Force | ≤20 N | | Lifetime | >1000 mating cycles | | Wire Size | Maximum 2.5 mm²
Maximum 14 AWG | | Wiring | Solder contacts | | Locking Device | Latch lock | | | | Boot | Polyurethan | | Contact Plating | 2 µm Au | | Locking Mechanism | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) | | Contacts | Brass (CuZn39Pb3) male | | Insert | Polyamide (PA 6.6 30% GR) | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Black | | Strain Relief | Polyacetal (POM) | | | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP 40 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F (-30 to 80°C) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.0 x 3.1 x 0.2" |
