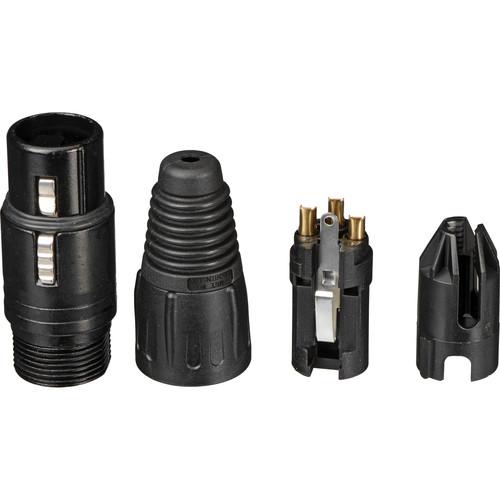

Product description The Neutrik NC3FX-B is a three-pin female XLR connector with black metal housing and gold contacts. It features a rugged design with a sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
In the Box Neutrik NC3FX-B Three-Pin Female XLR Connector- Black Limited 6-Month Warranty Table of Contents
- Boot with rubber gland gives high protection against bending stresses
Upload User Manual
Have you got an user manual for the Neutrik NC3FX-B Three-Pin Female XLR Connector- Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Neutrik NC3FX-B Specs
| Connection Type || XLR |
| Gender || Female |
| Capacitance || ≤4 pF |
| Contact Resistance || ≤3 mΩ (inner) |
| Dielectric Strength || 1.5 kVDC |
| Insulation Resistance || > 10 Gohm (initial) |
| Rated Current Per Contact || 16 A |
| Rated Voltage || 50 V |
| Cable O.D. || 3.5 to 8 mm |
| Insertion Force || ≤20 N |
| Withdrawal Force || ≤20 N |
| Lifetime || >1000 mating cycles |
| Wire Size || Maximum 2.5 mm² |
Maximum 14 AWG
| Wiring || Solder contacts |
| Locking Device || Latch lock |
| Boot || Polyurethane |
| Contact Plating || 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts || Bronze (CuSn8) |
| Locking Element || St3K32 (latch) / Ck 67 (spring) |
| Insert || Polyamide (PA 6.6 30 % GR) |
| Shell || Zinc diecast (ZnAl4Cu1) |
| Shell Plating || Black chromium |
| Strain Relief || Polyacetal (POM) |
| Sealing || Jacket: EPDM |
| Approvals || UL |
| Flammability || UL 94 HB |
| Standard Compliance || IEC 61076-2-103 |
| Protection Class || IP 65 |
| Safety || EN/IEC 61984 |
| Solderability || Complies with IEC 68-2-20 |
| Temperature Range || -22 to 176° F (-30 to 80°C) |
| Package Weight || 0.08 lb |
| Box Dimensions (LxWxH) || 6.0 x 4.0 x 0.25" |
