User Manual for Neutrik NC3FX-HD 3-Pole XLR Female Cable Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NC3FX-HD 3-Pole XLR Female Cable
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NC3FX-HD 3-Pole XLR Female Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

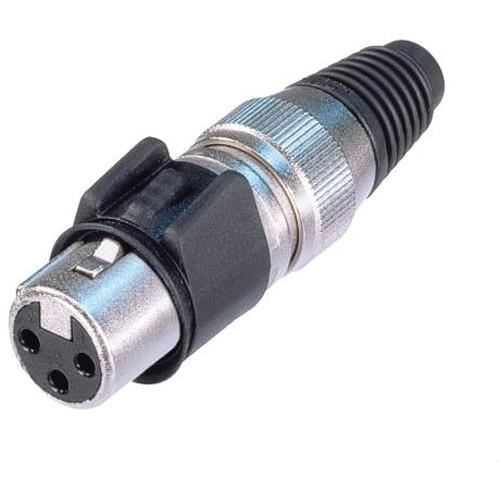

Product description The Neutrik NC3FX-HD 3-Pole XLR Female Cable Connector (Stainless Finish) is a heavy-duty XLR cable connector for outdoor use. It features an all-metal design, and is dust and water protected according to IP 65 by mating. It comes with related X-HD cable connector or MPR-HD chassis connector. - Heavy-duty cable connector for outdoor use
- NC3FX-HD mates with NC3MPR-HD chassis connector and NCMX-HD cable connector
- Dust and water protected according IP 65 in mated condition
- Chuck-type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
In the Box Neutrik NC3FX-HD 3-Pole XLR Female Cable Connector (Stainless Finish) Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3FX-HD 3-Pole XLR Female Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3FX-HD Specs | | | Connection Type | XLR | | Gender | Female | | | | Capacitance | ≤4 pF | | Contact Resistance | ≤3 mΩ (inner) | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | >2 GΩ (initial) | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Cable O.D. | 3.5 to 8 mm | | Insertion Force | ≤20 N | | Withdrawal Force | ≤20 N | | Lifetime | >1000 mating cycles | | Wire Size | Maximum 2.5 mm²
Maximum 14 AWG | | Wiring | Solder contacts | | Locking Device | Latch lock | | Chassis Shape | D | | | | Boot | Polyurethane | | Bushing | Stainless steel | | Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni | | Locking Mechanism | St3K32 (latch) / Ck 67 (spring) | | Contacts | Bronze (CuSn8) | | Insert | Polyamide (PA 6.6 30 % GR) | | Shell | Stainless Steel | | Shell Plating | Black chromium | | Strain Relief | Polyacetal (POM) | | Sealing | Jacket: EPDM | | | | Approvals | UL | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP 65 | | Safety | EN/IEC 61984 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176° F (-30 to 80°C) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 1.4 x 0.8 x 0.5" |
