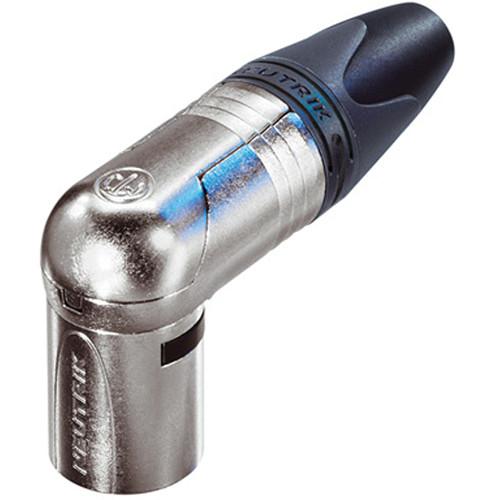

User Manual for Neutrik NC3MRX 3 Pole Right Angle XLR Male Cable Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NC3MRX 3 Pole Right Angle
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NC3MRX 3 Pole Right Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NC3MRX 3 Pole Right Angle XLR Male Cable Connector is the right angle version of the XX connector series cable. This cable connector offers features which make it more reliable, easier to assemble, and improves contact integrity as well cable strain relief. - Slim right-angled connector
- 7 selectable cable outlet positions
- Male connector with improved locking recess without "window," more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland offers high protection against cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design makes it valuable and handy
In the Box Neutrik NC3MRX 3 Pole Right Angle XLR Male Cable Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3MRX 3 Pole Right Angle XLR Male Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3MRX Specs | | | Capacitance | Between Contacts: ≤4 pF | | Contact Resistance | Inner: ≤3 mΩ | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | Initial: >2 GΩ | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Cable | OD (Outer Diameter): 0.14 x 0.32" (3.5 to 8 mm) | | Insertion Force | ≤20 N | | Withdrawal Force | ≤20 N | | Lifetime | >1,000 mating cycles | | Wire Size | 0.1 sq. in (2.5 sq. mm)
14 AWG | | Wiring | Solder contacts | | Locking Device | Latch lock | | | | Boot | Polyurethane | | Contact Plating | 2 µm Ag | | Contacts | Bronze (CuSn8) | | Insert | Polyamide (PA 6.6 30 % GR) | | Locking Element | Zinc diecast (ZnAl4Cu1) | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP40 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F (-30 to 80°C) | | Dimensions | 2.73 x 1.52 x 0.75" (71.19 x 38.5 x 19 mm) | | | | Package Weight | 0.11 lb | | Box Dimensions (LxWxH) | 3.85 x 2.95 x 0.8" |
