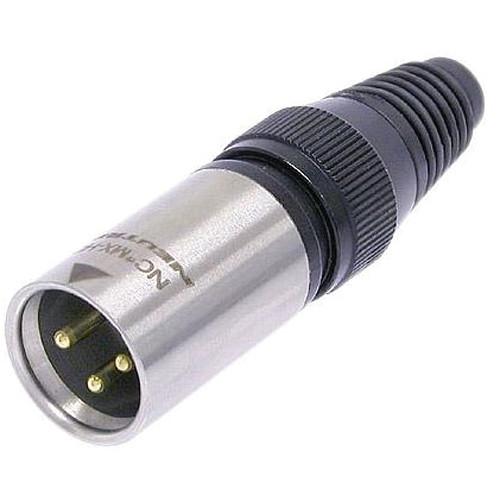

Product description The Neutrik NC3MX-HD-B Cable Connector (Black) is a 3-pole male cable connector. This heavy duty cable connector has a metal boot and stainless steel shell with standard gold contacts.
The XLR cable connector is for outdoor use. It is a metal design cable connector, which is dust and water protected according to IP65 by mating with related X-HD cable connector or MPR-HD chassis connector. - Heavy duty cable connector for outdoor use
- Male connector in stainless steel
- NC MX-HD mates with NC FX-HD cable connector
- Dust and water protected in mated condition according IP65
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland offers protection against bending stresses
In the Box Neutrik NC3MX-HD-B Cable Connector (Black) Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3MX-HD-B Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3MX-HD-B Specs | Connection Type | XLR | | Gender | Male | | | | Capacitance | ≤ 4 pF | | Contact Resistance | ≤ 3 mΩ (inner) | | Dielectric Strength | 1.5 kVdc | | Insulation Resistance | > 2 GΩ (initial) | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Cable O.D. | 0.137 to 0.31" (3.5 to 8.0 mm) | | Insertion Force | ≤ 20 N | | Withdrawal Force | ≤ 20 N | | Lifetime | > 1000 mating cycles | | Wire Size | 2.5 mm² maximum
14 AWG maximum | | Wiring | Solder contacts | | Locking Device | Latch lock | | | | Boot | Polyurethane | | Bushing | Stainless steel | | Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni | | Contacts | Brass (CuZn39Pb3) | | Insert | Polyamide (PA 6.6 30 % GR) | | Locking Element | Stainless steel | | Shell | Stainless steel | | Strain Relief | Polyacetal (POM) | | Sealing | Jacket: EPDM | | | | Approvals | UL | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP65 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F (-30 to 80 °C) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 3.0 x 1.0 x 1.0" |
