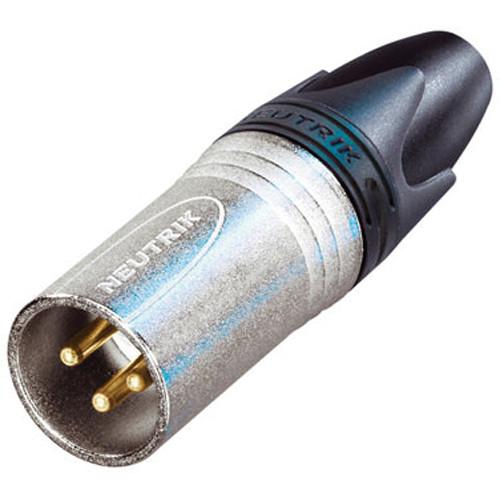

Product description Based on the , the Neutrik NC3 is a 3-pole Male XLR cable connector designed to provide enhanced RF screening. It is suitable for situations such as live performances and recording, in which problems with radio transmission or mobile-phone interference may occur. It helps reject these problematic and disruptive aspects by introducing a circular capacitor around the cable shield. This capacitor acts as a filter, cutting off signals around 10 MHz. In order to boost RF rejection even further, a 24-Ohm / 1 kHz EMI-suppression ferrite bead between Pin-1 and the cable screen provides additional filtering. -
- 3-pole XLR cable connector with integrated capacitive shield to shell connection
- Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
- Female connector with circumferential ground spring provides an accurate connection to the mating shell
- Cable-shield Pin-1 connection includes EMI-suppression bead to block high frequencies
- Avoid ground loops as there is no LF-shield connection to ground
- Rugged zinc die-cast shell
- Chuck-type strain-relief system for secure clamping of cables
- Boot with rubber gland provides high protection against bending stresses
In the Box Neutrik NC3MXX-EMC Cable Connector Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NC3MXX-EMC Cable Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NC3MXX-EMC Specs | | | Title | NC3FXX-EMC | | Connection Type | XLR male | | Gender | Female | | | | Capacitance | ≤ 4 pF (between contacts) | | Contact Resistance | ≤ 3 MOhms (inner) | | Dielectric Strength | 1.5 kVdc | | Insulation Resistance | > 2 GOhms (initial) | | Rated Current Per Contact | 5 A | | Rated Voltage | 50 V | | | | Cable O.D. | 0.137 to 0.31" (3.5 to 8.0 mm) | | Insertion Force | < 50 N | | Withdrawal Force | < 20 N | | Lifetime | > 1,000 mating cycles | | Maximum Wire Size | 0.75 mm², 20 AWG | | Wiring | Solder contacts | | Locking Device | Latch lock | | | | Boot | Polyurethane | | Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni | | Contacts | Bronze (CuSn8) | | Insert | Polyamide (PA 6.6 30 % GR) | | Locking Element | Zinc die-cast (ZnAl4Cu1) / Ck 67 (spring) | | Shell | Zinc die-cast (ZnAl4Cu1) | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | Circumferential Ground Spring | Bronze (CuSn6), Ni plated | | | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP40 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F (-30 to 80 °C) | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 5.0 x 2.0 x 1.0" |
