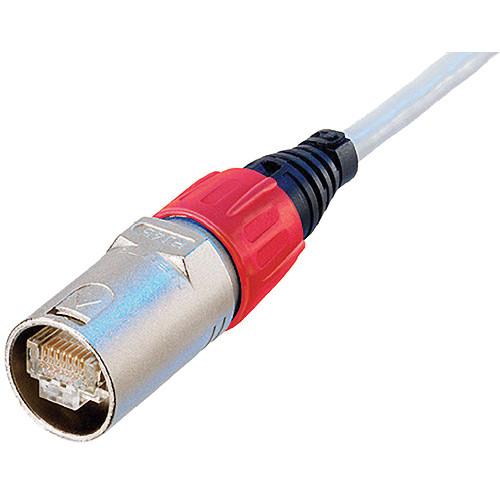

User Manual for Neutrik NE8MC RJ45 Cable Connector Carrier Click to enlarge the picture
Contents of the user manual for the Neutrik NE8MC RJ45 Cable Connector Carrier
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik NE8MC RJ45 Cable Connector Carrier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NE8MC RJ45 Cable Connector Carrier is designed for preassembled RJ45 plugs that consist of shell, fixing disk, chuck, bushing, and boot. It is packed with 2 cable protection elements for a cable diameter either up to 0.19” (5mm) or 0.31” (8mm). The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. Note: Cable connector carrier does not include an RJ45 plug. - RJ45 system for harsh and demanding environment
- Cable connector carrier accepts most common RJ45 plugs
- Rugged die-cast shell and unique chuck-type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
- Allows assembly of preassembled conventional RJ45 cables
In the Box Neutrik NE8MC RJ45 Cable Connector Carrier 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NE8MC RJ45 Cable Connector Carrier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NE8MC Specs | | | Cable O.D. | 0.31" (8 mm) maximum | | Insertion Force | <20 N | | Withdrawal Force | <20 N | | Lifetime | >1,000 mating cycles | | | | Boot | Polyamide (PA 6) | | Shell | Zinc die-cast (ZnAl4Cu1) | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | | | Temperature Range | -22 to 185°F (-30 to 85°C) | | Dimensions (Ø x L) | 0.74 x 2.67" (19 x 68 mm) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 1.0" | Note: Cable connectors do not include the RJ45 plug. The RJ45 cable assembly must be provided by the end-user.
