User Manual for Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Set Click to enlarge the picture
Contents of the user manual for the Neutrik NE8MC6-MO etherCON CAT6 Cable Connector
- Product category: Video Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Video Connectors
|
User manual for the Neutrik NE8MC6-MO etherCON CAT6 Cable Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

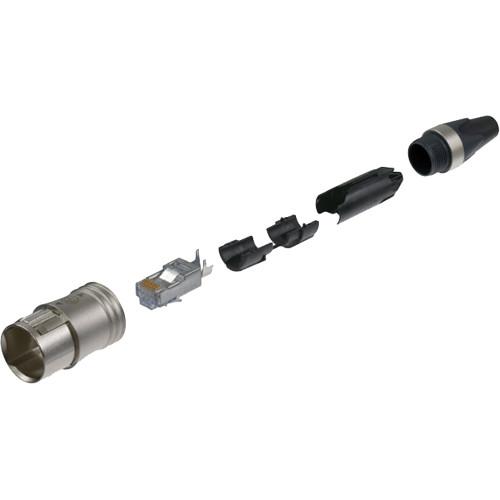

Product description The Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Set includes a cable plug carrier offering a robust metal shell with a Push-Pull locking system, proven Neutrik chuck-type strain relief, and a CAT6 RJ45 plug.
The set can accommodate STP und UTP cables with an O.D ranging from 0.21 to 0.25” (5.5 to 6.5mm) and a gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water protected according to IP65. - Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173
- CAT6 compliant data rate up to 10 GBit/s
- Dust and waterproof in mated condition (IP65 rated)
- Shielded system high noise immunity and EMI protection
- Push-Pull mating for securing and proven locking system
- Unique Neutrik chuck-type strain relief
- Color coding with accessory BXX to guarantee IP65 protection; boot has to be mounted with the metal ring of the NE8MC6-MO connector
In the Box Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Set 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NE8MC6-MO Specs | Connection Type | etherCON | | Gender | Male | | | | Cable O.D. | 0.21 to 0.25" (5.5 to 6.5 mm) | | Insertion Force | <40 N | | Withdrawal Force | <20 N | | Lifetime | >1,000 mating cycles | | Wire Size | 28 to 22 AWG | | Locking Device | Push-Pull | | | | Boot | Polyurethane | | Bushing | Polyamide (PA 6 15% GR) | | Contact Plating | 0.7 µm Au over 1.2 µm Ni plating | | Contacts | Bronze (CuSn8) | | Insert | Polyamide (PA 6.6 30% GR) | | Shell | Zinc die-cast (ZnAl4Cu1) | | Shell Plating | Nickel | | Strain Relief | Polyacetal (POM) | | Plug | CAT6: Molex part number 44915-0021 | | | | Flammability | UL 94 HB | | Standard Compliance | CAT6, Class E according to TIA/EIA 586B, IEC11801, EN 50173 | | Protection Class | IP65 | | Temperature Range | 14 to 140°F (-10 to 60°C) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 3.2 x 1.6 x 0.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
