User Manual for Neutrik NKTT12-YE Patch Cable with NP3TT-1 Plugs Click to enlarge the picture
Contents of the user manual for the Neutrik NKTT12-YE Patch Cable with NP3TT-1
- Product category: Bantam (TT) Cables Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Bantam (TT) Cables
|
User manual for the Neutrik NKTT12-YE Patch Cable with NP3TT-1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

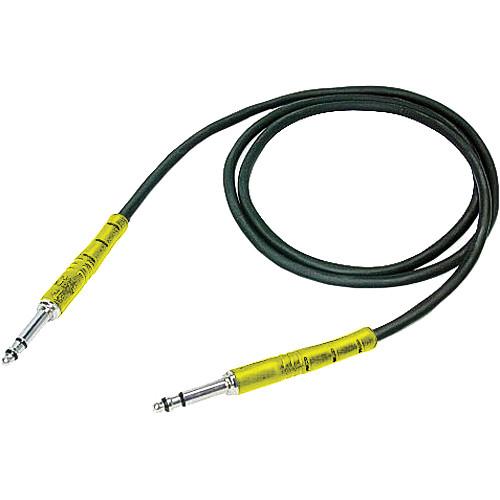

Product description The Neutrik NKTT12-YE Patch Cable with NP3TT-1 Plugs (47.24" / 120 cm) is designed for use with the Bantam TT patch panels. The plug features a 0.173" (4.4 mm) tiny bantam-type telephone plug, solder termination for T + R, crimp termination for S, HEX crimp cable strain relief, yellow plastic housing, and nickel contacts. - Designed for pro audio applications
- Long-lasting and dependable
- Standard HEX crimp cable clamp for shield termination and cable retention
- 47.24" (120 cm) cable with yellow plug sleeve
In the Box Neutrik NKTT12-YE Patch Cable with NP3TT-1 Plugs (47.24" / 120 cm) 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NKTT12-YE Patch Cable with NP3TT-1 Plugs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NKTT-12YE Specs | Connection Type | Plug | | Gender | Male | | | | Contact Resistance | Depends on mating connector mΩ (inner) | | Dielectric Strength | 1 kVDC | | Insulation Resistance | >2 GΩ (initial) | | Rated Current Per Contact | Depends on mating connector A | | Rated Voltage | 50 V | | | | Cable O.D. | 0.157 to 0.188" (4 to 4.8 mm) | | Crimp Mass | 5 HEX crimp (shield) | | Lifetime | >1,000 mating cycles | | Wire Size | 0.01 sq. in (0.25 mm²), 24 AWG | | Wiring | Solder contacts | | | | Bushing | Polyacetal (POM) + PU | | Contacts | Bronze (CuSn6) (Tip) | | Contact Plating | 2 µm Ni (Su) | | Insert | Polyamide (PA 6.6 30 % GR) | | Shell | Brass (CuZn39Pb3) | | Shell Plating | 2 µm Ni (Su) + PA 6 30% GR (black) | | | | Standard Compliance | MIL-P-642/13 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -4 to 149° F (-20 to 65° C) | | Dimensions (Ø x L) | Plug: 0.173 x 2.598" (4.4 x 66 mm) | | Cable Length | 47.24" (120 cm) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.0 x 3.0 x 1.0" |
