User Manual for Neutrik NL2FX - 2-Pole Female speakON Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NL2FX - 2-Pole Female speakON
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NL2FX - 2-Pole Female speakON contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

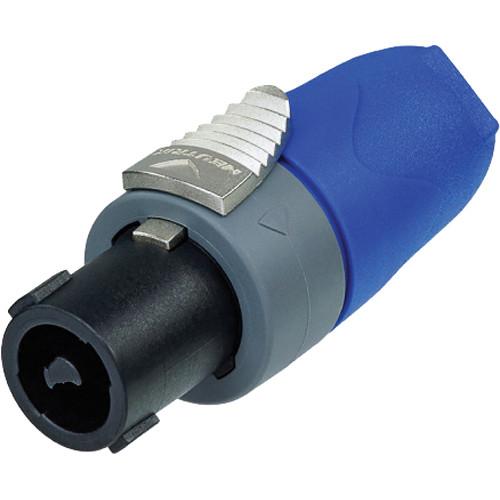

Product description The NL2FX from Neutrik is a two pole female speakON loudspeaker connector for cables that are 6 to 10mm in diameter. This industry-standard loudspeaker connector offers robust cable connection with a reliable locking system.
It features solid contacts with screw-type terminals and includes stranded wire protection which also offers solder termination. The connector has been designed to operate in the high current, inductive load environment of commercial loudspeakers. - Current rating 40A continuous, 50A audio signal with 50% duty cycle
- Consists only of three parts, easy to assemble
- High impact materials - long-lasting and reliable
- Easy and extremely precise locking system "Quick Lock"
- One piece strain relief, chuck for 6 to 10mm cable OD
- Mates with 4-pole chassis connector as well and makes contact with +1/-1
In the Box Neutrik NL2FX - 2-Pole Female speakON Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NL2FX - 2-Pole Female speakON Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NL2FX Specs | Type | Female speakON | | Electrical | Contact Resistance: <2mΩ (inner) (after lifetime)
Dielectric Strength: 4 kVDC (peak)
Insulation Resistance: >1GΩ (after damp heat)
Rated Current per Contact: 40 A RMS continuous
Rated Current per Contact: 50 A audio signal, duty cycle 50%
Rated Voltage: 250 V (insulation) | | Mechanical | Cable OD: 6 to 10 mm
Cable Retention: >220 N (subject to cable OD and material)
Lifetime: >5,000 mating cycles
Wire Size: 1.5 to 4 mm²
Wire Size: 16 to 12 AWG
Wiring: Screw type terminals or soldering
Locking Device: Quick Lock (latch) | | Material | Contact Plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20% GR
Locking Element: Zinc die cast (ZnAl4Cu1)
Shell: PBTP 20% GR
Strain Relief: Polyacetal (POM) | | Environmental | Flammability: UL 94 HB
Soldering: Complies with IEC 68-2-20
Temperature Range: -22 to 176°F (-30 to +80°C) | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 0.9" |
