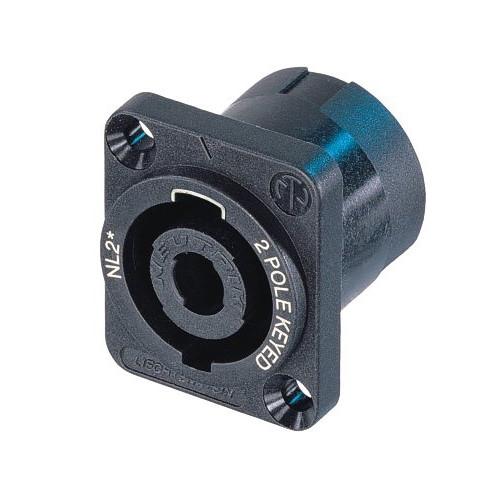

User Manual for Neutrik NL2MP SpeakON 2-Pole Male Chassis Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NL2MP SpeakON 2-Pole Male Chassis
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NL2MP SpeakON 2-Pole Male Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The NL2MP from Neutrik is a 2-pole speakON panel-mount connector intended for use with loudspeaker and amplifier interconnections. It features a metal locking system, and only makes contact once fully clicked into place. This receptacle has a current rating of 30A, and features glass-reinforced materials to maintain durability over time. This particular model offers a black D-sized flange, as well as countersunk through-holes and 3/16" flat tabs. Its design, when fully locked, is airtight. Note: Please note: This unit will not intermingle with a 4-pole cable connector. - Robust metal housing designed for harsh and demanding environments
- Suitable for touring applications
- Current rating 40A continuous, duty cycle 50%
- Uses precise Quick Lock system
- Mates with almost all speakON products
In the Box Neutrik NL2MP SpeakON 2-Pole Male Chassis Connector Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NL2MP SpeakON 2-Pole Male Chassis Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NL2MP Specs | | | Connection Type | speakON | | Gender | Male | | | | Contact Resistance | <3 MOhms (after lifetime) | | Dielectric Strength | 4 kVDC (peak) | | Insulation Resistance | > 1 GOhm (after dampheat) | | Rated Current Per Contact | 30 A RMS, continuous
40 A audio signal, duty cycle 50% | | Rated Voltage | 250 V (insulation) speakON is not to be used as an AC mains or power supply connector. | | | | Lifetime | > 5,000 mating cycles | | Locking Device | Quick lock | | Chassis Shape | D | | Layout | Standard hole position, thru holes | | | | Contact Plating | 4 µm Ag | | Contacts | Bronze (CuSn6) | | Shell | Polyamide (PA 6 30% GR), black | | | | Temperature Range | 86 to 176°F / 30 to 80°C | | Dimensions (W x H x D) | Not specified by manufacturer | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 3.2 x 1.0 x 0.4" |
