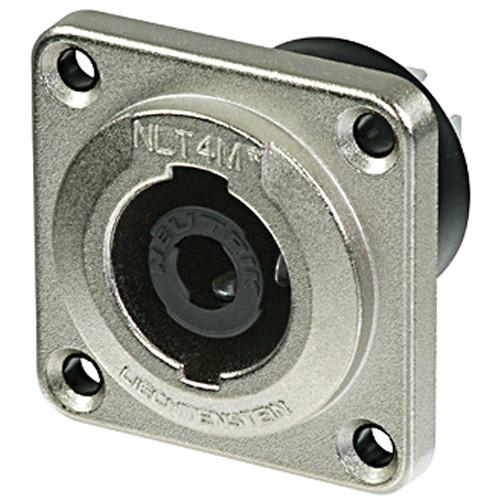

User Manual for Neutrik NLT4MP SpeakON 4-Pole Male Chassis Connector Click to enlarge the picture
Contents of the user manual for the Neutrik NLT4MP SpeakON 4-Pole Male Chassis
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik NLT4MP SpeakON 4-Pole Male Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description Designed for amplifier and loudspeaker interconnections, the Neutrik NLT4MP SpeakON 4-Pole Male Chassis Connector features a durable all-metal housing, and as such is suitable for touring applications. Its weatherproof built-in gasket meets the IP54 protection standards when connected, rendering the connector appropriate for harsh, demanding environments. Utilizing a quick-lock system, it will mate with all available 4-pole speakON products. Additionally, this connector features UL-recognized components, ensuring durability. Note: SpeakON is not to be used as an AC mains or power supply connector. - Robust metal housing designed for harsh and demanding environments
- Suitable for touring applications
- Current rating 40A continuous, 50A audio with 50% duty cycle
- Uses precise quick-lock system
- Mates with most SpeakON products
- Weatherproof built-in gasket meets IP54 protection class (4-pole)
- UL recognized components, CSA listed
In the Box Neutrik NLT4MP SpeakON 4-Pole Male Chassis Connector Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NLT4MP SpeakON 4-Pole Male Chassis Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NLT4MP Specs | Connection Type | SpeakON | | Gender | Male | | | | Contact Resistance | ≤ 2 MOhms inner (after lifetime) | | Dielectric Strength | 4 kV DC (peak) | | Insulation Resistance | > 10 GOhms (after damp heat) | | Rated Current Per Contact | 40 A rms continuous
50 A audio signal, duty cycle 50% | | Rated Voltage | 250 V (Insulation) | | | | Lifetime | > 5000 mating cycles | | Locking Device | Quick lock | | Chassis Shape | Square G-size flange | | Layout | 4 x Thru holes | | Contact Plating | 4 µm (Ag) | | Contacts | Spring copper | | Insert | Polyamide (PA 6 30 % GR) | | Shell | Zinc die cast (ZnAl4Cu1) Ni | | | | Flammability | UL 94 HB | | Protection Class | IP54 (mated condition) | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F / -30 to 80°C | | Dimensions (W x H x D) | 1.5 x 1.5 x 1.5" / 37 x 38 x 38 mm | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 1.5 x 1.5 x 1.5" |
