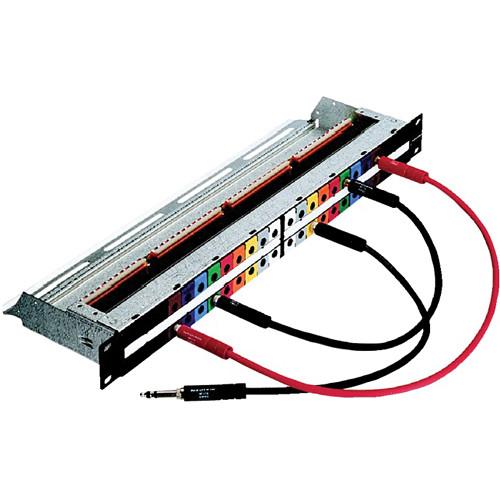

User Manual for Neutrik NPP-TB 48 B-Gauge Patch Panel Click to enlarge the picture
Contents of the user manual for the Neutrik NPP-TB 48 B-Gauge Patch Panel
- Product category: Audio Patchbays Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Patchbays
|
User manual for the Neutrik NPP-TB 48 B-Gauge Patch Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description The Neutrik NPP-TB 48 B-Gauge Patch Panel is equipped with long-life, high-quality, gold-plated NJ6TB-V jacks for BPO-/MIL-style plugs. This patch panel is easily programmable for six switching configurations, and offers a flexible grounding system. It is designed for the 19" (48.26 cm) rack mount, and comes in a galvanized metal housing. It features a built-in cable bar on the rear for securing the wires. On the front side, there is an additional lettering area for each channel pair with a marking strip, and individual snap-on color coding plates. The patch panel accommodates stranded wires up to 20 (0.5 mm²) AWG and solid wires up to 18 (0.75 mm²) AWG. - 2 x 24 Neutrik NJ6TB-V long frame 1/4" TRS jacks according to BPO 316 / MIL-P-641/3
- Wire O.D: 0.003 to 0.02 square inches (0.08 to 0.5 mm²)
- Robust and compact galvanized metal housing
- Channel identification through colored snap-on coding tabs
- Six programmable switching configurations with the aid of jumpers
- Qualified for analog and digital signals according to the AES3 standard
- 48 kHz sampling frequency
- Durable, high-quality gold-plated Neutrik jacks
- Flexible grounding system
- Spring-loaded push terminals
- Rear terminations include solderless terminal blocks
- Removable central marking strip
In the Box Neutrik NPP-TB 48 B-Gauge Patch Panel 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik NPP-TB 48 B-Gauge Patch Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NPP-TB Specs | Connection Type | Patch Panel | | | | Contact Resistance | < 10 mΩ | | Contact Resistance | Switch: < 15 mΩ | | Insulation Resistance | > 1 GΩ @ 500 VDC | | Dielectric Strength | > 500 VAC
> 1,000 VDC | | Frequency Range | DC to > 50 MHz | | Channel Separation | > 100 dB @ 10 kHz, 600 Ω terminated
> 40 dB @ 6 MHz, 110 Ω terminated | | Signals | AES / EBU signals (digital) | | Phantom Power | Yes | | | | Lifetime | > 5,000 cycles | | Insertion Force | < 10 N | | Withdrawal Force | > 10 N | | Plug | Mating: B-Gauge 1/4" plug
BPO316/MIL-P-642/2 | | Locking Device | Retention spring | | | | Housing | Steel | | Front Panel | Pocan B 3225 | | Material | Lacing bar: Steel | | Housing | Jack: PA 6.6 30% GR | | Contacts | Jack: CuSn6, Au plated | | Contact Plating | Switch: Au plated | | Temperature Range | -22 to 176° F (-30 to 80° C) | | Dimensions | Patch box: 6.6 x 3 x 3" (168 x 77 x 77 mm) | | Depth | 5.5" (140 mm) | | Dimensions | 19" x 1U (482 x 44 mm) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 21.0 x 9.9 x 2.8" |
